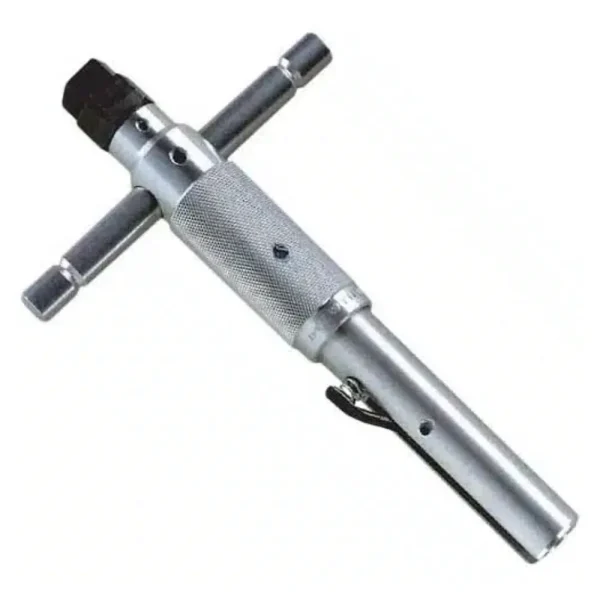

Ripley PIT-1T Series Load Break Elbow Probe Insertion Tool (15-34.5 kV)
The Ripley PIT-1T Series is designed for fast and efficient insertion of a load break probe into a small interface 15 to 34.5 kV elbow. This tool ensures precise torque application while preventing probe damage or contamination.
Key Features:
- Reliable Torque Control: Applies the correct 125 in-lb torque without risk of breakage or contamination.
- Adaptable Handle Design: Adjustable and removable handle converts into a full “T” handle or moment arm for use in confined spaces.
- Comprehensive Tool Setup: Includes a 1″ (25 mm) steel drive, an adjustable wrench, a 3/8″ (10 mm) square drive socket, and a standard “Penta” head.
- Effortless Removal: Easily reverses tightening action to remove the load break probe.
Compatibility:
- Torque: 125 in-lb
- Min. Voltage: 15 kV
- Max. Voltage: 34.5 kV
- Compatibility: All Load Break Elbows
Specifications
- Patent Number(s): U.S. Patent No. 5,605,082
- Length: 9.375″ (238.1 mm)
- Weight: 1 lb 4 oz (568 g)
