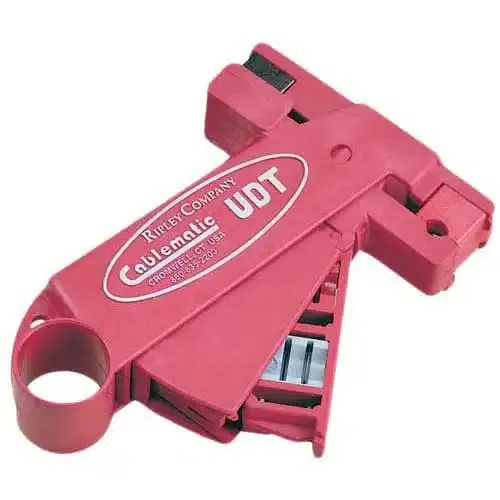

Ripley Universal Drop Cable Trimmer – UDT Series

Ripley Universal Drop Cable Trimmer – UDT Series

The Ripley UDT Series Universal Drop Cable Trimmer is a compact, one-step tool designed for precise cable preparation. With interchangeable blade cassettes, it performs industry-standard preparations, exposing 1/4” of the braid on 59, 6, 7, and 11 Series Drop Cable. The center conductor is trimmed to a 1/4” length on all cables. Each blade cassette is color-coded for easy identification based on cable size and braid exposure length. Additionally, the tool includes a storage compartment for two spare cassettes. The 59/6 cassettes work with 59 or 6 Series Drop Cable constructions, while the 7 cassettes are suited for 7 Series Drop Cable constructions.

• Compact, one-step tool for 59, 6, N48, 7, and 11 drop cable types
• Interchangeable blade cassettes expose 5/16″ (7.93 mm) conductor & remove 1/4″ (6.35 mm) jacket
• Color-coded cassettes for easy cable size and braid exposure identification
• Built-in storage for two additional cassettes within the handle
• Durable polymer body with built-in strip stops for reliable use

Compatibility:

• Cable Access: Mid-Span, End
• Conductor Exposure: 5/16ʺ (7.93 mm)
• Jacket Removal Length: 1/4ʺ (6.35 mm)

Specifications:

• Material: Impact-Resistant Polymer
• Patent Number(s): U.S. Patent No. 5,716,132
• Length: 5.5″ (139.7 mm)
• Weight: 4.5 oz (127 g)

35221

• Cable Type: 59/6, 7, 11, 11Q, N48

35238

• Cable Type: 7, 11, 11Q, N48
