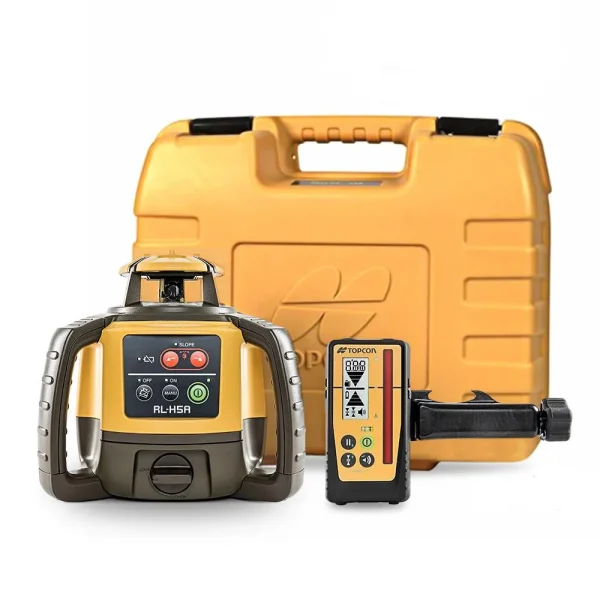

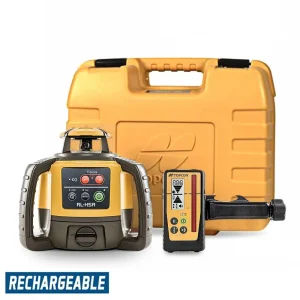

RL-H5A Self-Leveling Laser PS.RB Kit with LS-100D Receiver and Rechargeable Batteries- 1021200-08

• Self-Leveling Horizontal Beam
• Long Range Operation 2,600 ft diameter
• High Horizontal Accuracy 1/16-inch @ 100-feet
• Simple, intuitive manual slope capability
• Tough IP66 Rating – Dust and Water Rating
• Self-Leveling Range ± 5 degrees
• Long Rechargeable battery life – 60 hours
• Back-Up Alkaline battery life – 100 hours
• Out of Level Notification

• RL-H5A Horizontal Laser

• LS-100D Laser Receiver Sensor 1011989-01
• Receiver Rod Clamp Holder 100 (1011990-01)
• (4) D-Cell NiMH Rechargeable Batteries BT-79Q 1025029-01

• Rechargeable Battery Holder 1024993-01
• AC Adapter / Charger 1024944-02

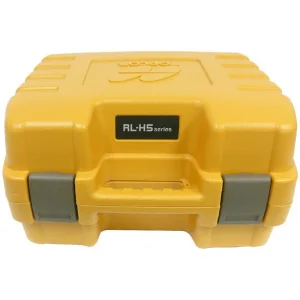

• Rugged Hard Shell Carrying Case
• 5-Year Warranty Guarantee

MULTI-PURPOSE LASER
Grading, excavating and general construction projects are perfect applications for the RL-H5A. With the added “Slope Matching” feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the Topcon RL-H5A a great match with any machine mounted laser sensor.

EASY TO USE
With electronic self-leveling you press the power button and go right to work in seconds. If the TOPCON RL-H5A gets disturbed on the job it re-levels itself automatically. The Self-Leveling motors are accurate to ± 10 arc seconds.

LONG RANGE OPERATION
Need to shoot elevations up to 1,300 feet from your laser? No problem, this TOPCON RL-H5A has a workable power and range of 2,600 feet diameter on the jobsite.

ALL WEATHER DEPENDABILITY
With the IP66 rating, the TOPCON RL-H5A is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.

5-YEAR GUARANTEE
The TOPCON RL-H5A Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.

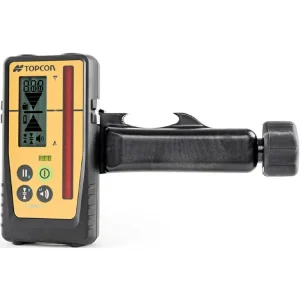

Versatile and designed for maximum user convenience, the LS-100D features a digital readout to confidently deliver elevation and vertical alignment control on demand.

It features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures. The large and bright LCD displays (front and rear) feature 9-channels of grade information and digitally show the distance to on-grade. By pressing the Hold button, the display is locked so the user can conveniently read the the results. For added versatility, three colored LED’s and a strong magnet mount are embedded for vertical operation, ideal for steal erection or operator grade checking while excavating.

To assist in monitoring the Topcon rotating laser, alert icons appear on the LCD if the instrument is disturbed (HI Alert) or when the laser battery is low.
