Rubi Cyclone Leveling System 1/16″ (1,5mm) Kit
The perfect starter kit with everything you need to eliminate lippage during tile installation. Rubi’s new leveling system is designed to avoid lippage during the laying of ceramic tile in both floor and wall tiles.
Features
- Works with Rubi Cyclone Bases as well as other threaded base leveling systems
- Recommended for tiles 12″ x 12″ and larger
- It is especially recommended to improve finishes when working with large-format tiles
- Easy, fast, and intuitive to use, as no prior user experience is necessary
- No tools required – spin the screw cap into place and hand tighten
- Spacer bases fit below tiles, and then the cap is screwed
- Guaranteed flatness and regularity of the laying surface
- Recommended for tiles thickness from 3 – 18 mm (1/8″ – <3/4″)
- Simple impact removal system (by kicking or mallet) – Always in the direction of the grout joint
Technical Data
- Use on most tiles and stone from 3 – 18 mm (1/8″ – <3/4″) thick
- Minimum joint size: 1/16″ (1,5mm)
- Recommended for tiles 12″ x 12″ and larger

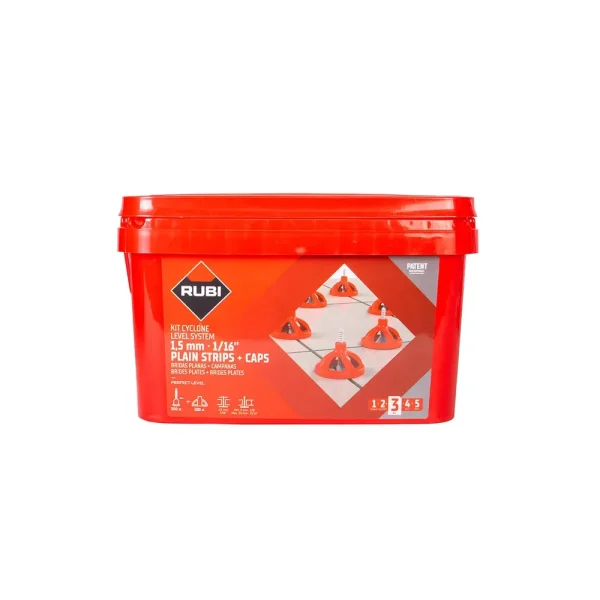

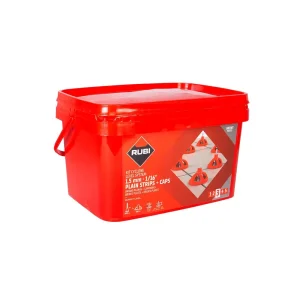

What’s Included
- 300 piece 1/16″ (1,5mm) Flat Bases
- 100-piece Cyclone Caps
How to use
- STEP 1: Place spacer bases under the tile once the thin-set has been applied

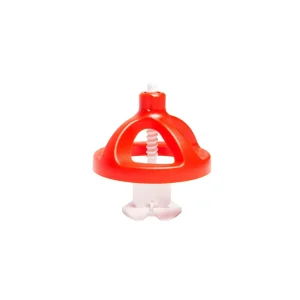

- STEP 2: Apply Cap. The cap will align with the top of the base, allowing for easy threading
- STEP 3: Spin the cap onto the base, and once the cap makes contact with the tile, turn the cap until the adjacent tiles are level; no need to over-tighten
- STEP 4: Break off caps and bases after the thin-set has cured. It’s essential to break the cyclone caps by kicking them or hitting them with a rubber mallet in the direction of the grout joint
- STEP 5: Remove the broken bases from caps by unscrewing them (caps are reusable and will last multiple jobs with proper installation and removal)
