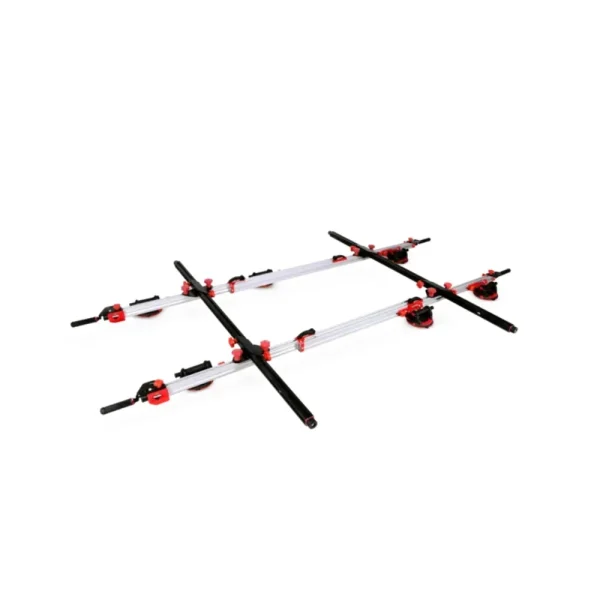

Rubi Ergo Tile Trans with crossbars
The ERGO TILE TRANS has been designed for the transport and handling of large formats of thin thicknesses (SLIM) or any large format with a maximum weight of 265 lbs.
Features
- Designed for transporting and handling large format or ultra-thin (SLIM) slabs, with a maximum weight rating of 265 lbs
- Features two retractable aluminum profiles that allow handling of pieces up to approximately 126″ long; the distance between profiles is adjustable, with ~27.5″ recommended for optimal stability
- Each profile is equipped with three 6″ diameter vacuum suction cups for secure slab grip and safe transport
- Built for light-to-medium duty slab transport, with emphasis on “LIGHT – SECURITY – RELIABILITY” as core design principles
- Machine dimensions (unfolded) are 142.5″ L × 11.75″ W × 5.375″ H (142 1/2 × 11 3/4 × 5 3/8 in)
- Net weight without packaging: 56.31 lbs (≈25.6 kg)
