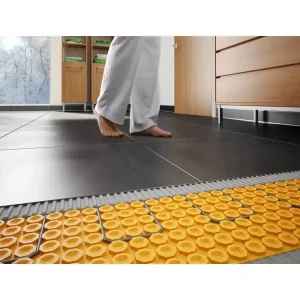

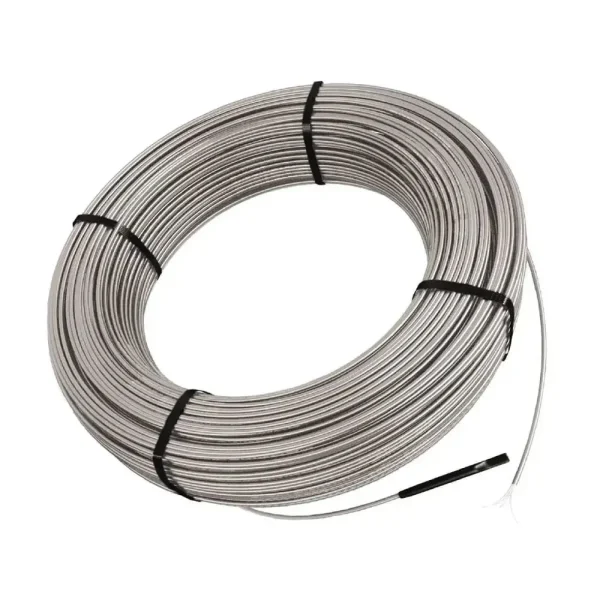

Schluter DITRA-HEAT-E-HK are twisted pair heating cables designed for integration with the DITRA-HEAT uncoupling membrane in interior floor warming applications.
| Schluter 120 V DITRA-HEAT-E-HK Specifications | |||||||
| Model | Heating Cable Length | Regular 3 Stud Spacing Coverage | Alternating 3-2 Stud Spacing Coverage | Total Power | Regular 3 Stud Power Delivery | Alternating 3-2 Stud Power Delivery | Currency |
| DHE HK 120 11 | 35.3 ft (10.8 m) |
10.7 ft² (1.0 m2) |
8.9 ft² (0.8 m2) |
135 W | 12.6 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
1.1 amps |
| DHE HK 120 16 | 52.9 ft (16.1 m) |
16.0 ft² (1.5 m2) |
13.3 ft² (1.2 m2) |
203 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
1.7 amps |
| DHE HK 120 21 | 70.5 ft (21.5 m) |
21.3 ft² (2.0 m2) |
17.8 ft² (1.7 m2) |
270 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
2.3 amps |
| DHE HK 120 27 | 88.2 ft (26.9 m) |
26.7 ft² (2.5 m2) |
22.2 ft² (2.1 m2) |
338 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
2.8 amps |
| DHE HK 120 32 | 105.8 ft (32.2 m) |
32.0 ft² (3.0 m2) |
26.7 ft² (2.5 m2) |
405 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
3.4 amps |
| DHE HK 120 38 | 124.1 ft (37.8 m) |
37.5 ft² (3.5 m2) |
31.3 ft² (2.9 m2) |
475 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
4.0 amps |
| DHE HK 120 43 | 141.1 ft (43.0 m) |
42.7 ft² (4.0 m2) |
35.6 ft² (3.3 m2) |
540 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
4.5 amps |
| DHE HK 120 51 | 169.8 ft (51.8 m) |
51.4 ft² (4.8 m2) |
42.8 ft² (4.0 m2) |
650 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
5.4 amps |
| DHE HK 120 64 | 212.9 ft (64.9 m) |
64.4 ft² (6.0 m2) |
53.7 ft² (5.0 m2) |
815 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
6.8 amps |
| DHE HK 120 73 | 240.2 ft (73.2 m) |
72.7 ft² (6.8 m2) |
60.6 ft² (5.6 m2) |
920 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
7.7 amps |
| DHE HK 120 83 | 275.5 ft (84.0 m) |
83.3 ft² (7.7 m2) |
69.4 ft² (6.5 m2) |
1055 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
8.8 amps |
| DHE HK 120 92 | 303.0 ft (92.4 m) |
91.7 ft² (8.5 m2) |
76.4 ft² (7.1 m2) |
1160 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
9.7 amps |
| DHE HK 120 102 | 336.9 ft (102.7 m) |
101.9 ft² (9.5 m2) |
84.9 ft² (7.9 m2) |
1290 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
10.7 amps |
| DHE HK 120 113 | 372.2 ft (113.4 m) |
112.6 ft² (10.5 m2) |
93.8 ft² (8.7 m2) |
1425 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
11.9 amps |
| DHE HK 120 134 | 444.0 ft (135.3 m) |
134.3 ft² (12.5 m2) |
111.9 ft² (10.4 m2) |
1700 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
14.2 amps |
A dedicated circuit is required.Select either 120V or 240V heating cable according to power supply.
Never CUT the heating cable. This could change the cable resistance and could lead to a fire. WARRANTY DISClAIMER: Damage to the DITRA-HEAT-E-HK heating cables voids the Schluter®-DITRA-HEAT 10-Year limited Warranty
