Availability: 6 in stock

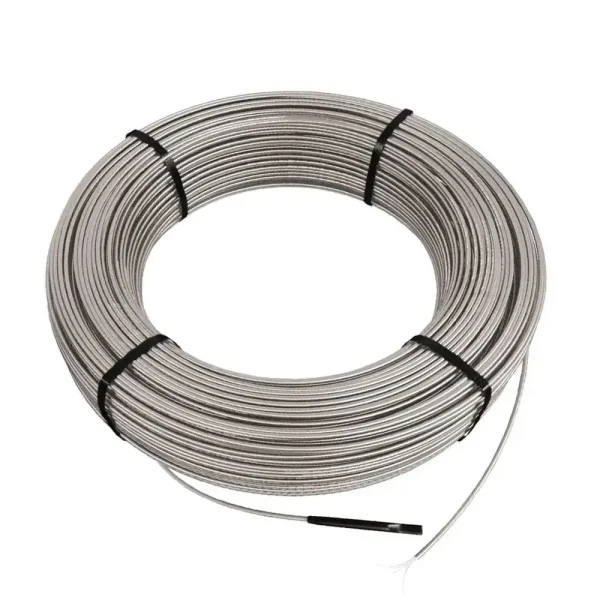

Schluter DITRA-HEAT-E-HK are twisted pair heating cables designed for integration with the DITRA-HEAT uncoupling membrane in interior floor warming applications.
A dedicated circuit is required. Select either 120V or 240V heating cable according to power supply.
Never CUT the heating cable. This could change the cable resistance and could lead to a fire. WARRANTY DISCLAIMER: Damage to the heating cables voids the Schluter-DITRA-HEAT 10-Year limited Warranty
| Schluter 240 V DITRA-HEAT-E-HK Specifications | |||||||
| Model | Heating Cable Length | Area Covered per Cable Spacing Regular 3 Stud |
Area Covered per Cable Spacing Alternating 3-2 Stud |
Total Power | Avg. Power per Unit Area per Cable Spacing Regular 3 Stud |
Avg. Power per Unit Area per Cable Spacing Alternating 3-2 Stud |
Currency |
| DHE HK 240 11 | 35.3 ft (10.8 m) |
10.7 ft² (1.0 m²) |
8.9 ft² (0.8 m²) |
135 W | 12.6 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
0.6 amps |
| DHE HK 240 16 | 53.1 ft (16.2 m) |
16.1 ft² (1.5 m²) |
13.4 ft² (1.2 m²) |
203 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
0.8 amps |
| DHE HK 240 21 | 70.6 ft (21.5 m) |
21.4 ft² (2.0 m²) |
17.8 ft² (1.7 m²) |
270 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
1.1 amps |
| DHE HK 240 27 | 88.2 ft (26.9 m) |
26.7 ft² (2.5 m²) |
22.2 ft² (2.1 m²) |
338 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
1.4 amps |
| DHE HK 240 32 | 105.8 ft (32.2 m) |
32.0 ft² (3.0 m²) |
26.7 ft² (2.5 m²) |
405 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
1.7 amps |
| DHE HK 240 38 | 124.1 ft (37.8 m) |
37.5 ft² (3.5 m²) |
31.3 ft² (2.9 m²) |
475 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
2.0 amps |
| DHE HK 240 43 | 141.1 ft (43.0 m) |
42.6 ft² (4.0 m²) |
35.5 ft² (3.3 m²) |
540 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
2.3 amps |
| DHE HK 240 53 | 176.3 ft (53.7 m) |
53.3 ft² (5.0 m²) |
44.4 ft² (4.1 m²) |
675 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
2.8 amps |
| DHE HK 240 64 | 211.6 ft (64.5 m) |
64.0 ft² (5.9 m²) |
53.3 ft² (5.0 m²) |
810 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
3.4 amps |
| DHE HK 240 75 | 248.2 ft (75.7 m) |
75.1 ft² (7.0 m²) |
62.6 ft² (5.8 m²) |
950 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
4.0 amps |
| DHE HK 240 85 | 282.1 ft (86.0 m) |
85.3 ft² (7.9 m²) |
71.1 ft² (6.6 m²) |
1080 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
4.5 amps |
| DHE HK 240 103 | 339.4 ft (103.4 m) |
102.7 ft² (9.5 m²) |
85.6 ft² (7.9 m²) |
1300 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
5.4 amps |
| DHE HK 240 129 | 425.8 ft (129.8 m) |
128.8 ft² (12.0 m²) |
107.3 ft² (10.0 m²) |
1630 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
6.8 amps |
| DHE HK 240 145 | 480.5 ft (146.5 m) |
145.3 ft² (13.5 m²) |
121.1 ft² (11.3 m²) |
1840 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
7.7 amps |
| DHE HK 240 167 | 551.0 ft (167.9 m) |
166.7 ft² (15.5 m²) |
138.9 ft² (12.9 m²) |
2110 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
8.8 amps |
| DHE HK 240 183 | 605.9 ft (184.7 m) |
183.3 ft² (17.0 m²) |
152.7 ft² (14.2 m²) |
2320 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
9.7 amps |
| DHE HK 240 204 | 673.8 ft (205.4 m) |
203.8 ft² (18.9 m²) |
169.9 ft² (15.8 m²) |
2580 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
10.7 amps |
| DHE HK 240 225 | 744.4 ft (226.9 m) |
225.2 ft² (20.9 m²) |
187.7 ft² (17.4 m²) |
2850 W | 12.7 Watts/ft² (136 Watts/m²) |
15.2 Watts/ft² (164 Watts/m²) |
11.9 amps |
