SECO 90560 Tri-Max Tall Quick Dual Clamp Fiberglass Instrument Tripod

Name: SECO 90560 Tri-Max Tall Quick Dual Clamp Fiberglass Instrument Tripod
SKU: Seco 90560
Price: 118.82 USD
Availability: InStock

Availability: 6 in stock

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: Seco 90560

Description

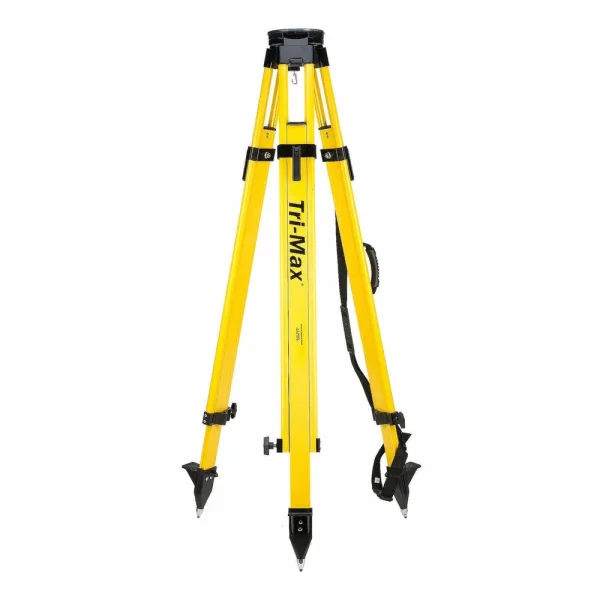

SECO 90560 Tri-Max Tall Quick Dual Clamp Fiberglass Instrument Tripod

Tri-Max Tall Quick/Dual Clamp Instrument TripodThe Tri-Max® is the only surveying grade tripod with certified accuracy – highly recommended for all servo driven and robotic total stations, 3-D laser scanners or construction lasers
The revolutionary design of this tripod series means this tripod will meet ISO standard (12858-2-H) right out of the box, and after years of field use
Features a 6-5/8-inch Flat head with large center hole (2-5/8 inch) to facilitate an easy set-up over a point
A retaining system—which prevents leg kick out and accidental falls on slick surfaces—is stored on the inside of the leg and can be left in place when the tripod is not in use
The large ‘footbed’ is there to facilitate solid planting for stability
The shape and size of the foot are designed to allow for a solid placement on any terrain
The foot is equipped with a replaceable point and a retention loop for use with a safety strap
The Tri-Max can handle equipment up to 65 lbs
Quick/Dual Clamp Lock type
Black Hardware
Fiberglass Legs
Extends 91 inches
Weighs 20.00 lbs

Tri-Max Tall Quick/Dual Clamp Instrument Tripod
Model Number	90560
Manufacturer	SECO
Manufacturer Product URL
Applications	Surveying, Leveling and Lasers, TPS Setups, Robotics
Strength	Heavy duty
Materials	Fiberglass
Clamping Style	Quick Clamps, Positive Clamping, Twist Lock
Head	Flat, Round with 5/8″ x 11 Thread
Collapsed Length	4.4 feet
Extended Length	8 feet
Points	Pointed shoes
Colors	Yellow Legs, Black Hardware
Features	Wide-Frame Extension Legs, Shoulder Strap, Stabilizing Strap, Leg Hand Strap, Dual Locking
