| SitePRO 25-SK32X Professional 32 Power Automatic Level |
|
|
These auto-levels feature excellent magnification with large aperture that allows more light for a sharper image. Finely tuned magnetically dampened compensator levels and stabilizes the line of sight despite fine vibrations, providing high precision leveling results.
- Compensator is designed with four suspension wires made of super-high-tensile metal that features minimal thermal expansion coefficient
- Horizontal and vertical cross hairs with 1:100 stadia lines – measures level, alignment & estimates distance
- Fine motion horizontal tangent knobs on left and right sides allow friction braked rotation, endless horizontal drive and precise pointing and angle measurement
- Peep sight to aid in sighting
- Solid leveling metal base with three precision leveling screws provides stability and accuracy in all weather and job site conditions
- 360° Graduated horizontal circle in 1-degree increments for layout applications
- 10’/2mm circular bubble vial with 90-degree mirror for accurate and quick set-up
|

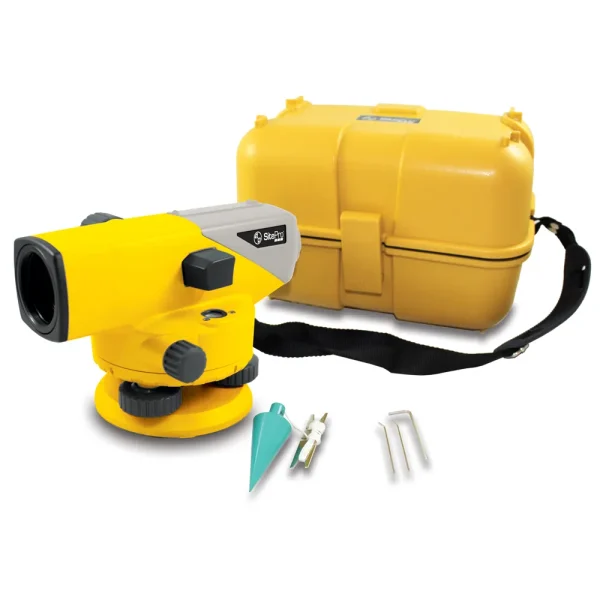

| SitePRO 25-SK32X AUTO LEVEL INCLUDES |
- 25-SK32X 32 Power AUTOMATIC Level Instrument
- Adjustable Tools
- Lens Cap
- PlumbBob
- Heavy-Duty Hard CarryingCase
- Owners Manual
- 2-Year Warranty
|
| SitePRO 25-SK32X Automatic Level SPECIFICATIONS |
- Leveling Accuracy:±1/16-inch @ 250-feet
- Working Range: 400-feet
- Telescope Magnification: 32X
- Angular Accuracy: 1°
- Field of view: 1° 20-feet
- Minimum Focus Distance : < 1-foot
- Compensator Range: ±15-feet
- Comp Setting: ±3-inch
|
SitePRO 25-2SK32X Auto Level APPLICATIONS
|
- Short range leveling
- Turning angles, establishing 90° reference lines
- Aligning Forms
- Aligning Walls
|
