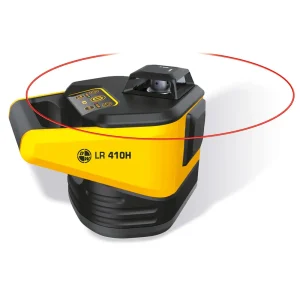

The SitePro LR410H is a simple, single horizontal rotary laser with electronic self-leveling technology. This laser system is ideal for exterior elevation, level, and simple grade work.
SitePro LR410H Rotary Laser FEATURES:
- Accuracy: ±1/16-inch at 100 feet
- Working Range up to 2,950 feet with detector
- Compact, ergonomic design with single button operation
- Extremely high rotation speed of up to 2,000 rpm projects perfectly visible lines
- Single axis slope (±7°)
- Integrated rotary head with built-in 635nm diode RED beam Laser
- Electronic self-leveling
SitePro LR410H Laser APPLICATIONS:
- Leveling, checking elevations, concrete forms, footings, foundations
- Estimating cut and fill
- Installation of decks, pools, drop ceilings, floors
- Excavating, digging footings, septic systems

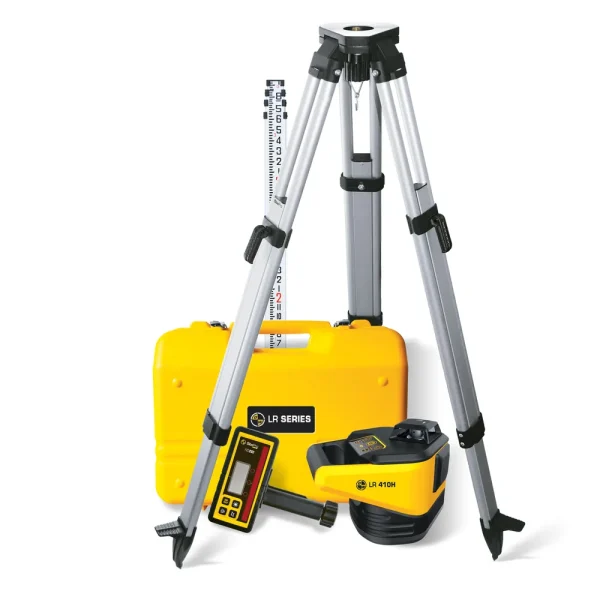

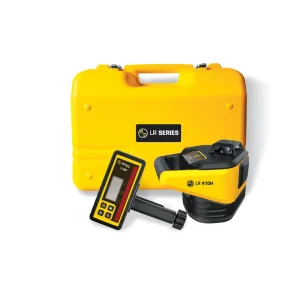

WHAT’S INCLUDED with SitePro LR410H-4T:
- Rotary Laser LR410H – Red Beam
- Laser Detector/Receiver 27-RD202 (4.9-inch Large Capture Window)
- Detector Rod Clamp
- Aluminum Measuring Rod – Measurements in TENTHS
- Aluminum Tripod
- Glasses
- Target
- 4-‘C’ alkaline batteries
- Protective Carrying Case
- User Guide
- 2-Year Laser Warranty

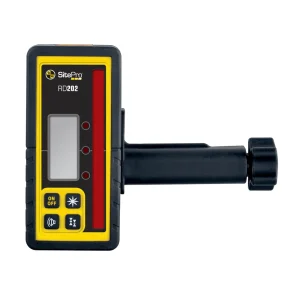

| SitePro 27-RD202 Laser Detector included with LR410H-4T |
Laser Detector with Large 4.9-inch Capture Window
The RD202 laser detector features a large capture window for quick locating of the rotary laser beam in bright light or over long distances. |
- Large 4.9-inch capture height allows quick detection
- Fine and coarce on-grade sensitivity settings for easy grade detection
- Frond and Rear LCD displays allows easy, fast visual detection
- Rugged housing with gasket seal – IP55
- Strong built-in magnets on side and top
- Automatic Shut-off preserves battery life
- Simultaneous elevation LED indicators on front for fast, easy visual
|
SitePro LR410H Laser TECHNICAL SPECIFICATIONS
| Leveling |
Horizontal |
| Horizontal Accuracy |
±1/16-in at 100-ft |
| Vertical Accuracy |
n/a |
| Angle Accuracy |
20” |
| Leveling Type |
Electronic Self-Leveling (±4º) |
| Slope/Grade |
Single Axis -4º to +4º |
| Working Range (dia.) |
| Without Detector |
Up to 65-ft (20m) |
| With Detector |
Up to 2950-ft (900m) |
| Beam Rating |
635 nm, Class 2 |
| Rotation Speed |
400, 800, 2000 RPM |
| Scanning |
10°, 45°, 90° |
| Power Supply |
Four (4) C Cell Alkaline or Li-on Rechargeable Batteries |
| Operating Time |
| w/Li-Ionen Battery |
23 hrs |
| w/Alkaline Batteries |
35 hrs |
| Environment |
IP55, Water/Dust Resistant |
| Operating Temp. |
14° to 112° F (-10° to + 45° C) |
| Storage Temp. |
-4° to 158° F (-20° to 70° C) |
| Dimension |
8.5 x 6.0 x 6.2-in (215 x 150 x 156mm) |
| Weight(instrument) |
4.2 lb (1.9 kg) |
|
