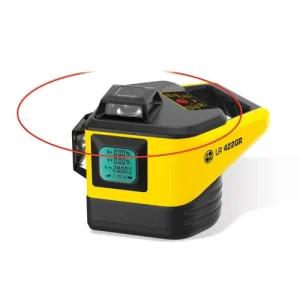

SitePro 27-LR422GR Dial-IN Dual Grade Rotary Laser

Site-PRO Model 27-LR422GR
The LR422GR features dual dial-in grade (±7.0%) in both axis with horizontal and vertical electronic self-leveling laser for precise leveling applications, ideal for both indoor and outdoor use. Vertical laydown positioning provides vertical alignment capabilities and squaring to ensure that walls or partitions are precisely aligned.

• The LR422GR is designed for construction work with dual dial-in grade feature for leveling and slope or grade work.
• Smart H.I. Alert System alerts user when laser has been disturbed or drifts
• Extremely high rotation speed up to 2,000 rpm visible beam
• Enclosed Rotor Housing keeps laser safe from tough jobsite conditions

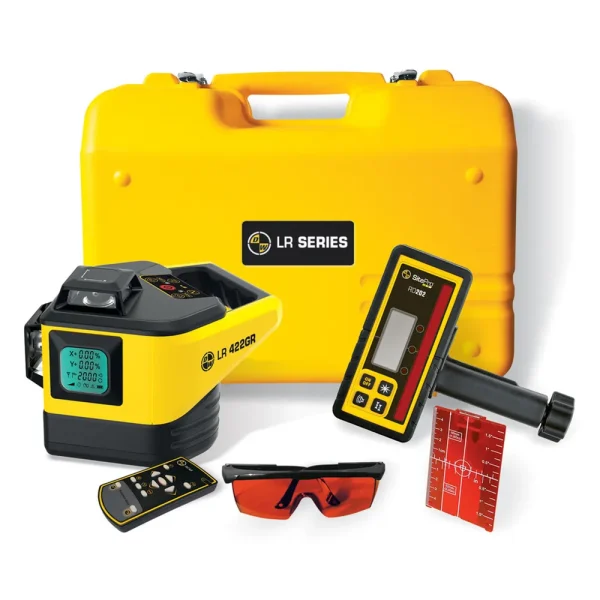

• Dual Grade Rotary Laser Transmitter
• Laser Detector w/Clamp
• 4 “C” Alkaline Batteries
• Magnetic Target
• Laser Viewing Glasses
• Carrying Case
• User Manual

• Horizontal Accuracy ±1/16-inch @ 100-foot
• Range with Detector (Diameter): 2,950-foot

• Extremely High Rotation Speed 2,000 RPM
• Variable Speed Presets 400, 800 and 2,000 RPM
  Scanning Presets: 0, 10, 45 and 90 degree
• Leveling Type (Degrees): Electronic (±4º)
• Beam Rating: Class 3R, 635nm
• Slope/Grade Capability: Dual (±7.0%)
• Battery Type: (4) C Cell Alkaline
• Water/Dust Protection: IP55

• Exterior construction : Light to Medium Commercial, residential construction
• Leveling and Checking Elevations, concrete forms, footings, foundations
• Slope work, driveways, ramps
• Leveling and aligning of walls
