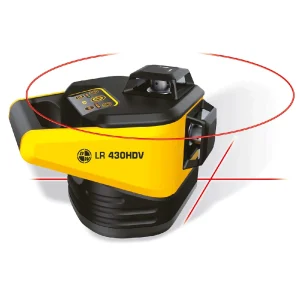

The LR430HDV is a 3D rotary laser featuring three 360° planes leveling system – one horizontal and two 90° vertical rotating laser planes. The individual rotary heads exceeds the performance of any line laser and projects there perfectly visible 360° laser lines. Most jobs can be done without re-positioning the laser – horizontal, vertical and 90°. With this feature you can also stake out 90° angles.
SitePro LR430HDV-4C Rotary Laser FEATURES:
- The LR 430HDV is a 3-dimensional rotary laser featuring three 360° plane leveling system- horizontal and two 90° vertical rotating laser planes.
- Accuracy 1/16-in at 100 feet electronic self-leveling
- 2,950 feet diameter working range with detector
- Extremely high rotation speed of up to 2,000 rpm
- Electronic self-leveling
- Three integrated rotary head with built-in 635nm diodes
- Compact, ergonomic design with single button operation
- Multiple scan angles, beam positioning, and variable rotation speeds
- Single axis ±4° slope
- Includes Aluminum Tripod and Grade Rod in INCHES
SitePro LR430HDV-4C Laser APPLICATIONS:
- Leveling, checking elevations, concrete forms, footings, foundations
- Estimating cut and fill
- Installation of decks, pools, drop ceilings, floors
- Excavating, digging footings, septic systems

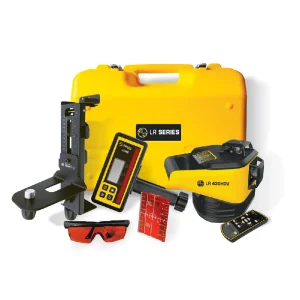

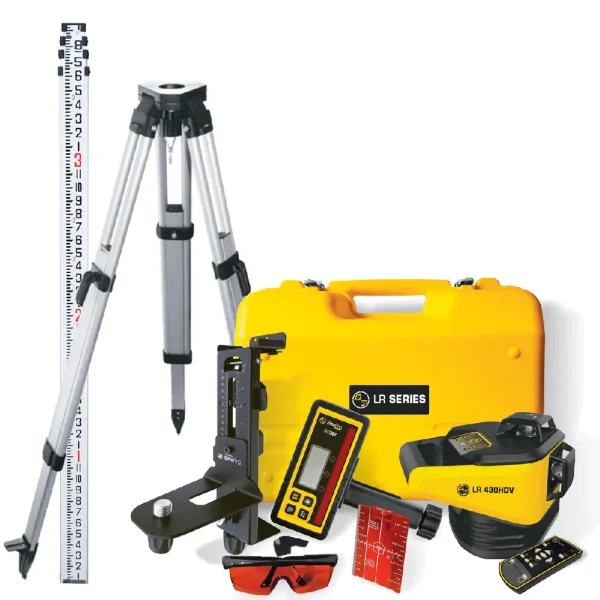

WHAT’S INCLUDED with SitePro LR430HDV-4C:
- Rotary Laser LR430HDV – Red Horizontal Beam and two 90° Vertical Laser Plains
- Laser Detector/Receiver 27-RD202 (4.9-inch Large Capture Window)
- Detector Rod Clamp
- Remote Control
- Glasses
- Magnetic Target
- Rechargeable Batteries and Charger Kit
- 4-‘C’ alkaline batteries
- Protective Carrying Case
- Aluminum Tripod
- 13-foot Telescoping Aluminum Grade Rod with Measurements in INCHES
- User Guide
- 2-Year Laser Warranty
| SitePro 27-RD202 Laser Detector included with LR430HDV |
Laser Detector with Large 4.9-inch Capture Window
The RD202 laser detector features a large capture window for quick locating of the rotary laser beam in bright light or over long distances. |
- Large 4.9-inch capture height allows quick detection
- Fine and coarce on-grade sensitivity settings for easy grade detection
- Frond and Rear LCD displays allows easy, fast visual detection
- Rugged housing with gasket seal – IP55
- Strong built-in magnets on side and top
- Automatic Shut-off preserves battery life
- Simultaneous elevation LED indicators on front for fast, easy visual
|
SitePro LR410H Laser TECHNICAL SPECIFICATIONS
| Leveling |
Horizontal w/2x 90° Verticals |
| Horizontal Accuracy |
±1/16-in at 100-ft (±1.8mm at 30m) |
| Vertical Accuracy |
±1/8-in at 100-ft (±3mm at 30m) |
| Angle Accuracy |
20” |
| Leveling Type |
Electronic Self-Leveling (±4º) |
| Slope/Grade |
Single Axis -4º to +4º |
| Working Range (dia.) |
| Without Detector |
Up to 65-ft (20m) |
| With Detector |
Up to 2950-ft (900m) |
| Beam Rating |
635 nm, Class 2 |
| Rotation Speed |
400, 800, 2000 RPM |
| Scanning |
10°, 45°, 90° |
| Power Supply |
Four (4) C Cell Alkaline or Li-on Rechargeable Batteries |
| Operating Time |
| w/Li-Ionen Battery |
10.5 to 23 hrs |
| w/Alkaline Batteries |
13 to 35 hrs |
| Environment |
IP55, Water/Dust Resistant |
| Operating Temp. |
14° to 112° F (-10° to + 45° C) |
| Storage Temp. |
-4° to 158° F (-20° to 70° C) |
| Dimension |
8.5 x 6.0 x 6.2-in (215 x 150 x 156mm) |
| Weight (instrument) |
4.7 lb (2.07 kg) |
|
