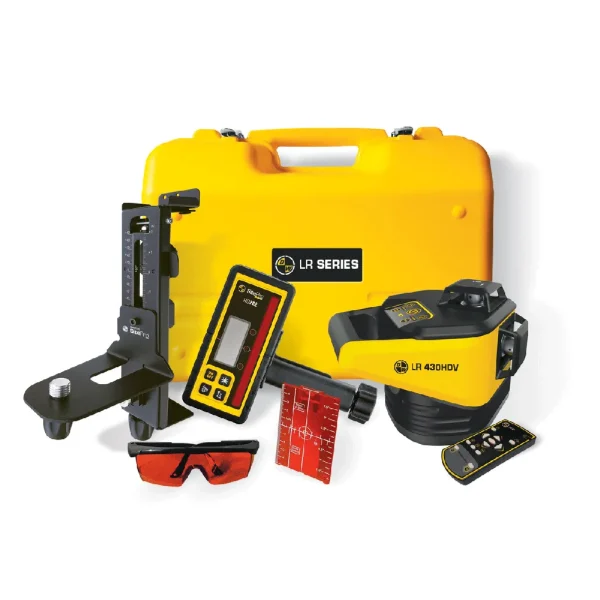

| SitePro 27-LR430HDV Horizontal Rotary Laser with two 90° vertical rotating laser planes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

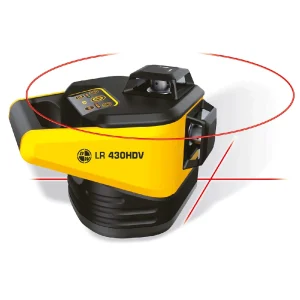

The LR430HDV is a 3D rotary laser featuring three 360° planes leveling system – one horizontal and two 90° vertical rotating laser planes. The individual rotary heads exceeds the performance of any line laser and projects there perfectly visible 360° laser lines. Most jobs can be done without re-positioning the laser – horizontal, vertical and 90°. With this feature you can also stake out 90° angles. SitePro LR430HDV Rotary Laser FEATURES:
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SitePro 27-RD202 Laser Detector included with LR430HDV | |
| Laser Detector with Large 4.9-inch Capture Window The RD202 laser detector features a large capture window for quick locating of the rotary laser beam in bright light or over long distances. |
|
|
|
| Leveling | Horizontal w/2x 90° Verticals |
| Horizontal Accuracy | ±1/16-in at 100-ft |
| Vertical Accuracy | ±1/8-in at 100-ft |
| Angle Accuracy | 20-inch |
| Leveling Type | Electronic Self-Leveling (±4º) |
| Slope/Grade | Single Axis -4º to +4º |
| Working Range (dia.) | |
| Without Detector | Up to 65-ft |
| With Detector | Up to 2950-ft |
| Beam Rating | 635 nm, Class 2 |
| Rotation Speed | 400, 800, 2000 RPM |
| Scanning | 10°, 45°, 90° |
| Power Supply | Four (4) C Cell Alkaline -or- OPTIONAL Li-on Rechargeable Batteries |
| Operating Time | |
| w/Li-Ionen Battery | 10.5 to 23 hrs |
| w/Alkaline Batteries | 13 to 35 hrs |
| Environment | IP55, Water/Dust Resistant |
| Operating Temp. | 14° to 112° F |
| Storage Temp. | -4° to 158° F |
| Dimension | 8.5 x 6.0 x 6.2-inches |
| Weight (instrument) | 4.7 pounds |
| KS ROTARY | LR SERIES ROTARY LASERS | ||||

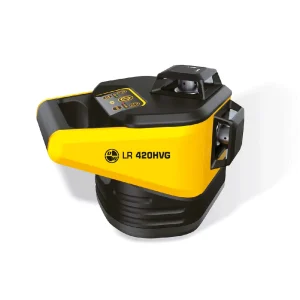

| KS 100H | LR 410H | LR 430HDV | LR 420HV-G | LR 422GR | |
| Leveling Accuracy inch | ±3/16 | ±1/16 | ±1/16 | ±3/32 | ±1/16 |
| Leveling Type | Electronic ±4° | Electronic ±4° | Electronic ±4° | Electronic ±4° | Electronic ±4° |
| Working Range (diameter) | |||||
| without Detector | 130 foot | 65 foot | 130 foot | ||
| with Detector | 1,000 foot | 2,950 foot | 2,950 foot | 1,350 foot | 2,950 foot |
| Functions | |||||
| Slope | — | Single Axis ±7.0% | Single Axis ±7.0% | Single Axis ±7.0% | Dual Axis ±10.0% |
| Scanning | — | Preset – 0°, 10°,45°, 90° | Preset – 0°, 10°,45°, 90° | Preset – 0°, 10°,45°, 90° | Preset – 0°, 10°,45°, 90° |
| Height/Alert | YES | YES | YES | YES | YES |
| Rotation Speed(s) | 600 RPM | 400, 800, 2000 RPM | 400, 800, 2000 RPM | 400, 800, 2000 RPM | 400, 800, 2000 RPM |
| Power Supply | 4-C Alkaline | 4-C Alkaline | 4-C Alkaline & Battery Pack | 4-C Alkaline & Battery Pack | 4-C Alkaline |
| Environment | IP54 Water/Dust Resistant |
IP55 Water/Dust Resistant |
IP55 Water/Dust Resistant |
IP55 Water/Dust Resistant |
IP55 Water/Dust Resistant |
| Ideal Application | Exterior leveling, checking elevations, concrete forms, footings, and foundations. Estimating cut and fill. Manual slope. Installation of decks, pools, drop ceilings, floors. Excavating, digging footings, septic systems. |
Interior and Exterior, light to medium commercial, residential construction. Checking elevations, concrete forms, footings, foundations. Square and align walls, partitions, and corners. Installation of ceilings and floors. | Exterior, light to medium commercial, residential construction. Leveling, checking elevations, concrete forms, footings, foundations. Dual Grade work, driveways, ramps. Leveling and aligning walls. | ||
|
||||||
