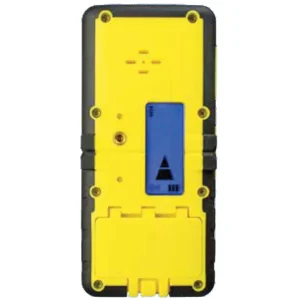

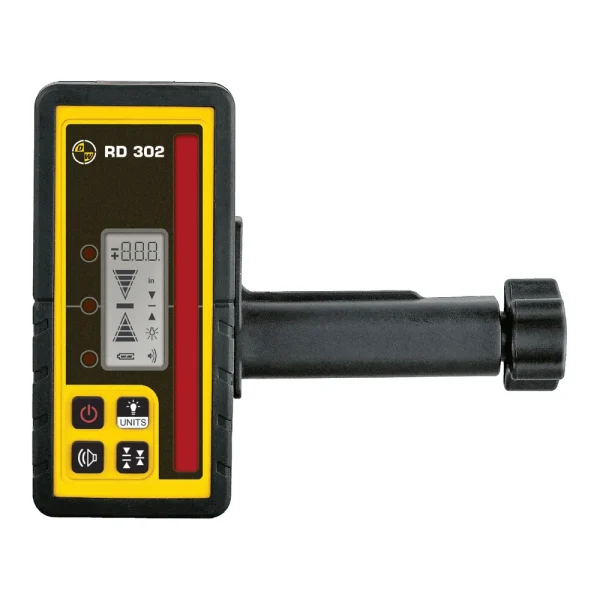

SitePRO 27-RD302 Digital Readout Receiver with Large Capture Height

SitePro RD302 Rotary Laser Receiver, with Large 5-inch Capture Window

SitePRO 27-RD302

Professional Laser Detector with Digital Readout
This is a versatile laser detector for basic and advanced leveling and alignment. Digital readout provides a numeric display and shows exactly how far the elevation is from on-grade. The rotary laser detector aids in locating and targeting a visible or invisible beam emitted by a rotary laser instrument; perfect for use in outdoor conditions (as well as indoors), where sunlight and distance may make locating the beam more difficult. The laser detector includes a rod clamp which allows to mount the detector onto square, round or oval sighting rods.

• LARGE 5-INCH Capture window allows for faster beam detection.
• Digital readout on front and back – displays elevation from on-grade within 2 inches above or below on grade.
• Selectable units of measure – mm or inches
• Front and Back Displays
• Rugged housing and gasket sealed for water and dust protection (IP55)
• Heavy duty built-in magnets on both side and top for added versatility when mounting detector
• Automatic shut-off turns off receiver after seven (7) minutes of inactivity to preserve battery life
• Simulaneous Elevation LED indicators on front for fast visual detection
• Includes heavy-duty construction tough rod clamp and built-in bubble
• Strong built-in magnets on top and side.
• Back-lit Display

SitePRO RD-302 Laser Receiver INCLUDES:

• Heavy-Duty Rod Clamp
• 9-Volt battery

Site Pro RD-302 Laser Receiver SPECIFICATIONS

• Beam Detection: Red Laser

• Capture Window: 5.0-inch

• Detecting Range: 4-foot to 1,000 foot (Dependent on Laser Transmitter Output)

• LED Indicators: Green On-Grade , Red High/Low Indicator

• Speaker Tones: Fast Beep – High , Slow Beep – Low , Constant Tone – On Grade

• Speaker Volume: LOW / HIGH / OFF

• Reception Sensitivity Settings: Fine / Medium / Coarse

• LCD Display: Front and Back

• Power Source: 9V, Provides approximately 8 hours of continuous use

• Weight: 0.85 lbs

• Warranty: 1 Year limited
