Spectra Precision HL760 Laser Receiver (Radio) with Rod Bracket
Spectra Precision HL760 Laser Receiver (Radio) with Rod Bracket
Spectra Precision HL760 Laser Receiver (Radio) with Rod Bracket - view 2
Spectra Precision HL760 Laser Receiver (Radio) with Rod Bracket - view 3
Spectra Precision HL760 Laser Receiver (Radio) with Rod Bracket - view 4
Laser Receivers & Rangefinders

Spectra Precision HL760 Laser Receiver (Radio) with Rod Bracket

Original price was: $410.40.Current price is: $105.00.

Availability: 7 in stock

🚚 Free Shipping over $39
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: Spectra HL760
CATEGORY: Laser Receivers & Rangefinders
Description

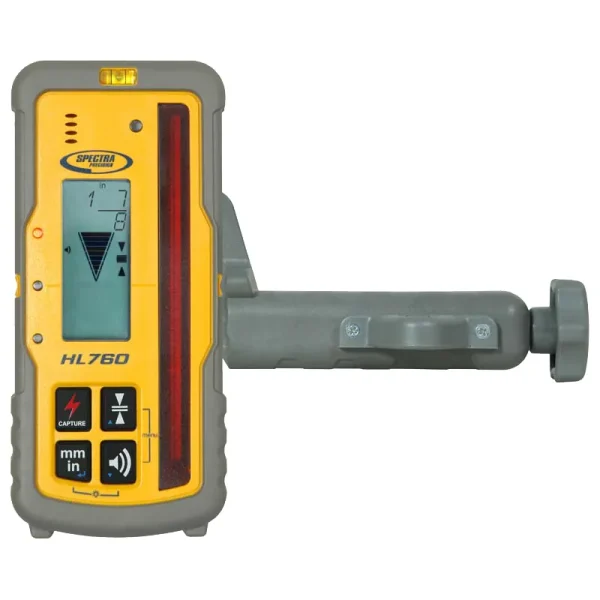

Spectra Precision HL760 Laser Receiver with Clamp Bracket

The Spectra Precision HL760 is a high-performance laser receiver designed for tough jobsites and precision-grade work. It features a large 5-inch reception height, front and rear LCD displays, and a digital readout of elevation, letting contractors instantly see how far off grade they are — without guessing.

This model builds on the popular HL750 with the added benefit of Grade Match and PlaneLok functions, which are available when used with Spectra lasers like the HV1305C, GL412N, and GL422N, GL622N, GL1425C, UL633N, LL300N, LL300S and HV302

  • Grade Match automatically tilts the laser plane to match the fall between two elevations — no math or string lines needed.

  • PlaneLok locks the laser beam to the receiver to eliminate drift and keep your benchmark tight over time.

✅ Works With These Spectra Lasers

LL300N, LL300S, LL1505C, HV1305C, GL1425C, LL300S, LL400HV, HV302, GL412N, GL422N, GL622N, UL633N
Also compatible with most red beam rotary lasers from Topcon, Leica, CST/Berger, Johnson, and more.
Spectra Precision HL760 Laserometer Laser Receiver INCLUDES
  • HL760 Laser Receiver
  • C70 Rod Clamp for Receiver
  • (2)x AA-Batteries
  • Operating Manual

Key Features of the Spectra HL760 Laser Receiver:

• Digital readout of elevation shows exact distance from on-grade
• 5-inch reception height for faster beam acquisition
• Fingerprint functionality filters out other lasers; responds only to paired transmitter (LL300S, LL400HV, HV302, GL412N, GL422N)
• Anti-strobe sensor prevents false readings from jobsite strobe lights
• Grade Match and PlaneLok functions when used with compatible Spectra lasers
• Front and rear LCDs for visibility from both sides of the rod
• Wireless pairing option for remote display and monitoring
• IP67 rated – waterproof, dustproof, and drop-tested to 10 feet (3 meters)
• No need to go physically on-grade to take measurements
• Reduces rework by enabling remote monitoring and improving accuracy
• 60-hour runtime on two AA alkaline batteries
• Six selectable accuracy settings
• Displays units in mm, cm, feet, inches, or fractional inches
• Automatic shutoff after 30 minutes of inactivity
• Built for reliability, accuracy, and durability in tough jobsite conditions
SPECTRA PRECISION HL Series Receivers Unique Technology
UNIQUE TECHNOLOGY

Our patented “Light Bar” technology has the following advantages:

  • Longer reception length
  • More granularity on the reception length
  • Simplified design with more durable components rather than many fragile soldered components

As a result, it delivers:

  • Performance not affected by the beam diameter
  • Consistent accuracy over the whole operating range. Other forms of laser detection do not provide the consistency of the accuracy over distance meaning they are adding more error to the readout
  • Unbeatable robustness enabling you to work in harshest conditions
Spectra Precision HL760 Laser Receiver APPLICATIONS

Setting and checking jobsite elevation and depth for:

  • Cut and fills
  • General grading
  • Foundations, forms, and footings
  • Excavations
SPECTRA LASER RECEIVER COMPARISON CHART
HL760 QUICK COMPARISION for Spectra Precision Laser Receivers
LCD’s Beam
Compatability		 Reception
Height		 Digital
Readout		 Drop
Rating		 Warranty
HR320 Dual RED 2-inch arrows 5-feet 3 Year LTD
2 Years Free
HL450 Dual RED 4-inch arrows &
distance		 5-feet 3 Year LTD
2 Years Free
HL700 Dual RED 5-inch arrows &
distance		 10-feet 3-Year
No Excuse
HL750 Dual RED 5-inch arrows &
distance		 10-feet 3-Year
No Excuse
HL760 Dual RED 5-inch arrows &
distance		 10-feet 3-Year
No Excuse
HL760U Dual RED
GREEN		 5-inch arrows &
distance		 10-feet 3-Year
No Excuse
CR600 Dual RED 5-inch arrows &
distance		 10-feet 3 Year LTD
2 Years Free
HL760 DETAIL COMPARISON for Spectra Precision Laser Receivers
HR320 HL450 HL700 HL750 HL760 HL760U CR600
Laserometer
w/numeric display		 No Yes Yes Yes Yes Yes No
Digital Readout No Yes Yes Yes Yes Yes No
Metric/English
unit of measure		 No Yes Yes Yes Yes Yes No
Front/Back Readout Yes Yes Yes Yes Yes Yes Yes
Machine Mountable No No No No No No Yes
Self Calibrates No Yes Yes Yes Yes Yes No
Strobe Rejection No No Yes Yes Yes Yes No
Advanced Menu No No Yes Yes Yes Yes No
Rod Level Vial No No Yes Yes Yes Yes Yes
Water Resistance Yes Yes Yes Yes Yes Yes Yes
Beam Color RED

 RED

 RED

 RED

 RED

 RED
GREEN		 RED
Reception Height 2-inch 4-inch 5-inch 5-inch 5-inch 5-inch 5-inch
Levels of Accuracy 2 2 5 5 5 5 5
Drop Rating 5-feet 5-feet 10-feet 10-feet 10-feet 10-feet 10-feet
Exchange Warranty 3 Year LTD
2 Years Free		 3 Year LTD
2 Years Free		 3 Years Free 3 Years Free 3 Years Free 3 Years Free 3 Years Free
On Grade Positions 1 1 2 2 2 2 1
Volume Settings 3 3 3 3 3 3 3
Packaged with LL100N
LL100N-1
LL100N-2
LL100N-3
LL300N-8
HV101GC-1
HV101GC-2
HV101GC-3
HV302GC-2

LL300N
LL300N-1
LL300N-2
LL300N-3
LL300N-4
LL300S
LL300S-1
LL300S-2
LL300S-3
LL300S-4
HV302

 LL500
LL500-1
LL500-2
LL500-3
LL500-4
CTO-GL710
CTO-GL720
 GL612
GL612-1
GL622
GL622-2
UL633
UL633-1
UL633-14
UL633-24

 LL300S-7
LL300S-17
LL300S-27
LL300S-37
LL300S-47
LL400HV
LL400HV-1
LL400HV-2
LL400HV-4
HV302-7
GL412N
GL422N

 Optional
for
Green
or
Red
Beam
Lasers		 LL400HV-10
LL500-10
LL500-11
LL500-14
GL412N-14
GL422N-14
GL612-14
GL622-14
CTO-GL710-10
CTO-GL720-10
CTO-GL722
CTO-GL722-IR
Spectra Precision Laser Receiver DOWNLOADS
Spectra Precision Laser Receiver BROCHURE
HL700 User Guide
NEED HELP or HAVE QUESTIONS?
