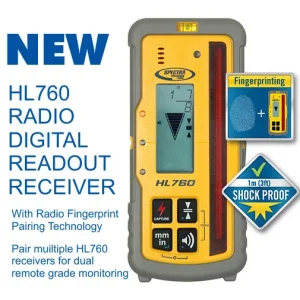

| Spectra Precision HL760U Universal Red and Green Beam Laser Receiver |
| Spectra Precision HL760U Laserometer Laser Receiver INCLUDES |

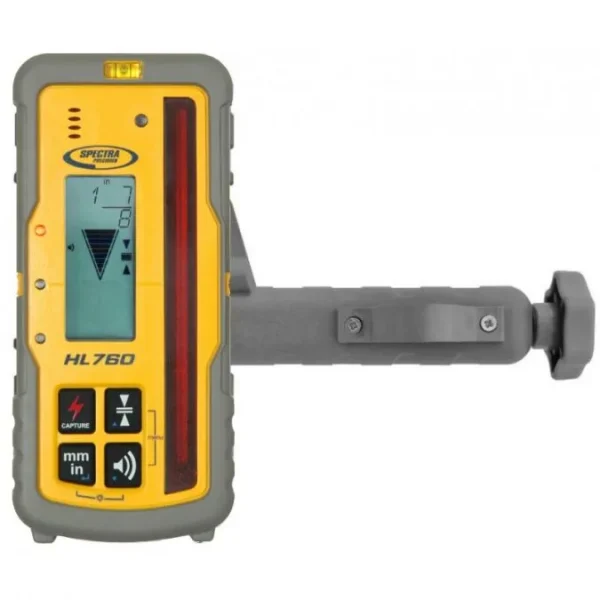

- HL760U Receiver
- C70 Clamp for Receiver
- 2 x AA-Batteries
- Operating Manual
|
| Spectra Precision HL760U Laser Receiver OVERVIEW |
- Digital readout of elevation – not only will high or low arrows be displayed, but the exact distance from grade will be displayed, which eliminates the need to get “on-grade” to make measurements
- Large 5 inch (12.7 cm) reception height acquires the beam quickly and makes it easy to stay in the beam
- The HL760 / HL760U has an internal, long range 330 ft (100m) radius, high speed digital radio built inside that allows the receiver to communicate with any other HL760 / HL760U: LL300S, LL400HV, HV302, GL412N / GL422N laser transmitters
- Machine operators can monitor elevation shots taken by another person or foremen can monitor elevations and cut/fill readings from anywhere on the jobsite
- Anti-strobe sensor stops construction strobe lights from setting off the receiver, and makes it easier to identify true laser beam signals
- Multiple deadband setting allows adaptation to meet all your jobsite requirements
- Dust and weatherproof housing withstands a drop of up to 10 ft (3 m) onto concrete for reduced downtime
- Two clamp positions for cut/fill or excavation
- Three-year “No Excuses” warranty
- C70 Clamp with Bubble Vial included
- Clamp comes with patented reversible jaw to allow a more solid fix to round or square rods
- HL760U can also accept infrared and green beam lasers
- When working in deep excavations the capture mode allows the user to pick up the laser elevation without having to adjust the receiver to the on-grade position –it tells you how far off on-grade you are.
|
|
Spectra Precision HL760U Laser FEATURES and BENEFITS
|
- Digital readout of elevation
- Exact distance from on-grade displayed
- Anti-strobe sensor to prevent false reading from jobsite strobe lights
- Large reception height to ease beam reception
- Withstands a drop of up to 10 feet
- Fingerprint functionnality (when used with LL300S, LL400HV, HV302, GL412N, GL422N, GL612N, GL622N and UL633N) detects only the laser beam of the paired transmitter
- Fingerprint function filters out other lasers that strike the receiver and only accept the laser that it is paired with
- No need to go “on-grade” to measure: saves considerable time
- Reduces rework by allowing remote monitoring
- Increases reliability, accuracy and durability
|
| Spectra Precision HL760U Universal Laser Receiver APPLICATIONS |
- Remote grade checking with cable free Remote Display
- Wireless monitoring of foundations and steel erections
- Risk free monitoring of tilt up wall position
- Setting and checking jobsite elevation and depth for:
- Cut and fills and grading
- Foundations, forms, and footings
- Excavations
|
| Spectra Precision HL760U Universal Laser Receiver APPLICATIONS |
- Working Radius (Laser dependent):1 m – 460 m (3 ft – 1500 ft)
- Laser Detection Height: 127.0 mm (5“)
- Numeric Readout Height: 102.0 mm (4“)
- Internal Radio: Full 2-way communication, operation and security lock with paired device
- Radio Working Radius: Up to 220 m (720 ft), depending on orientation, conditions and paired device
- Accuracy (Deadband): Ultra Fine: 0.5 mm, 0.02 in, 1/32 in Super Fine: 1.0 mm, 0.05 in, 1/16 in Fine: 2.0 mm, 0.10 in, 1/8 in Medium: 5.0 mm, 0.20 in, 1/4 in Coarse: 10.0 mm, 0.50 in, 1/2 in Calibration: 0.1 mm, 0.01 in, 1/64 in
- Reception Angle: ± 45° minimum
- Detectable Spectrum: 610 nm … 780 nm (HL760)/ 520 nm … 780 nm (HL760U)
- Beeper Volumes: Loud = 110 dBA/ Medium = 95 dBA/ Low = 65 dBA
- LED Grade Indicators: Front, Green on-grade, Red Hi, Blue Low
- Power Supply: 2 x 1.5 Volt “AA” batteries
- Battery life: 60+ hours
- Operating temp.: -20°C…+60°C (-4°F… +140°F)
- Storage temp.: -40°C…+70°C (-40°F…+158°F)
- Tripod attachments: 5/8 x 11 horizontally and vertically
- Dust and Water proof: IP67
- Weight: 371 g (13.1 oz.)
|
| QUICK COMPARISON for Spectra Precision Laser Receivers |
| LCD’s |
Beam
Compatability |
Reception
Height |
Digital
Readout |
Drop
Rating |
Warranty |
| HR320 |
Dual |
RED |
2-inch |
arrows |
5-feet |
3 Year LTD
2 Years Free |
| HL450 |
Dual |
RED |
4-inch |
arrows &
distance |
5-feet |
3 Year LTD
2 Years Free |
| HL700 |
Dual |
RED |
5-inch |
arrows &
distance |
10-feet |
3-Year
No Excuse |
| HL750 |
Dual |
RED |
5-inch |
arrows &
distance |
10-feet |
3-Year
No Excuse |
| HL760 |
Dual |
RED |
5-inch |
arrows &
distance |
10-feet |
3-Year
No Excuse |
| HL760U |
Dual |
RED
GREEN |
5-inch |
arrows &
distance |
10-feet |
3-Year
No Excuse |
| CR600 |
Dual |
RED |
5-inch |
arrows &
distance |
10-feet |
3 Year LTD
2 Years Free |
|
| DETAIL COMPARISON for Spectra Precision Laser Receivers |
| HR320 |
HL450 |
HL700 |
HL750 |
HL760 |
HL760U |
CR600 |
Laserometer
w/numeric display |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
| Digital Readout |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
Metric/English
unit of measure |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
| Front/Back Readout |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Machine Mountable |
No |
No |
No |
No |
No |
No |
Yes |
| Self Calibrates |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
| Strobe Rejection |
No |
No |
Yes |
Yes |
Yes |
Yes |
No |
| Advanced Menu |
No |
No |
Yes |
Yes |
Yes |
Yes |
No |
| Rod Level Vial |
No |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
| Water Resistance |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Beam Color |
RED
|
RED
|
RED
|
RED
|
RED
|
RED
GREEN |
RED |
| Reception Height |
2-inch |
4-inch |
5-inch |
5-inch |
5-inch |
5-inch |
5-inch |
| Levels of Accuracy |
2 |
2 |
5 |
5 |
5 |
5 |
5 |
| Drop Rating |
5-feet |
5-feet |
10-feet |
10-feet |
10-feet |
10-feet |
10-feet |
| Exchange Warranty |
3 Year LTD
2 Years Free |
3 Year LTD
2 Years Free |
3 Years Free |
3 Years Free |
3 Years Free |
3 Years Free |
3 Years Free |
| On Grade Positions |
1 |
1 |
2 |
2 |
2 |
2 |
1 |
| Volume Settings |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
| Packaged with |
LL100N
LL100N-1
LL100N-2
LL100N-3
LL300N-8
HV101GC-1
HV101GC-2
HV101GC-3
HV302GC-2
|
LL300N
LL300N-1
LL300N-2
LL300N-3
LL300N-4
LL300S
LL300S-1
LL300S-2
LL300S-3
LL300S-4
HV302
|
LL500
LL500-1
LL500-2
LL500-3
LL500-4
CTO-GL710
CTO-GL720
|
GL612
GL612-1
GL622
GL622-2
UL633
UL633-1
UL633-14
UL633-24
|
LL300S-7
LL300S-17
LL300S-27
LL300S-37
LL300S-47
LL400HV
LL400HV-1
LL400HV-2
LL400HV-4
HV302-7
GL412N
GL422N
|
Optional
for
Green
or
Red
Beam
Lasers |
LL400HV-10
LL500-10
LL500-11
LL500-14
GL412N-14
GL422N-14
GL612-14
GL622-14
CTO-GL710-10
CTO-GL720-10
CTO-GL722
CTO-GL722-IR
|
|
