Spectra Precision HV101 Laser Interior Starter Kit
includes RC601 Remote Control and M101 Wall Mount
Economical Solution for Leveling, Aligning, and Plumb Applications
|
Spectra HV101 Horizontal / Vertical Laser Overview
The automatic, self-leveling Spectra Precision® Laser HV101 Laser is a professional tool with an economical price tag. The HV101 laser is capable of handling a wide variety of horizontal, vertical and plumb applications. It is rugged enough for the toughest jobsite and designed to survive a 3 foot drop onto concrete. The HV101 is backed by the industry’s only 3-year instant over the counter exchange warranty. |

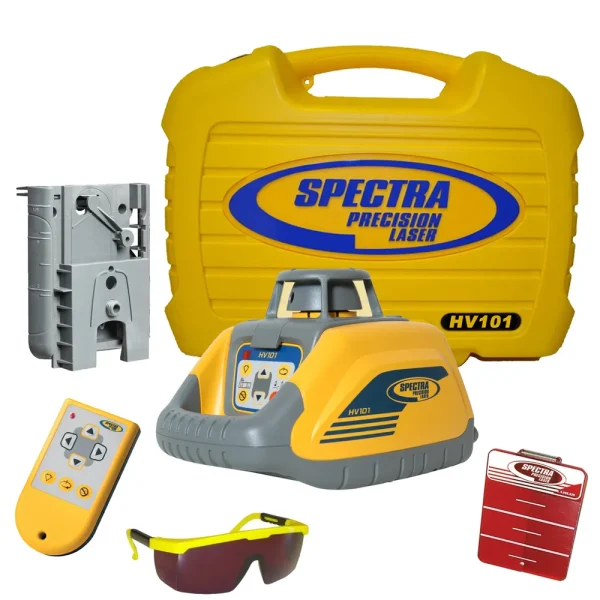

| Spectra Precision HV101 Laser Package Includes |
- HV101 Laser Transmitter
- RemoteControl RC601
- M101 WallMount
- MagneticTarget 1176
- Laser Glasses
- Small Laser Case
- 3-Year Warranty – Instant Over-the-Counter exchange
|
| Spectra Precision HV101 Laser Key FEATURES and BENEFITS |
- Fully automatic self-leveling in both horizontal and vertical provides fast, accurate setup
- Robust design withstands a 3 feet drop on concrete and still remains functional, reducing costs for downtime or repair
- Multiple scanning angles and rotation speeds to match various conditions
- Complete GC packages include everything you need for both interior and exterior work in a convenient system case
- Rotor cage can be removed for exact beam spotting
- Simple controls allow operators to carry out many functions with “one-touch” commands
- Included Remote Control offers scanning, rotation speed, slope settings, and alignment control for fast one man setups
- 3 year “over-the-counter” exchange warranty program eliminates downtime
|
| Spectra Precision HV101 Laser APPLICATIONS |
- Leveling of ceiling grids
- Installation of interior fittings(cabinets, lighting etc.)
- Transferring points from the floor to the ceiling
- Short range leveling for decks and patios
|
| Spectra Precision HV101 Laser Package Comparison Chart |
| Part # |
Receiver |
Grade Rod |
Tripod |
Wall Mount |
Remote |
Case |
| HV101 |
No |
No |
No |
M101 |
RC601 |
Small |
| HV101-4 |
HR150U |
No |
No |
M101 |
RC601 |
Small |
| HV101GC-1 |
HR320 |
Tenths |
Yes |
M101 |
RC601 |
Large |
| HV101GC-2 |
HR320 |
Inches |
Yes |
M101 |
RC601 |
Large |
| HV101GC-3 |
HR320 |
Metric |
Yes |
M101 |
RC601 |
Large |
All part numbers include HV101 transmitter, wall mount, ceiling target,
laser glasses, remote control, case and 2 D-Cell batteries. |
| Spectra Precision HV101 Series Laser SPECIFICATIONS |
| Laser Source |
<5 mW @ 635 nm, Class 3A |
| Laser Accuracy |
±1/8 in at 100 ft (±20 arc seconds)
|
| Operating Range |
100 feet minimum visual
1,000 feet diameter with receiver |
| Self-Leveling Range |
±5 degrees
|
| Compensation Mode |
Electronic self-leveling |
| Power Source |
2 x “D” Alkaline Batteries |
Battery Life
|
50 hours Alkaline |
| Battery Status LED |
Flashing red LED |
| Rotation speed |
Four preset speeds 0, 50, 200, 600 RPM |
| Scan angles |
Five preset angles 3°, 8°, 45°, 90°, 180° |
| Out-of-level warning |
Rotor stops, laser shuts off, red out-of-level LED flashes |
| Operating temperature |
23 °F to 113 °F |
| Storage temperature |
-4 °F to 158 °F |
| Warranty |
3-Year Warranty |
| Water resistant |
Yes, and IP54 sealing |
| Size (inches) |
8.5 length × 6.7 width × 6.0 height |
| Weight |
3.3 lbs |
|
| Spectra Horizontal Vertical Laser Comparison Chart |
| MODEL |
HV101 |
HV302 |
HV302G |
| INTERIOR / EXTERIOR |
INTERIOR / EXTERIOR |
INTERIOR ONLY |
| Beam Color |
RED |
RED |
GREEN |
| Accuracy |
1/8-inch @ 100-feet |
1/16-inch @ 100-feet |
1/16-inch @ 100-feet |
| Operating Diameter |
1,150-feet Receiver
200-feet Visible |
2,600-feet Receiver
330-feet Visible |
2,600-feet Receiver
250-feet Visible |
| Self Leveling Range |
±5 degrees electronic servo self-leveling |
| Power Source |
2 x D-cell |
4 x D-cell |
| Battery Life |
50-hours Alkaline |
60-hours Alkaline
45-hours NiMH |
25-hours Alkaline
30-hours NiMH |
| Water Resistance |
Yes IP54 |
Yes IP66 |
| Size (inches) |
8.5 x 6.7 x 6.0 |
10.7 x 7.7 x 7.9 |
| Receiver |
HR320
2-inch Reception Height |
HL760
5-inch Reception Height |
| Warranty |
3-Year |
5-Year |
5-Year |
| Remote Control |
RC601 |
RC402N Deluxe |
RC402N |
|
