Spectra Precision HV101GC-1 Laser GC Package Tenths
includes HR320 Receiver, RC601 Remote Control, M101 Wall Mount,
1176 Target, Tripod, Measuring Rod Tenths and All in One Case
Economical Solution for Leveling, Aligning, and Plumb Applications
|
Spectra HV101GC-1 Horizontal / Vertical Laser Overview
The automatic, self-leveling Spectra Precision® Laser HV101 Laser is a professional tool with an economical price tag. The HV101 laser is capable of handling a wide variety of horizontal, vertical and plumb applications. It is rugged enough for the toughest jobsite and designed to survive a 3 foot drop onto concrete. The HV101 is backed by the industry’s only 3-year instant over the counter exchange warranty. |

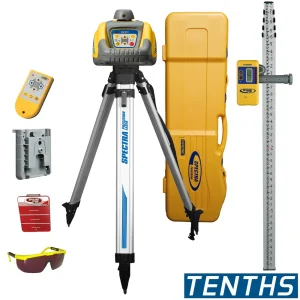

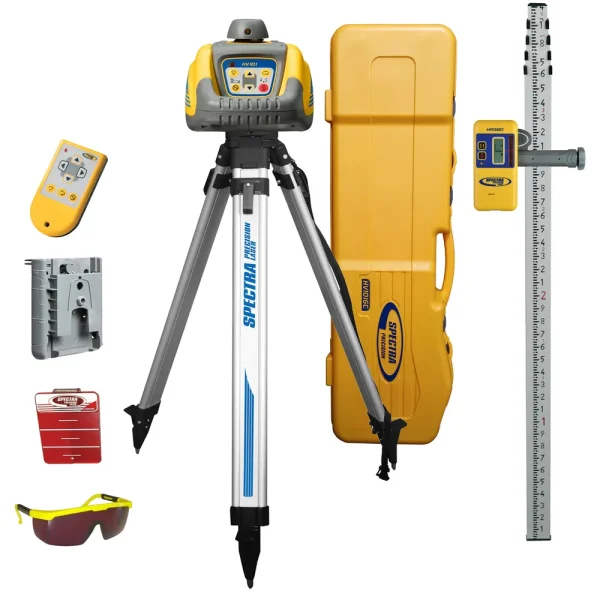

| Spectra Precision HV101GC-1 Laser Package Includes |

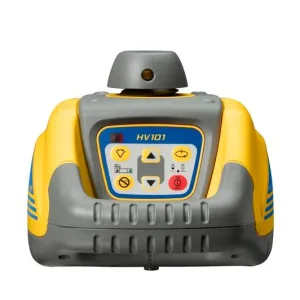

- HV101 Laser Transmitter
- Receiver HR320 with Clamp C59
- RemoteControl RC601
- M101 WallMount
- Measuring Rod GR151 measurement Tenths 15-Foot
- Aluminum Tripod model Q104125
- MagneticTarget 1176
- Laser Glasses

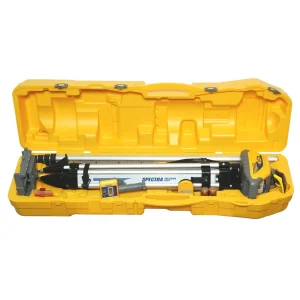

- “All in One” Large Laser Carrying Case
- 3-Year Warranty – Instant Over-the-Counter exchange
|
| Spectra Precision HV101 Laser Key FEATURES and BENEFITS |
- Fully automatic self-leveling in both horizontal and vertical provides fast, accurate setup
- Robust design withstands a 3 ft (1m) drop on concrete and still remains functional, reducing costs for downtime or repair
- Multiple scanning angles and rotation speeds to match various conditions
- Complete GC packages include everything you need for both interior and exterior work in a convenient system case
- Rotor cage can be removed for exact beam spotting
- Simple controls allow operators to carry out many functions with “one-touch” commands
- Included Remote Control offers scanning, rotation speed, slope settings, and alignment control for fast one man setups
- 3 year “over-the-counter” exchange warranty program eliminates downtime
|
| Spectra Precision HV101 Laser APPLICATIONS |
- Leveling of ceiling grids
- Installation of interior fittings(cabinets, lighting etc.)
- Transferring points from the floor to the ceiling
- Short range leveling for decks and patios
|
| Spectra Precision HV101 Laser Package Comparison Chart |
| Part # |
Receiver |
Grade Rod |
Tripod |
Wall Mount |
Remote |
Case |
| HV101 |
No |
No |
No |
M101 |
RC601 |
Small |
| HV101-4 |
HR150U |
No |
No |
M101 |
RC601 |
Small |
| HV101GC-1 |
HR320 |
Tenths |
Yes |
M101 |
RC601 |
Large |
| HV101GC-2 |
HR320 |
Inches |
Yes |
M101 |
RC601 |
Large |
| HV101GC-3 |
HR320 |
Metric |
Yes |
M101 |
RC601 |
Large |
All part numbers include HV101 transmitter, wall mount, ceiling target,
laser glasses, remote control, case and 2 D-Cell batteries. |
| Spectra Horizontal Vertical Laser Comparison Chart |
| MODEL |
HV101 |
HV302 |
HV302G |
| INTERIOR / EXTERIOR |
INTERIOR / EXTERIOR |
INTERIOR ONLY |
| Beam Color |
RED |
RED |
GREEN |
| Accuracy |
1/8-inch @ 100-feet |
1/16-inch @ 100-feet |
1/16-inch @ 100-feet |
| Operating Diameter |
1,150-feet Receiver
200-feet Visible |
2,600-feet Receiver
330-feet Visible |
2,600-feet Receiver
250-feet Visible |
| Self Leveling Range |
±5 degrees electronic servo self-leveling |
| Power Source |
2 x D-cell |
4 x D-cell |
| Battery Life |
50-hours Alkaline |
60-hours Alkaline
45-hours NiMH |
25-hours Alkaline
30-hours NiMH |
| Water Resistance |
Yes IP54 |
Yes IP66 |
| Size (inches) |
8.5 x 6.7 x 6.0 |
10.7 x 7.7 x 7.9 |
| Receiver |
HR320
2-inch Reception Height |
HL760
5-inch Reception Height |
| Warranty |
3-Year |
5-Year |
5-Year |
| Remote Control |
RC601 |
RC402N Deluxe |
RC402N |
|
| Spectra Precision HV101 Series Laser SPECIFICATIONS |
| Laser Source |
<5 mW @ 635 nm, Class 3A |
| Laser Accuracy |
±1/8 in at 100 ft (±20 arc seconds)
|
| Operating Range |
100 feet minimum visual
1,000 feet diameter with receiver |
| Self-Leveling Range |
±5 degrees
|
| Compensation Mode |
Electronic self-leveling |
| Power Source |
2 x “D” Alkaline Batteries |
Battery Life
|
50 hours Alkaline |
| Battery Status LED |
Flashing red LED |
| Rotation speed |
Four preset speeds 0, 50, 200, 600 RPM |
| Scan angles |
Five preset angles 3°, 8°, 45°, 90°, 180° |
| Out-of-level warning |
Rotor stops, laser shuts off, red out-of-level LED flashes |
| Operating temperature |
23 °F to 113 °F |
| Storage temperature |
-4 °F to 158 °F |
| Warranty |
3-Year Warranty |
| Water resistant |
Yes, and IP54 sealing |
| Size (inches) |
8.5 length × 6.7 width × 6.0 height |
| Weight |
3.3 lbs |
|
