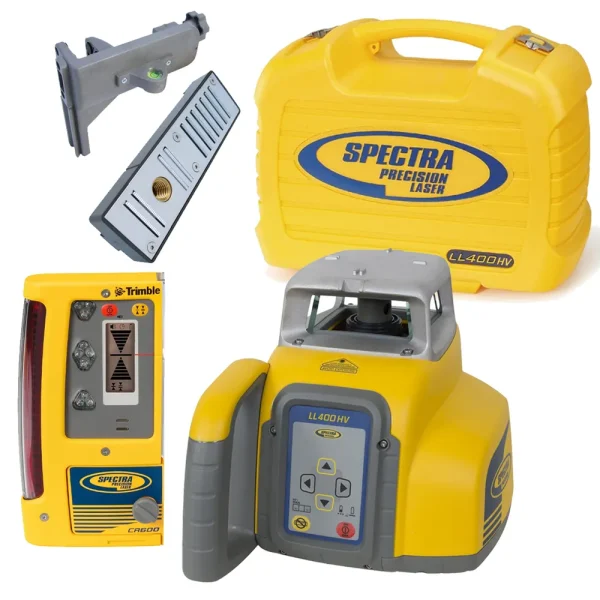

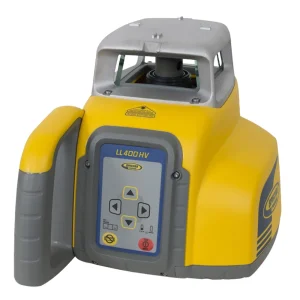

| Spectra LL400HV-10 Laser Level – Discontinued |
| The Spectra Precision® LL400HV Laser Level has been discontinued and is no longer available. Warranty and service support will continue.
This purpose to discontinue the LL400HV is to reduce the large number of configurations and simplify our product offerings. All applications for the LL400HV are completely covered by HV302 configurations. The HV302 has, in addition to all of the LL400HV functionality, a vertical plumb beam that can be used for 90 degree layout.
New HV302 configurations that include the HL760 Digital Readout Receiver are also being introduced. The HL760 includes radio communication capability and allows for advanced functions including GradeMatch, PlanLok and Fingerprinting. These packages are ideal for general construction.
The LL300S remains our premium laser for customers whose main application is horizontal leveling and occasional manual grade. We have updated some LL300S kits that include the HL760 as the standard receiver and also adjusted some prices to make them more competitive.
Below are summaries of the new HV302 and LL300S configurations. |
| OLD Kit Model # |
LL400HV
LL400HV-10 |
LL400HV-4
|
LL400HV-1
LL400HV-2 |
NEW Kit Model #
|
HV302 |
HV302-4 |
HV302-7 |
HV302GC-2 |
| Receiver |
HL760 |
HL760 |
HL760 |
HL760 |
Power Batteries
|
Alkaline |
NiMH |
NiMH |
Alkaline
|
| Rod |
N/A |
N/A |
N/A |
GR152 inches |
| Tripod |
N/A |
N/A |
N/A |
Q104025 |
| Vertical Adapter |
YES |
YES |
YES |
YES |
| Target |
N/A |
N/A |
YES |
N/A |
| Wall Mount |
N/A |
N/A |
M302 |
N/A |
| Remote |
RC402N |
RC402N |
RC402N |
RC402N |
| Case |
small |
small |
small |
System LARGE
|
List Price
|
$1,345 |
$1,445 |
$1,545 |
$1,545 |
| Notes |
NEW
Alkaline
Batteries
–
NEW
Remote
–
Replaces
LL400HV
|
NEW KIT
Rechargeable
Batteries
–
NEW
Remote
–
Replaces
LL400HV |
Competitive
Interior Kit
–
Provides
Auto line
–
NEW
Remote
–
NEW
Wall Mount
–
NEW
Vertical Adapter
for
Vertical
Applications
and
Sloped Ceilings |
Full Exterior Kit
–
Provides ALL
Automatic Functions
including
GradeMatch
PlaneLok
–
Rod and Tripod
Included
–
Recommended
Replacement for
LL400HV
|
|
Below is a table showing the recommended replacement
for discontinued LL400HV series packages |
NEW >>
OLD
|
HV302 |
HV302-4 |
HV302GC-2 |
| LL400HV |
Premium |
–
|
– |
| LL400HV-1 |
– |
– |
Premium
|
| LL400HV-2 |
ok with minor variations |
ok with minor variations |
Premium |
| LL400HV-4 |
ok with minor variations |
Premium |
NO |
| LL400HV-10 |
Premium |
ok with minor variations |
NO |
|
|
– DISCONTINUED – LL400HV Key Features
|
| – DISCONTINUED – LL400HV-10 Key Features and Benefits |
- 2,600 ft (800 m) working diameter which increases productivity by reducing need for
multiple set-ups on a large job site
- Fast setup, minimal training time and automatic self-leveling minimize operating costs and boost productivity
- Highly rugged design and patented lighthouse seal protects the rotor head and glass andoffers superior drop and weather protection for reduced downtime
- Single-axis slope mode provides grade matching with self-leveling cross axis for improved accuracy
- Automatic Grade Match and PlaneLok capability using the optional RC402N remote control
- Energy-efficient design offers choice of NiMH rechargeable or alkaline batteries for lower operating costs
- Temperature calibrated for high accuracy over wide temperature changes
- IP66 dust- and water-proof to withstand harsh jobsite conditions
- Flexible power options and minimal power costs
due to long battery life

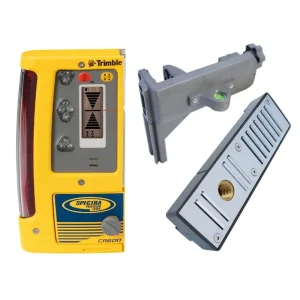

- Customizable with choice of HL760 or CR600 receivers. Fingerprinting function can be used when used in conjunction with
HL760 receiver
|
| – DISCONTINUED – LL400HV-10 Applications |
- Checking/setting elevations, concrete forms, footings, and foundations for large commercial jobs
- Basic slope work such as driveways and ramps
|
| – DISCONTINUED – LL400HV-10 Machine Control Applications |
- Excavating for forms or footers with CR600 receiver
- Sub-base leveling with skid steer loaders and CR600 receiver
- Long range machine control applications
|
