The Spectra Precision® LT52R is the Tool for All Trades.
with Rechargeable Lithium Batteries
It eliminates the need for a contractor to purchase two tools by combining a 5 beam laser pointer with a horizontal and vertical cross line laser into one product. The versatile, automatic self-leveling laser tool can be used in a wide variety of construction applications. |

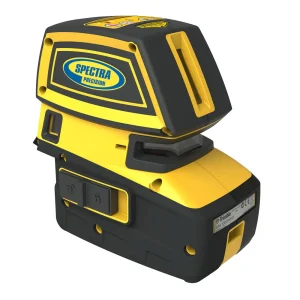

Spectra Precision LT52R OVERVIEW
The Spectra Precision® LT52R Laser Tool is an automatic self-leveling multi-purpose tool that can be used in a wide variety of construction applications. It eliminates the need for a contractor to purchase two tools – a 5 beam pointer and a crossline laser – by combining both into one versatile product. For interior building and remodeling, the laser is used for horizontal and vertical alignment, wall layout, acoustic ceiling installation, point transfer up and down, wall and floor tiles, finish carpentry and 90 degree squaring. The lines and points are the brightest in the industry. Robustness is assured with a 3 foot drop |

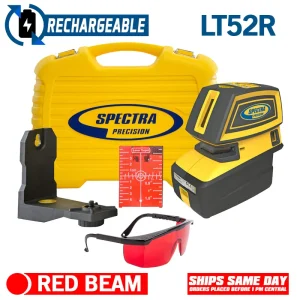

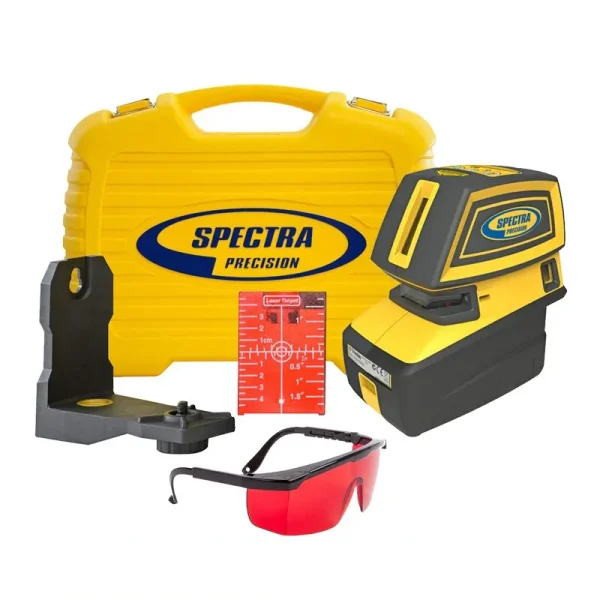

| Spectra Precision LT52R Laser Package INCLUDES |
- LT52R Poing and Crossline Laser Transmitter
- Magnetic Mounting Bracket : M152
- Red Target : 23416
- Red Laser Glasses
- Batteries : Rechargeable Lithium Batteries
- Battery Charger : 1215-1610
- Protective Case : 1215-1740
|
|
| Spectra Precision LT52R Laser HIGHLIGHTS |
- THE BEST VALUE
- RECHARGEABLE Lithium-Ion Batteries
- BRIGHTER POINTS with LONGEST DISTANCE
- BRIGHTER LINES with LONGEST DISTANCE
- 210° HORIZONTAL LINE
- LINES INTERSECT POINTS
- MORE ACCURATE
- MORE ROBUST – The Only Brand Warranted for a 3-Foot Drop
|
| Spectra Precision LT52R FEATURES and BENEFITS |
- Eliminates the need for contractors to purchase two tools by combining a 5-beam pointer and a crossline laser into one product
- Automatic self-leveling assures accuracy and fast setup
- Versatile tool does multiple jobs – set it up once and work plumb, level and square in the whole area
- The industry’s brightest crosslines and points for easy viewing in all conditions – points are visible up to 200 feet

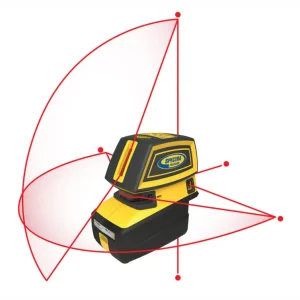

- Wide 210° horizontal line intersects side points; Vertical up beam intersects up point
- Down point clears floor track, no accessory required
- Rechargeable Lithium-Ion battery life – 12 to 16 hours
- In addition the LT52R can be powered on AC for Back-Up
- 3 year instant exchange warranty minimizes downtime
- Water, mud, and shock resistant, able to withstand a 3-foot drop onto concrete… IP54 rated
- Optional HR220 receiver can be added for exterior applications for maximum jobsite versatility
|
Spectra Precision LT52R SPECIFICATIONS
|
| Accuracy |
1/8-inch @ 50 foot |
| Visual Distance – Points |
200-foot |
| Visual Distance – Lines |
100-foot |
Distance with Optional LaserReceiver
|
250-foot |
Laser Power
|
Less than 1 mw
|
Laser Class / Wavelength
|
Class 2 / 520 nm
|
| Mounting (2 sizes) |
5/8-11 and 1/4-20 |
| Batteries |
Rechargeable Lithium-Ion Batteries
3.7V, 4800mAh
|
Battery Life
|
35 to 40 hours – Points
12 to 16 hours – Lines |
Out of Level Indication
|
Flashing beam, triple flash every 10 sec |
Self-Leveling Range
|
±3 degrees
|
Dust and Water Resistance
|
IP54 |
Operating Temperature
|
14° to 113° Fahrenheit
|
Storage Temperature
|
-4° to 140° Fahrenheit |
Size (L x W x H)
|
5.7 x 3.0 x 5.9 inches |
| Weight |
6.5 lbs |
| Warranty |
3-Years |
| 3 Year Warranty includes Free Instant Over-the-Counter Exchange for the first 2 years and supplemental charge for the 3rd year. Warranty Covers 3-foot drop. |
|
The Spectra 5.2XL Point and Line Laser Tools was the First “Combo” Laser
It set the Gold Standard – A Very Successful Strong Seller |
| Now the LT52R Laser is here and it is a Step ABOVE in Quality and Performance |
| Improvements to the LT52R |
- Visible down beam clears 2-inch floor track
- Accuracy improved 50% on all Lines and Points
- Points are now concise and round – easy to mark
- Points are brighter – visible up to 200-foot – the brightest!
- 210° Horizontal line intersects the side dots
- Lines are much brighter
- All models ship in a hard carrying case
- Rechargeable Lithium-Ion Batteries
- Pendulum lock mechanism improved
- New laser tool look – strong, clean and ergonomic
- Powerful Class 2 laser tool
- Down point is visible without the addition magnetic mount adapter
|
| Compare the LT52R to the competition: |
- More points, better spots. Longer distance points.
- Longer lines, Brighter lines.
- Spot quality second to none – spot is concise and round.
- Brightest spot – visible up to 200 feet
- Equates to a PLS4 + PLS5 in one unit.
- Visible down point clears 2-inch floor track
- Down point automatically aligns to floor track without an accessory
- Heavy-Duty overmold and 3-foot drop specification
- The only drop spec in the industry
- Best warranty in the Industry – 3 YEARS
|
|
