WALL MOUNT FOR SPECTRA PRECISION HV301, HV301G, HV302 and HV302G LASERS

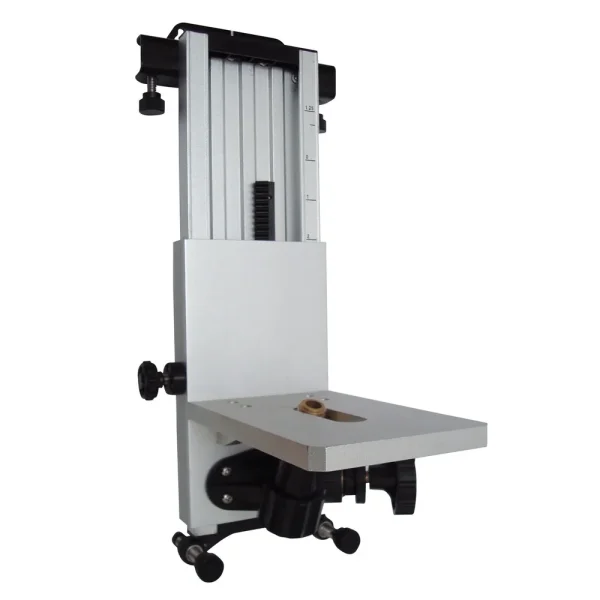

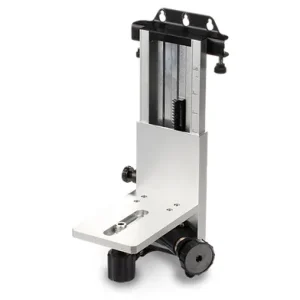

This Heavy-Duty Aluminum Spectra M302 Wall and Ceiling mount can be used on any laser that has a 5/8-11 mounting base.
The Wall Mount for HV302 and HV302G Self-Leveling Laser gives a safe holding for attaching and mounting the laser to the ceiling trim using clamps for wall positions. This wall mount works with HV302 and HV302G self-leveling lasers. In addition, it is made of both plastic and metal.
- Nail Holes (3) – allows you to hang the wall mount onto nails or screws.
- Locking Screws – lock/unlock the wall mount at the wall molding or floor track.
- Locking Knob—tightens/loosens the sliding bracket in place after it has been positioned along the elevation scale.
- 5/8“ –11 Laser Mount – lets you connect the laser to the wall mount.
- Fine height adjustment screw—lets you fine adjust the laser’s position on the wall mount.
- Adjustment screw – adjust the slider‘s movement tightness considering the laser weigth.
- Elevation Scale – provides graduated marks that indicate the position of the laser relative to the wall molding height. The adjustment range on the scale is from 3.1 cm (1-1/4 inch) above wall-molding height to 5 cm (2 inch) below it. (The “–2“ position is aligned with the horizontal centerline at the ceiling target.)
- Reading Edge – allows you to adjust the laser position appropriate for your application needs.
- Vertical-Alignment Notch—shows the position of the laser beam when the laser is set up in vertical mode and is moved up to the top (3.1 cm [1 1/4 in.]) stop.
Note: The laser handle should be used as a safety hole —provide a place to tie a safety wire when mounted to a wall. |
