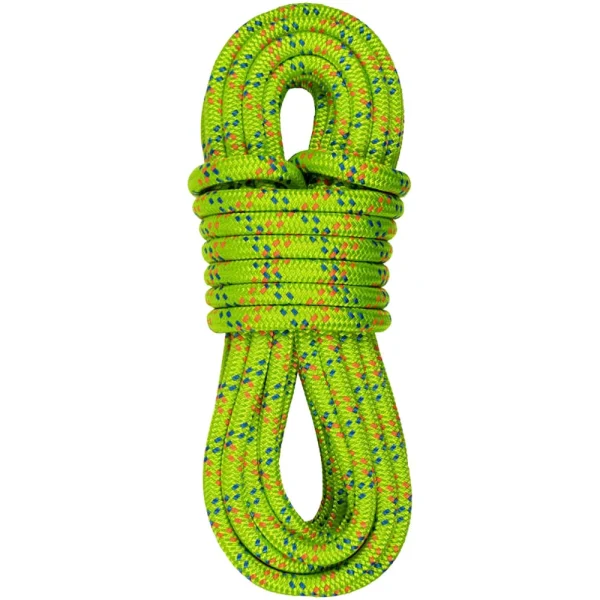

Sterling Atlas Rigging Line, 9/16˝ x 200´
All Sterling Atlas rigging lines feature double-braid construction for outstanding overall strength. The nylon core design lowers static elongation while still absorbing energy to limit peak forces in negative rigging applications. A tightly braided polyester sheath resists picking, protects the core, and maintains excellent handling and flexibility. All diameters work well with Port-a-Wrap, capstan winches, and rigging blocks, and all are spliceable. The Sterling Atlas line balances durability, performance, and smooth handling across a range of load capacities. Meets ANSI Z133.
| Brand | Sterling |
| MPN | ATLAS-BL-200-NS |
| UPC | 846604041014 |
| UNSPSC | 24111510 |
| Made In | United States |
| Other |
1/2˝ Diameter – Strands: 32. Minimum Break Strength: 9,750 lbs. (51.1 kN). Average Break Strength: 11,500 lbs. (51.2 kN). Elongation: 4.1% at 975 lbs. Weight: 7.9 lbs. per 100 ft. Working Load Limit: 1,150 lbs. (5.1 kN).
9/16˝ Diameter – Strands: 32. Minimum Break Strength: 11,600 lbs. (57.8 kN). Average Break Strength: 13,750 lbs. (61.1 kN). Elongation: 4.5% at 1,160 lbs. Weight: 8.9 lbs. per 100 ft. Working Load Limit: 1,375 lbs. (6.1 kN). 5/8˝ Diameter – Strands: 32. Minimum Break Strength: 16,450 lbs. (86.3 kN). Average Break Strength: 19,400 lbs. (86.3 kN). Elongation: 4.5% at 1,645 lbs. Weight: 13.5 lbs. per 100 ft. Working Load Limit: 1,940 lbs. (8.6 kN). 3/4˝ Diameter – Strands: 32. Minimum Break Strength: 19,100 lbs. (99.9 kN). Average Break Strength: 22,480 lbs. (100 kN). Elongation: 4.3% at 1,910 lbs. Weight: 17.3 lbs. per 100 ft. Working Load Limit: 2,248 lbs. (10 kN). |
