TEMPO 9″ CATCH BASIN KIT (BLACK GRATE)

Original price was: $59.25.Current price is: $17.78.

Availability: 8 in stock

🚚 Free Shipping over $39
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 71518bbf4cb83fd06f5dc8bb36d6a8d7
CATEGORY: Drains & Traps
Description

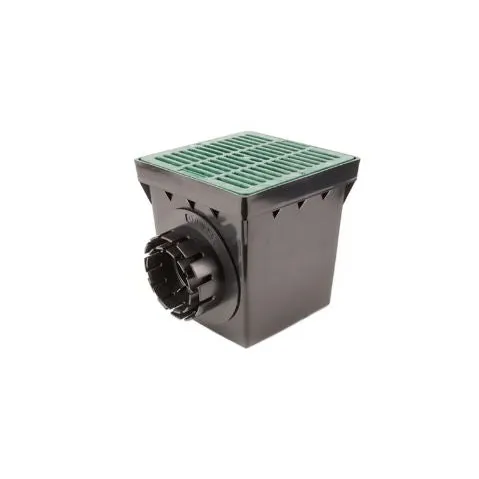

A Square Catch Basin manufactured from High Density Polyethylene (HDPE) which is used to collect and discharge excess water in order to prevent potential damage to landscapes and property. This catch basin is available with 2 or 4 side openings and 1 optional opening at the bottom which can be cut out along the perforations. Additionally, there are 4 small perforated drainage holes on the bottom of the basin which can be cut out to remove standing water in the sump. A Basin Adapter (ABA34)can be attached to the opening(s) to connect to 3″ & 4″ Sewer & Drain Pipe, 3″ & 4″ Corrugated Pipe and 3″ & 4″ Triple Wall Pipe. ABasin Adapter (ABA6)can be attached to the opening(s) to connect to 6″ Sewer & Drain Pipe and 6″ Corrugated Pipe. ABasin Plug (ABP)can be used to plug any unused opening(s). This basin is designed to accept the12″ Square Flatand12″ Square Atriumgrates. To raise height of basin to grade, use aBasin Riser (ABR12). In order to prevent theft and vandalism the basin comes with 4 holes to allow grate to be secured to basin. Also available in a9″and18″model.

Dimensions: 9.25″ length x 12.25″ width x 9.25″ height
Weight: 2.00 lbs. for 2 outlet, 1.60 lbs. for 4 outlet
Basin Capacity: 2.2 gallons
Sump Capacity:
.45 gallons
Quantity of Side Outlets:
2 or 4
Quantity of Optional Bottom Outlets: 1
Quantity of Optional Bottom Drain Holes: 4
Material: High Density Polyethylene (HDPE)
