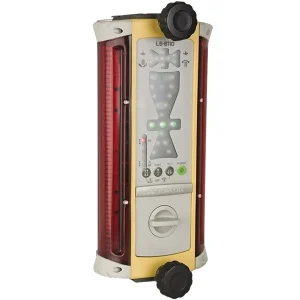

Topcon LS-B110 Laser Machine Display Receiver 312670111

The LS-B110 series includes a plumb and tilt indication for an increased accuracy. It comes with a multicolored LED display for easy and hassle-free reading. Also, it includes four detection precision modes and one touch “On Grade” matching. For secure and slip-free attachment on machines, it includes built-in mechanical clamps.

Using four C alkaline batteries, this machine control receiver can operate up to 80 hours with -20°C to 50°C operating temperature. With an IP66 environmental rating, it is dustproof and waterproof.

Topcon LS-B110 Configuration Options

312670111: Topcon LS-B110 Non-Wireless Laser Receiver
312670121: Topcon LS-B110W Wireless Laser Receiver
312670121 PRO: Topcon LS-B110W PRO Wireless Laser Receiver with Wireless RD-100W Remote Display

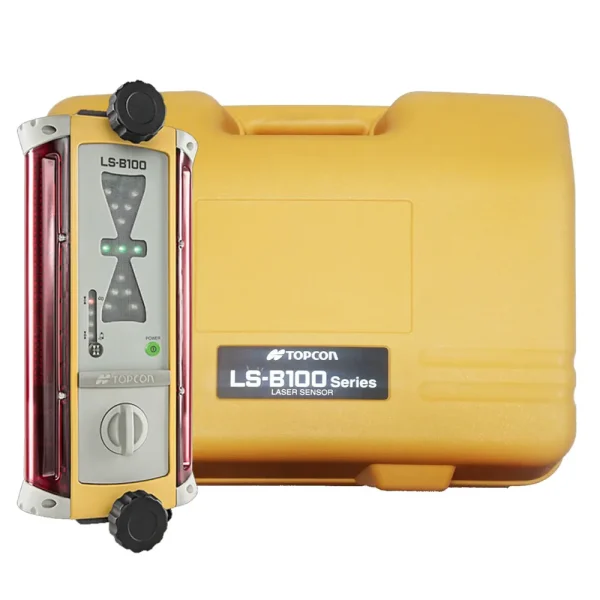

• Topcon LS-B110 (312670111) Machine Control Receiver
• Hard carry case
• 4 x C Alkaline batteries
• User manual
• 1-year manufacturer’s warranty

• 360° laser reception angle

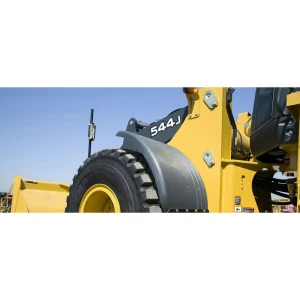

• Mechanical clamp mount for secure and slip-free attachment on machines
• Plumb and tilt indication
• LED indicators
• 4 detection precision modes
• 1 touch “On Grade” matching
• (4) C-Cell alkaline batteries
• Operates up to 80 hrs
• -4°F to 122°F operating temperature
• Dustproof and water resistant, IP66 rating
• Cost-effective and time-saving

GENERAL TOPCON LS-B110 MACHINE RECEIVER
Type of Attachment Mechanical clamp (built-in)
Dimensions 6.2-inch Length x 6.5-inch Width x 14-inch Height
Weight 4.4 lbs
Protection Class IP66 (protection against dust, water jets and heavy seas)
Warranty 1-Year

LS-B110 MACHINE RECEIVER ACCURACY
Super Fine 3mm
Fine 6mm
Medium 15mm
Coarse 30mm

BATTERY POWER
Battery Life 100-hours
Low Battery Indicator Yes
Power Source C-Cell Dry Cells – Battery Pack BT-68Q

TEMPERATURE LS-B110 SPECIFICATIONS
Operating -4°F~122°F

TOPCON LS-B110 FEATURES
Automatic Shut-Off After 30-minutes
Reception Angle 360°
LED Indicators Green On-grade, Red Up, Red Down
Laser Detection Height 6.8-inches
