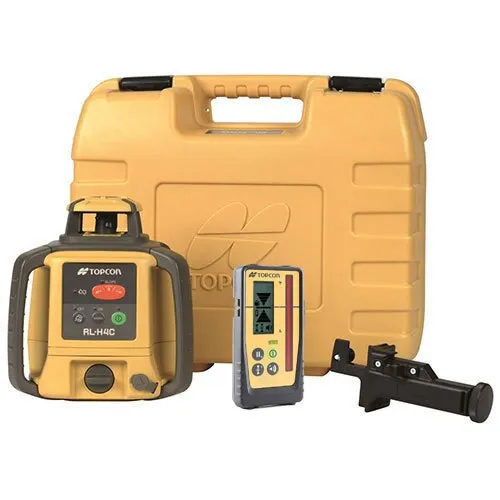

TOPCON RL-4HC – RB 313980772
Self-Leveling Rotary Laser Level Rechargeable Batteries Package |
| Includes: LS100D Receiver and Rechargeable Batteries
|
| Next Generaton Self-Leveling Construction Laser |
| The Topcon RL-H4C auto-leveling laser level combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arc seconds meaning whether you’re checking grade or setting batter boards you are going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600′ diameter working range (with detector use) making it a great reference for machine mounted receivers. The 635nm visible beam means it can even be used for interior alignment applications from setting piers and decking, to wall and even cabinet alignment. All of these features plus rechargeable batteries makes the Topcon RL-H4C Laser more than twice the laser offered by anyone else. |
Topcon RL-4HC TOP FEATURES

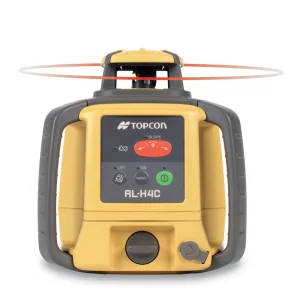

- Self-Leveling Horizontal Beam
- Long Range Operation 2,600 ft diameter
- High Horizontal Accuracy 1/16-inch @ 100-feet
- Simple, intuitive manual slope capability
- Tough IP66 Rating – Dust and Water Rating
- Self-Leveling Range ± 5 degrees
- Long battery life – 60 hours on rechargeable batteries
- Out of Level Notification
|

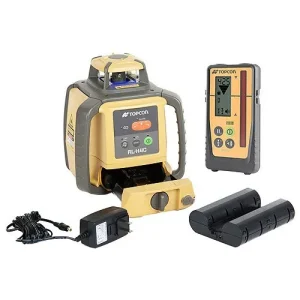

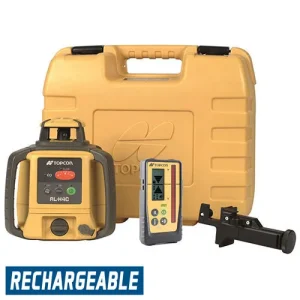

| Topcon RL-4HC (313980772) Laser Kit INCLUDES |
- RL-H4C Horizontal Laser (Rechargeable Battery Package)
- LS-100D Laser Receiver Sensor 1011989-01
- Receiver Rod Clamp Holder 100 (1011990-01)
- NiMH Rechargeable Battery Pack BT-74Q (313680404)
- Rechargeable Battery Holder 313680402
- Battery Charger (AD-15) 1012845-01
- Rugged Hard Shell Carrying Case
- 5-Year Warranty Guarantee
Note: Rechargeable batteries can be removed and replaced with Standard 4-D Cell Alkaline Batteries |
|
|
MULTI-PURPOSE LASER
Grading, excavating and general construction projects are perfect applications for the RL-4HC. With the added “Slope Matching” feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the Topcon RL-4HC a great match with any machine mounted laser sensor.
EASY TO USE
With electronic self-leveling you press the power button and go right to work in seconds. If the TOPCON RL-4HC gets disturbed on the job it re-levels itself automatically. The Self-Leveling motors are accurate to ± 10 arc seconds.
LONG RANGE OPERATION
Need to shoot elevations up to 1,300 feet from your laser? No problem, this TOPCON RL-4HC has a workable power and range of 2,600 feet diameter on the jobsite.
ALL WEATHER DEPENDABILITY
With the IP66 rating, the TOPCON RL-4HC is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.
|
|
5-YEAR GUARANTEE
The TOPCON RL-4HC Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.
|
| Topcon RL-4HC Laser SPECIFICATIONS |
| Accuracy |
1/16-inch @ 100-feet |
| Self-Leveling Range |
± 5 degrees |
| Working Range diameter |
2,600 feet |
| Rotation Speed |
600 RPM |
| Light Source |
Visible Red Laser 635NM |
| Laser Class |
CDRH(FDA) IIIa JIS/IEC 3R |
| Dust / Water Rating |
IP66 |
| Operation Time |
Alkaline: 100 hours
Rechargeable NiMH: 60 hours |
| Operational Temp |
-4ºF to 122ºF |
| Size |
7.0 x 7.7 x 8.5 in |
| Maximum Power Output |
2.4mW |
| Tripod Screw Thread |
5/8-11 |
|
| Topcon RL-4HC Laser Series COMPARISON |
| Series |
RL-4HC RB |
RL-4HC DB |
| Model |
313980722 |
323980752 |
| Laser |
RL-4HC |
RL-4HC |
| Receiver |
LS-100D |
LS-80L |
| Batteries |
Rechargeable |
Alkaline |
| All laser prices are discounted in shopping cart |
|
| INCLUDED Topcon LS-100D Receiver Sensor OVERVIEW |
|
Versatile and designed for maximum user convenience, the LS-100D features a digital readout to confidently deliver elevation and vertical alignment control on demand.
It features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures. The large and bright LCD displays (front and rear) feature 9-channels of grade information and digitally show the distance to on-grade. By pressing the Hold button, the display is locked so the user can conveniently read the the results. For added versatility, three colored LED’s and a strong magnet mount are embedded for vertical operation, ideal for steal erection or operator grade checking while excavating.
To assist in monitoring the Topcon rotating laser, alert icons appear on the LCD if the instrument is disturbed (HI Alert) or when the laser battery is low.
|
| TOPCON LS-100D Laser Receiver SPECIFICATIONS |
Working Range (diameter)
|
2,500 feet with the RLHC, RL-SV2S, and RL-200 Series Lasers
|
Vertical Detecting Range
|
3.5 inch
|
LCD Digital Readout Range
|
2.7 inch
|
Horizontal Detecting Range
|
±45º |
Strobe Light Suppression
|
Yes |
Units / Measurements
|
mm / cm / inch / fractional inch
|
Grade Resolution Settings
|
±0.02 inch
±0.05 inch
±0.10 inch
±0.20 inch
±0.50 inch |
LCD Grade Indicators
|
9 Channels
|
| LED Grade Indicators |
Orange, Green, Red (On/Off selectable)
|
| Display |
LCD on each side
|
Buzzer
|
Loud / Low / Off selectable
|
Bubble Tube
|
Yes |
Warning Icons
|
HI Alert, Low Battery (for the RL-4HC, RL-SV2S, and RL-200 Series)
|
| Battery |
One AA/LR6 dry-cell battery
|
| Operation Time |
Up to 45 hours with alkaline batteries |
| Battery Level indicator |
LCD Icon |
| Auto Shut-off |
Approximately 30 minutes |
| Dust/Water Rating |
IP67 |
| Operating Temperature |
-4ºF to 122ºF |
Dimensions ( L x W x H )
|
| Weight |
Magnetic Mount
|
Two Round Magnets on Top
|
Receiver Sensor Bracket
|
Screw mount
| |
