Topcon RL-H5A-BCA / 1021200-50-BCA Bare Laser with Carrying Case – Alkaline

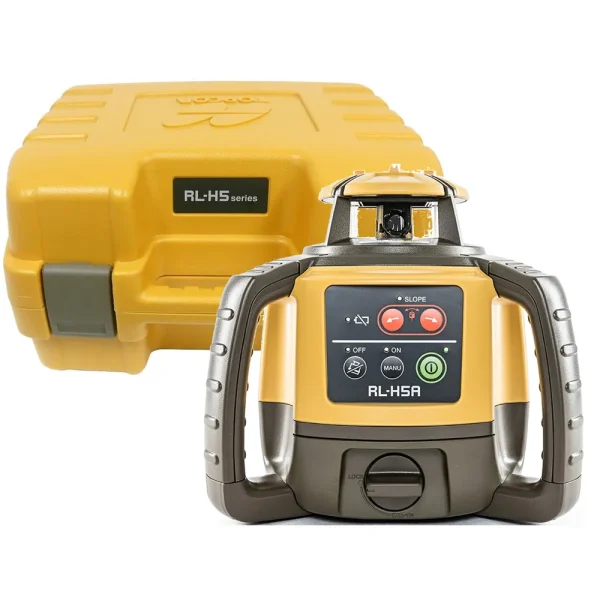

Topcon RL-H5A-BCA / 1021200-50-BCA Bare Laser with Carrying Case – Alkaline

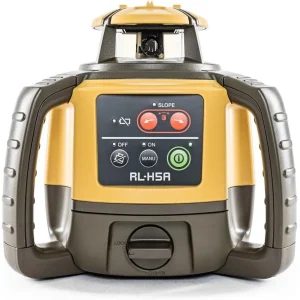

Topcon RL-H5A-BCA / 1021200-50-BCA Bare Laser with Carrying Case – Alkaline - view 2
Lasers & Levels

Topcon RL-H5A-BCA / 1021200-50-BCA Bare Laser with Carrying Case – Alkaline

Original price was: $559.00.Current price is: $109.88.

Availability: 10 in stock

🚚 Free Shipping over $39
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: Topcon 1021200-50-BCA
CATEGORY: Lasers & Levels
Description
TOPCON RL-H5A – PS.DB2 1021200-50-BCA
Self-Leveling Rotary Laser Level Alkaline Batteries Package
Includes: RL-H5A Laser Transmitter and Protective Carrying Case – Receiver NOT included.
Next Generation Self-Leveling Construction Laser
The Topcon RL-H5A auto-leveling laser level combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arc seconds meaning whether you’re checking grade or setting batter boards you are going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600′ diameter working range (with detector use) making it a great reference for machine mounted receivers. The 635nm visible beam means it can even be used for interior alignment applications from setting piers and decking, to wall and even cabinet alignment. All of these features makes the Topcon RL-H5A Laser more than twice the laser offered by anyone else.

Topcon RL-H5A TOP FEATURES

  • Self-Leveling Horizontal Beam
  • Long Range Operation 2,600 ft diameter
  • High Horizontal Accuracy 1/16-inch @ 100-feet
  • Simple, intuitive manual slope capability
  • Tough IP66 Rating – Dust and Water Rating
  • Self-Leveling Range ± 5 degrees
  • Long Alkaline battery life – 100 hours
  • Out of Level Notification
Topcon RL-H5A (1021200-50-BCA) Laser Kit INCLUDES
  • RL-H5A Horizontal Long Range Laser Transmitter 1021200-50
  • Receiver Rod Clamp Holder 6 312890112
  • uses (4) D-Cell Alkaline Batteries (NOT INCLUDED)
  • Rugged Hard Shell Carrying Case
  • 5-Year Warranty Guarantee

MULTI-PURPOSE LASER
Grading, excavating and general construction projects are perfect applications for the RL-H5A. With the added “Slope Matching” feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the Topcon RL-H5A a great match with any machine mounted laser sensor.

EASY TO USE
With electronic self-leveling you press the power button and go right to work in seconds. If the TOPCON RL-H5A gets disturbed on the job it re-levels itself automatically. The Self-Leveling motors are accurate to ± 10 arc seconds.

LONG RANGE OPERATION
Need to shoot elevations up to 1,300 feet from your laser? No problem, this TOPCON RL-H5A has a workable power and range of 2,600 feet diameter on the jobsite.

ALL WEATHER DEPENDABILITY
With the IP66 rating, the TOPCON RL-H5A is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.

5-YEAR GUARANTEE
The TOPCON RL-H5A Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.
Topcon RL-H5A Laser SPECIFICATIONS
Accuracy 1/16-inch @ 100-feet
Self-Leveling Range ± 5 degrees
Working Range diameter 2,600 feet
Rotation Speed 600 RPM
Light Source Visible Red Laser 635NM
Laser Class CDRH(FDA) IIIa JIS/IEC 3R
Dust / Water Rating IP66
Operation Time Alkaline: 100 hours
Operational Temp -4ºF to 122ºF
Size 7.0 x 7.7 x 8.5 in
Maximum Power Output 2.4mW
Tripod Screw Thread 5/8-11
Need help choosing the right laser or troubleshooting an application?
New Model 1021200-49 1021200-50 1021200-50-K1 1021200-50-K2 1021200-16 1021200-73
Discontinued Model 1021200-06
1021200-14		 1021200-07 1021200-07-K1 1021200-07-K2 1021200-08 1021200-31
1021200-33
Receiver LS-80L LS-80X LS-80X LS-80X LS-100D LS-80L
Batteries Rechargeable Dry / Alkaline Dry / Alkaline Dry / Alkaline Rechargeable Dry / Alkaline
Remote Control NO NO NO NO NO NO
Measuring Rod 15′ NO NO YES – 10ths YES – Inches NO NO
Aluminum Tripod NO NO YES YES NO NO
LASER SPECIFICATIONS
Source 635nm Class 2 635nm Class 2 635nm Class 2 635nm Class 2 635 nm Class 2 635 nm Class 2
Range (Diameter) 2,600-feet 2,600-feet 2,600-feet 2,600-feet 2,600-feet 1,300-feet
Accuracy @ 100 feet
 1/16-inch
 1/16-inch 1/16-inch 1/16-inch 1/16-inch 1/8-inch
Rotation Speed 600 RPM 600 RPM 600 RPM 600 RPM 600 RPM 600 RPM
Slope Manual 1 Axis Manual 1 Axis Manual 1 Axis Manual 1 Axis Manual 1 Axis NO
Manual Slope Range ± 5 degrees ± 5 degrees ± 5 degrees ± 5 degrees ± 5 degrees
Self-Leveling ± 5 degrees ± 5 degrees ± 5 degrees ± 5 degrees ± 5 degrees ± 5 degrees
Rechargeable Battery 60 hours 60 hours
Dry/Alkaline Battery 100 hours 100 hours 100 hours 100 hours 100 hours 100 hours
Battery Run Charge NO NO
Enviornment IP66 IP66 IP66 IP66 IP66 IP66
Warranty 5 YEARS 5 YEARS 5 YEARS 5 YEARS 5 YEARS 5 YEARS
DISCONTINUED VERSION – OLD LASER INFORMATION
Old Series New RL-H5A DB
 RL-H5A DB RL-H5A DB RL-4HC RB RL-H5B
Old Model New 1021200-07 1035258-01 1035259-01 313980772 1021200-31

This item is in stock and ships same-day if ordered before 12:00 PM Central Time. We also make every effort to ship orders placed before 5:00 PM.
