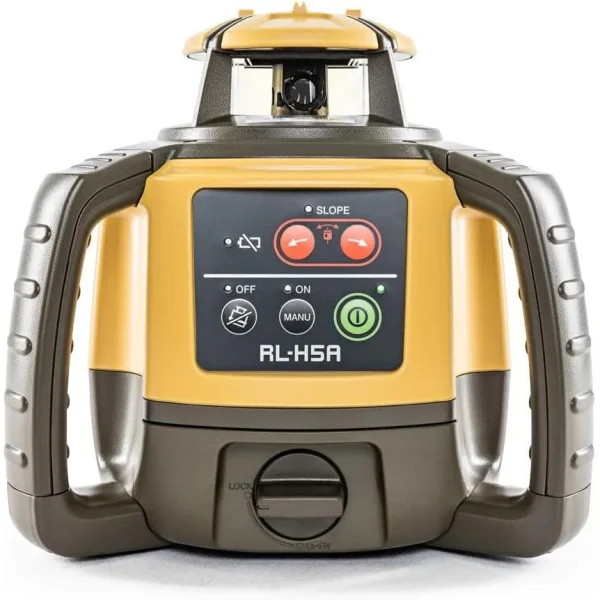

Topcon RL-H5A-BL Bare Laser Only (NO Receiver / NO Case) 1021200-50-BL
Lasers & Levels

Topcon RL-H5A-BL Bare Laser Only (NO Receiver / NO Case) 1021200-50-BL

Original price was: $545.00.Current price is: $107.99.

Availability: 6 in stock

🚚 Free Shipping over $39
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: Topcon RL-H5A-BL
CATEGORY: Lasers & Levels
Description
TOPCON RL-H5A-BL – 1021200-50-BL
Self-Leveling Rotary Laser Level Alkaline Batteries Package
Includes: RL-H5A Laser ONLY – NO Receiver and NO Carrying Case.

THIS TOPCON Laser RL-H5A is in-stock and ships today if ordered before 12 noon CST*

Next Generation Self-Leveling Construction Laser
The Topcon RL-H5A auto-leveling laser level combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arc seconds meaning whether you’re checking grade or setting batter boards you are going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600′ diameter working range (with detector use) making it a great reference for machine mounted receivers. The 635nm visible beam means it can even be used for interior alignment applications from setting piers and decking, to wall and even cabinet alignment. All of these features makes the Topcon RL-H5A Laser more than twice the laser offered by anyone else.

Topcon RL-H5A TOP FEATURES

  • Self-Leveling Horizontal Beam
  • Long Range Operation 2,600 ft diameter
  • High Horizontal Accuracy 1/16-inch @ 100-feet
  • Simple, intuitive manual slope capability
  • Tough IP66 Rating – Dust and Water Rating
  • Self-Leveling Range ± 5 degrees
  • Long Alkaline battery life – 100 hours
  • Out of Level Notification
Topcon RL-H5A (1021200-50-BL) Laser INCLUDES
  • RL-H5A Horizontal Laser
  • uses (4) D-Cell Alkaline Batteries (NOTINCLUDED)
  • 5-Year Warranty Guarantee

MULTI-PURPOSE LASER
Grading, excavating and general construction projects are perfect applications for the RL-H5A. With the added “Slope Matching” feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the Topcon RL-H5A a great match with any machine mounted laser sensor.

EASY TO USE
With electronic self-leveling you press the power button and go right to work in seconds. If the TOPCON RL-H5A gets disturbed on the job it re-levels itself automatically. The Self-Leveling motors are accurate to ± 10 arc seconds.

LONG RANGE OPERATION
Need to shoot elevations up to 1,300 feet from your laser? No problem, this TOPCON RL-H5A has a workable power and range of 2,600 feet diameter on the jobsite.

ALL WEATHER DEPENDABILITY
With the IP66 rating, the TOPCON RL-H5A is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.

5-YEAR GUARANTEE
The TOPCON RL-H5A Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.
Topcon RL-H5A Laser SPECIFICATIONS
Accuracy 1/16-inch @ 100-feet
Self-Leveling Range ± 5 degrees
Working Range diameter 2,600 feet
Rotation Speed 600 RPM
Light Source Visible Red Laser 635NM
Laser Class CDRH(FDA) IIIa JIS/IEC 3R
Dust / Water Rating IP66
Operation Time Alkaline: 100 hours
Operational Temp -4ºF to 122ºF
Size 7.0 x 7.7 x 8.5 in
Maximum Power Output 2.4mW
Tripod Screw Thread 5/8-11
Topcon RL-H5A Laser Series COMPARISON
New Series RL-H5A RB RL-H5A DB RL-H5A DB2 RL-H5A DB2 RL-H5A RB RL-H5B DB
LASER – TOP COMPONENT OVERVIEW
New Model 1021200-14 1021200-50 1021200-15-K1 1021200-15-K2 1021200-16 1021200-33
Discontinued Model 1021200-06 1021200-07 1021200-07-K1 1021200-07-K2 1021200-08 1021200-31
Receiver LS-80L LS-80L LS-80L LS-80L LS-100D LS-80L
Batteries Rechargeable Dry / Alkaline Dry / Alkaline Dry / Alkaline Rechargeable Dry / Alkaline
Remote Control NO NO NO NO NO NO
Measuring Rod 15′ NO NO YES – 10ths YES – Inches NO NO
Aluminum Tripod NO NO YES YES NO NO
LASER SPECIFICATIONS
Source 635nm Class 2 635nm Class 2 635nm Class 2 635nm Class 2 635 nm Class 2 635 nm Class 2
Range (Diameter) 2,600-feet 2,600-feet 2,600-feet 2,600-feet 2,600-feet 1,300-feet
Accuracy @ 100 feet
 1/16-inch 1/16-inch 1/16-inch 1/16-inch 1/16-inch 1/8-inch
Rotation Speed 600 RPM 600 RPM 600 RPM 600 RPM 600 RPM 600 RPM
Slope Manual 1 Axis Manual 1 Axis Manual 1 Axis Manual 1 Axis Manual 1 Axis NO
Manual Slope Range ± 5 degrees ± 5 degrees ± 5 degrees ± 5 degrees ± 5 degrees
Self-Leveling ± 5 degrees ± 5 degrees ± 5 degrees ± 5 degrees ± 5 degrees ± 5 degrees
Rechargeable Battery 60 hours 60 hours
Dry/Alkaline Battery 100 hours 100 hours 100 hours 100 hours 100 hours 100 hours
Battery Run Charge NO NO
Enviornment IP66 IP66 IP66 IP66 IP66 IP66
Warranty 5 YEARS 5 YEARS 5 YEARS 5 YEARS 5 YEARS 5 YEARS
DISCONTINUED VERSION – OLD LASER INFORMATION
Old Series New RL-H5A DB
 RL-H5A DB RL-H5A DB RL-4HC RB RL-H5B
Old Model New 1021200-07 1035258-01 1035259-01 313980772 1021200-31
All laser prices are discounted in shopping cart
OPTIONAL Topcon LS-80L Receiver Sensor OVERVIEW

OPTIONAL Topcon LS-80L LONG RANGE LASER SENSOR
New laser sensor LS-80L offers increased working range* even with other Topcon rotating lasers. It indicates the laser beam position with two LCD’s on both sides plus audible tone. The LCD icons also notify the HI Alert and Low Battery warnings of the RL-H4RC laser.

The Topcon LS-80L Laser Receiver Sensor Detector is able to allow you to have a longer range when using a red beam rotary laser. The unit can be adjusted for either a fine or course band, which will help improve the accuracy. It has an audible notice for the height, to make sure it is adjusted properly. You can select from 11 different channels to display the data on the LCD display.

With a rating of IP-66, the Topcon LS-80L Laser Receiver Sensor Detector is protected against dust and water. The unit is in a rubber case, so it is also protected against dropping it. It will stand up to a variety of job conditions. It can also be mounted with a Holder 6 bracket, so it will be more stable.

The Topcon LS-80L Laser Receiver Sensor Detector runs on two AA batteries. It will run for up to 120 hours, allowing for plenty of work time on the job site. It will also shut down after 30 minutes if it hasn’t been used, to help save the battery life.

OPTIONAL Topcon LS-80L Receiver FEATURES
We also attempt to ship all orders that are placed before 5 P.M. Certain circumstances outside of our control can sometimes affect this standard that we set.
