TOPCON RL-HV2S – DB 1051612-CCC Self-Leveling Dual Grade Rotary Laser Level and Case Only |
| Topcon RL-HV2S 1031612-BCC Includes: Laser and Case Only
|
| High Accuracy, High Value Dual Slope Laser |
|
DUAL SLOPE, LONG RANGE, SELF-LEVELING LASER Following in a long line of superior quality laser transmitters the RL-HV2S is a dual slope, long range, self-leveling instrument built to outperform all of its competitors.
Bluetooth Laser Manager for your phone (App Download) Compatible for iOS and Android provides wireless remote control using a cell phone to adjust slope and check calibration remotely. No special remote control needed.
This laser is for general construction or engineering projects and designed to be used for flat work, single grade or dual grade applications. Slopes up to ±5% can be used in either the X or Y axis. With a 2,600 foot diameter operating range the RL-HV2S has the power to cover even the biggest job sites.

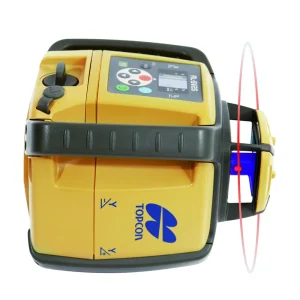

The RL-2HVS can be turned on its side for layout and alignment applications. Lay it down on the built-in mounts or attach it to a tripod and the laser will electronically self-level for fast and accurate vertical applications.
This versatile construction tool is loaded with all the features contractors love including a long battery life when powered by Alkaline Batteries (120 hours Alkaline Batteries) height of instrument alert, and electronic shutters. All of these features can be accessed on the front control panel or on the included mobile phone app.
|
Topcon RL-HV2S-BCC TOP FEATURES
- Self-Leveling with Single or Dual Slope
- Horizontal, Multi-Slope and VERTICAL Applications
- Rugged, Lightweight and Compact
- Long Range Operation 2,600 ft diameter
- High Horizontal Accuracy 1/16-inch @ 100-feet
- Simple and intuitive Dual Slope, Single Slope or Flat Work
- Tough IP66 Construction Rating – Dust and Water Rating
- Horizontal Self-Leveling Range ± 5 degrees
- Out of Level Notification
- Laser Manager App (iOS and Android)
|

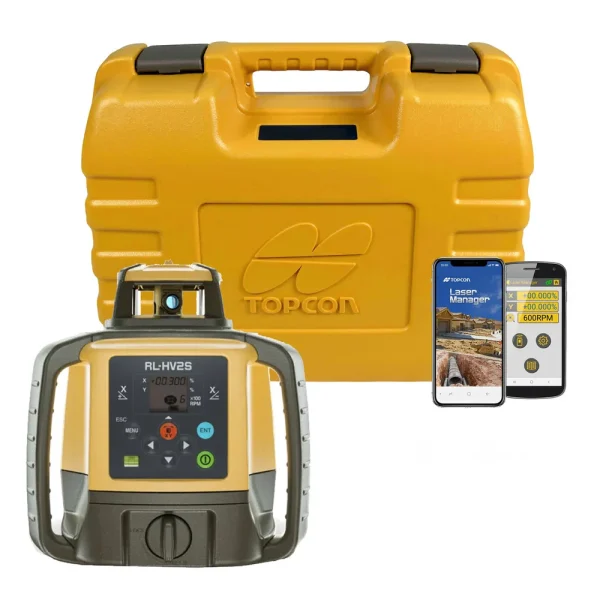

| Topcon RL-HV2S-BCC (1051612-BCC) Laser Kit INCLUDES |
- RL-HV2S Dual Grade Laser
- Rugged Hard Shell Carrying Case
- 5-Year Warranty Guarantee
|
|
MULTI-USE APPLICATIONS Designed for a variety of tasks, it can be used for horizontal, sloping and vertical laser applications. Slopes up to ± 5 % can be used in either the X or Y axis. Turn it on its side and use it for layout and alignment jobs.
HIGH POWERED With an operating range of over 2,600 feet diameter the RL-HV2S has the power to cover even the biggest projects.
LONG BATTERY LIFE Contractors who want a laser with a long battery life will love the RL-HV2S. With an operating time of 60 hours with included Rechargeable NiMH batteries and 120 hours on Alkaline batteries this laser will still be working long after others have quit. Alkaline batteries can be used as a back-up for the Rechargeable batteries.
ALL WEATHER DEPENDABILITY With the IP66 rating, the TOPCON RL-HV2S is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.
5-YEAR GUARANTEE The TOPCON RL-HV2S Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.
|
| Topcon RL-HV2S Laser SPECIFICATIONS |
| Accuracy |
1/16-inch @ 100-feet |
| Self-Leveling Range |
± 5 degrees |
| Working Range diameter |
2,600 feet |
| Rotation Speed |
300, 600 RPM |
| Light Source |
Visible Red Laser 635NM |
| Laser Class |
CDRH(FDA) IIIa IEC Class 3R |
| Dust / Water Rating |
IP66 |
| Operation Time |
Rechargeable: 60 hours Alkaline: 100 hours |
| Operational Temp |
-4ºF to 122ºF |
| Size |
7.0 x 7.7 x 8.5 in |
| Maximum Power Output |
2.4mW |
| Tripod Screw Thread |
5/8-11 |
|
|
|
