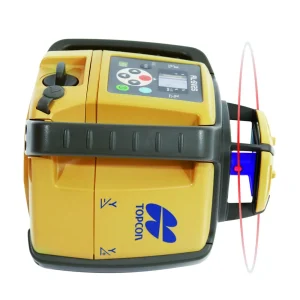

Topcon RL-SV1S Self-Leveling Single Grade Laser RB Kit with LS-100D Deluxe Receiver and Rechargeable Batteries 313990776

SINGLE SLOPE, LONG RANGE, SELF-LEVELING LASER
The Topcon RL-SV1S Single Grade Laser is an economical and user-friendly laser that is built for single slope and layout applications. With a working range up to 2,600 feet, this laser is ideal for land surveying, geospatial monitoring, civil engineering works and other site works. The RL-SV1S offers an accuracy of ±10 arc seconds and a single grade range of ±5 percent.

Self-leveling within ±5 degrees horizontally, the Topcon RL-SV1S is designed for different indoor and outdoor tasks. Also, it features two rotational speeds of 300 and 400 rotations per minute. To provide more accuracy, it includes an RC-50 remote control.

This Topcon single grade laser features an IP66 rating which protects the instrument from dust and water. Built for long hours of work, it uses powerful rechargeable NiMH batteries that operate up to 80 hours. In addition, it features an operating temperature of -4 °F to 122 °F which is built to work perfectly even under extreme temperatures.

• Self-Leveling Laser with Single Slope

• Rugged, Lightweight and Compact
• Long Range Operation up to 2,600 ft diameter
• High Horizontal Accuracy 1/16-inch @ 100-feet
• Accuracy of ± 10 arc seconds
• Simple and intuitive Single Slope or Flat Work

• Rotation Speeds: 300 rpm or 400 rpm
• Tough IP66 Rating – Dust and Water Rating
• Horizontal Self-Leveling Range ± 5 degrees
• NiMH Rechargeable Batteries – up to 80 hours Rechargeable

• Out of Level Notification

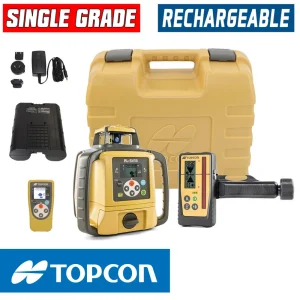

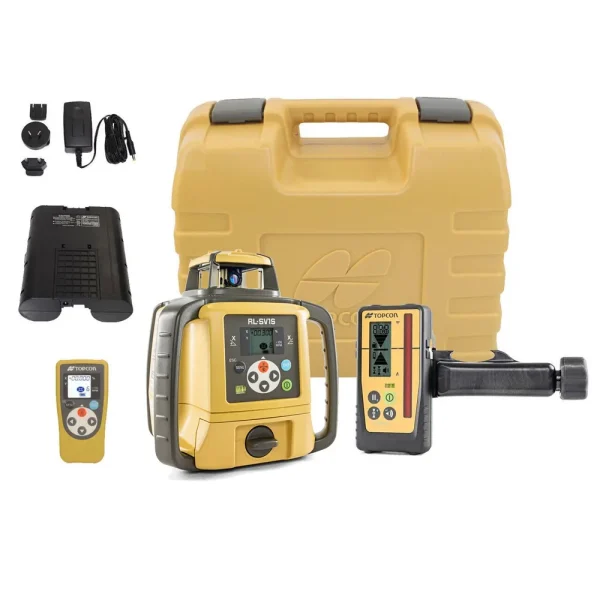

• RL-SV1S Single Grade Laser (Rechargeable Batteries)

• RC-50 Remote Control
• LS-100D Deluxe Long Range Laser Receiver Sensor 1011898-1
• Receiver Rod Clamp Holder 100 (1011990-01)

• NiMH Rechargeable Batteries BT-74Q (313680404)

• Rechargeable Battery Holder (313680402)
• Battery Charger (AD-15) 1012845-01

• Rugged Hard Shell Carrying Case
• 5-Year Warranty Guarantee

MULTI-USE APPLICATIONS
Designed for a variety of tasks, it can be used for horizontal, sloping and vertical laser applications. Slopes up to ± 5 % can be used in a single axis. Turn it on its side and use it for layout and alignment jobs.

HIGH POWERED
With an operating range of over 2,600 feet diameter the RL-SV1S has the power to cover even the biggest projects.

LONG BATTERY LIFE
Contractors who want a laser with a long battery life will love the RL-SV1S. With an operating time of up to 80 hours on rechargeable batteries this laser will still be working long after others have quit.

ALL WEATHER DEPENDABILITY
With the IP66 rating, the TOPCON RL-SV1S is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.

5-YEAR GUARANTEE
The TOPCON RL-SV1S Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.

Topcon LS-100D LASER SENSOR RECEIVER
Versatile and designed for maximum user convenience, the LS-100D features a digital readout to confidently deliver elevation and vertical alignment control on demand.

It features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures. The large and bright LCD displays (front and rear) feature 9-channels of grade information and digitally show the distance to on-grade. By pressing the Hold button, the display is locked so the user can conveniently read the the results. For added versatility, three colored LED’s and a strong magnet mount are embedded for vertical operation, ideal for steal erection or operator grade checking while excavating.

To assist in monitoring the Topcon rotating laser, alert icons appear on the LCD if the instrument is disturbed (HI Alert) or when the laser battery is low.
