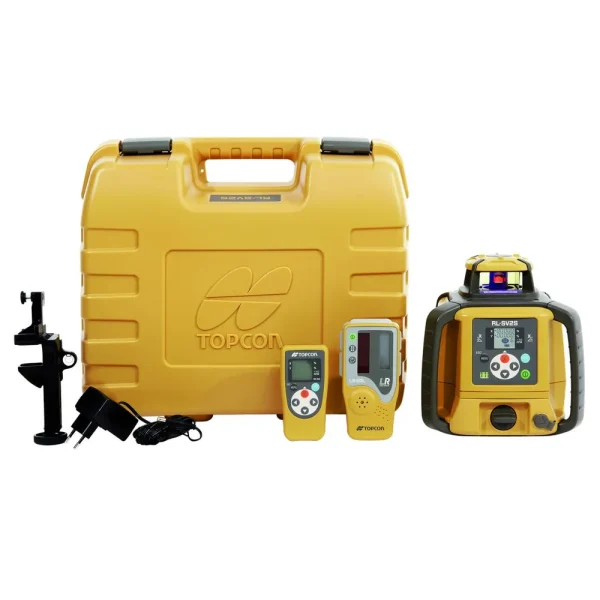

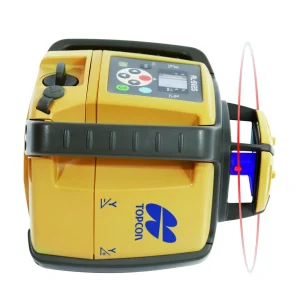

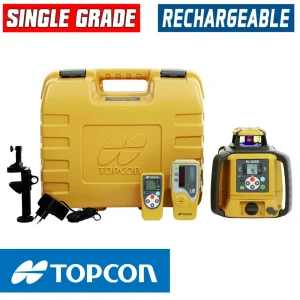

Topcon RL-SV1S Self-Leveling Single Grade Laser RB Kit with LS-80L Receiver and Rechargeable Batteries- 313990709

SINGLE SLOPE, LONG RANGE, SELF-LEVELING LASER
The Topcon RL-SV1S Single Grade Laser is an economical and user-friendly laser that is built for single slope and layout applications. With a working range up to 2,600 feet, this laser is ideal for land surveying, geospatial monitoring, civil engineering works and other site works. The RL-SV1S offers an accuracy of ±10 arc seconds and a single grade range of ±5 percent.

Self-leveling within ±5 degrees horizontally, the Topcon RL-SV1S is designed for different indoor and outdoor tasks. Also, it features two rotational speeds of 300 and 400 rotations per minute. To provide more accuracy, it includes an RC-50 remote control.

This Topcon single grade laser features an IP66 rating which protects the instrument from dust and water. Built for long hours of work, it uses powerful rechargeable NiMH batteries that operate up to 80 hours. In addition, it features an operating temperature of -4 °F to 122 °F which is built to work perfectly even under extreme temperatures.

• Self-Leveling Laser with Single Slope

• Rugged, Lightweight and Compact
• Long Range Operation up to 2,600 ft diameter
• High Horizontal Accuracy 1/16-inch @ 100-feet
• Accuracy of ± 10 arc seconds
• Simple and intuitive Single Slope or Flat Work

• Rotation Speeds: 300 rpm or 600 rpm
• Tough IP66 Rating – Dust and Water Rating
• Horizontal Self-Leveling Range ± 5 degrees
• NiMH Rechargeable Batteries – up to 80 hours Rechargeable

• Out of Level Notification

• RL-SV1S Single Grade Laser (Rechargeable Batteries)

• RC-50 Remote Control
• LS-80L Long Range Laser Receiver Sensor 313540702
• Receiver Rod Clamp Holder 6 (312890112)

• NiMH Rechargeable Batteries

• Battery Charger
• Rugged Hard Shell Carrying Case
• 5-Year Warranty Guarantee

MULTI-USE APPLICATIONS
Designed for a variety of tasks, it can be used for horizontal, sloping and vertical laser applications. Slopes up to ± 5 % can be used in a single axis. Turn it on its side and use it for layout and alignment jobs.

HIGH POWERED
With an operating range of over 2,600 feet diameter the RL-SV1S has the power to cover even the biggest projects.

LONG BATTERY LIFE
Contractors who want a laser with a long battery life will love the RL-SV1S. With an operating time of up to 120 hours on alkaline batteries this laser will still be working long after others have quit.

ALL WEATHER DEPENDABILITY
With the IP66 rating, the TOPCON RL-SV1S is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.

5-YEAR GUARANTEE
The TOPCON RL-SV1S Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.

Topcon LS-80L LONG RANGE LASER SENSOR
New laser sensor LS-80L offers increased working range* even with other Topcon rotating lasers. It indicates the laser beam position with two LCD’s on both sides plus audible tone. The LCD icons also notify the HI Alert and Low Battery warnings of the RL-H4RC laser.

The Topcon LS-80L Laser Receiver Sensor Detector is able to allow you to have a longer range when using a red beam rotary laser. The unit can be adjusted for either a fine or course band, which will help improve the accuracy. It has an audible notice for the height, to make sure it is adjusted properly. You can select from 11 different channels to display the data on the LCD display.

With a rating of IP-66, the Topcon LS-80L Laser Receiver Sensor Detector is protected against dust and water. The unit is in a rubber case, so it is also protected against dropping it. It will stand up to a variety of job conditions. It can also be mounted with a Holder 6 bracket, so it will be more stable.

The Topcon LS-80L Laser Receiver Sensor Detector runs on two AA batteries. It will run for up to 120 hours, allowing for plenty of work time on the job site. It will also shut down after 30 minutes if it hasn’t been used, to help save the battery life.

Topcon LS-80L Receiver FEATURES

• Increase range of rotary lasers
• Fine or course sensitivity
• Height alert
• IP-66 rating against dust and water
• Uses AA batteries
• Low battery alert
• 30 minute shut down
• Protective case
• LCD display
• 2-inch capture window

*Approximately 20 percent increase.
