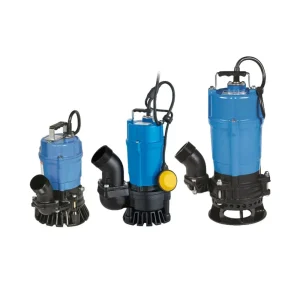

Tsurumi Pump HS Series Submersible Trash Pumps
The HS Series Submersible Trash Pumps are designed to pump water containing sand, solids and debris with minimal wear and clogging.
Features
- Built-in shaft mounted agitator suspends solids
- Urethane Semi Vortex Impeller for maximum durability and pump performance
- Dual inside mechanical seal With SiC faces provides longest operational life
- Oil lifter provides lubrication of the seal faces
- V-Ring Seal design protects mechanical seal from abrasive particles
- Sold individually
- Limited 2-Year Warranty

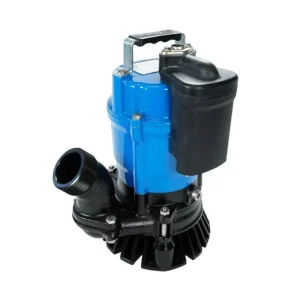

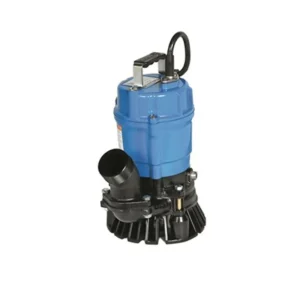

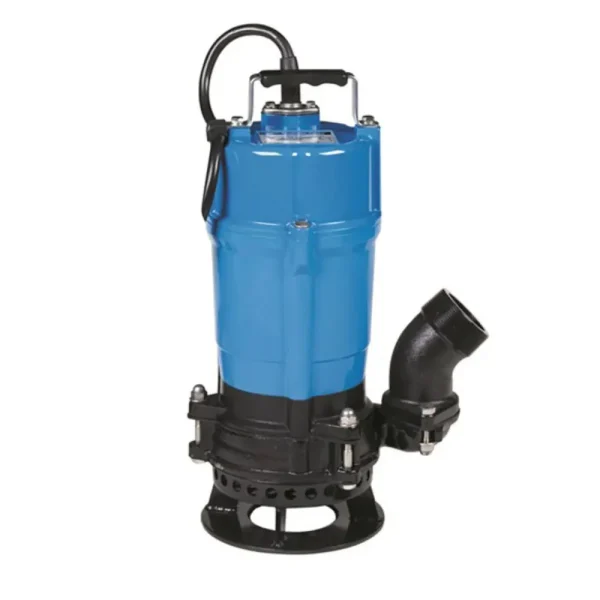

HS2.4S
- Manual Trash pumps in 2 inches discharge and 1/2 HP. Designed to pump water containing sand, solids and debris with minimal wear and clogging
- Cable length: 20 ft.
HSE2.4S
- Automatic Trash pumps in 1/2 HP and 2 inches discharge with Automatic Water Level Sensor
- No control panel or float switches required. Performs like the non-automatic pump with no special float installation required
- Internal 60-second timer eliminates frequent on/off operation in rough water to extend motor life
- Automatic water level sensor completely molded in resin and covered by rubber case for protection against rough handling
- Cable length: 20 ft.
HSZ2.4S
- Automatic trash pumps in 2 inches discharge with ball float switch
- Vertical discharge coupling available to order
- It can handle demanding tasks such as floodwater management, construction site dewatering, and industrial debris removal with ease
- Cable lenght: 20 ft.
HS3.75S
- Manual Trash pumps in 3 inches discharge
- Cable length: 32 ft.
HS3.75SL
- Manual trash pumps in 3 inches discharge
- Cable length: 32 ft.
HSZ3.75S
- Automatic trash pumps in 3 inches discharge with ball float switch
- Vertical discharge coupling available to order
- Cable length: 32 ft.
HSZ3.75SL
- Automatic trash pumps in 3 inches discharge with ball float switch
- Straight and angle 2-inch NPT Coupling available to order
- Cable length: 32 ft.
HSD2.55S
- Manual trash pumps in 3 inches discharge
- Anti-wicking block prevents water incursion
- Built-in larger shaft mounted agitator suspends solids
- High chromium iron impeller
- Easy pump end disassembly by removing only 3 nuts
- Cable length: 32 ft.
| Tsurumi Pump HS Series Submersible Trash Pumps |
| Model |
Discharge Size |
Motor Output |
Diameter |
Height |
Max Solid Diameter |
Weight |
| HS2.4S |
2″ |
1/2 HP |
10-1/16″ |
12-5/16″ |
0.276″ |
25 lbs. |
| HSE2.4S |
2″ |
1/2 HP |
13-1/2″ |
17-1/2″ |
0.276″ |
26 lbs. |
| HSZ2.4S |
2″ |
1/2 HP |
13-1/2″ |
15-1/8″ |
0.276″ |
30 lbs. |
| HS3.75S |
3″ |
1 HP |
12-7/16″ |
15-5/16″ |
0.276″ |
43 lbs. |
| HS3.75SL |
3″ |
1 HP |
12-7/16″ |
16-3/4″ |
0.276″ |
50 lbs. |
| HSZ3.75S |
3″ |
1 HP |
13-1/2″ |
17-1/2″ |
0.276″ |
50 lbs. |
| HSZ3.75SL |
3″ |
1 HP |
15-3/4″ |
19-7/8″ |
0.236″ |
50 lbs. |
| HSD2.55S |
2″ |
3/4 HP |
10-3/8″ |
15-3/8″ |
0.393″ |
39 lbs. |
