Tsurumi Pump TE Series Centrifugal Gas Pumps
The Tsurumi TE Series centrifugal pumps are powerful and lightweight pumps powered by a heavy-duty gas engine. These pumps are available in 1″, 2″, 3″ and 4″ NPT coupling suction sizes.
Features
- Heavy-duty Honda gas engine with oil sensor and silicon carbide mechanical seal
- Cast Iron impeller and volute casing
- Durable rolled-steel frame provides maximum protection, perfect ease of handling or transport, and safe operation
- Equipped with rubber mounts on the pump and on the frame
- Suction strainer included
- Limited 2-Year Warranty

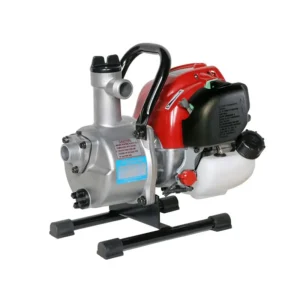

TE2-25HA
- 1 inch pump ideal for general dewatering, irrigation, all-purpose cleaning and wash down applications
- Easy starting and quiet running is assured thanks to the four-stroke HONDA GX25 engine
- Oil sensor and silicon carbide mechanical seal provides longer engine life
- Durable rolled-steel handle for ease of handling
TE3-50HA
- Powerful, lightweight pumps with 2 inches NPT Coupling powered by heavy-duty, powerful Honda GX series gas engine
- Oil sensor and Silicon Carbide mechanical seal provides longer life in this class
- Cast Iron impeller and volute casing
- Rubber mounts on the pump and the frame
TE3-50V
- Powerful yet lightweight 2 inches pumps powered by a CARB compliant Vanguard 160 engine
- Oil sensor and silicon carbide mechanical seal for maximum durability
- Rolled steel frame with vibration dampening feet
- Cast iron casing and impeller
TE3-80V
- Powerful yet lightweight 3 inches pumps driven by a Vanguard 160 engine that complies with CARB regulations
- Rolled steel frame with vibration dampening feet
- Oil sensor and silicon carbide mechanical seal
- Strong high quality materials will keep maintenance and downtime to a minimum
TE3-80HA
- Powerful, lightweight pumps with 3 inches NPT Coupling powered by heavy-duty, powerful Honda GX series gas engines
- Oil sensor and Silicon Carbide mechanical seal provides longer engine life
- Cast Iron impeller and volute casing
- Easy transport and safe operation thanks to the durable Rolled-Steel frame
TE2-100HA
- Powerful, lightweight pumps with 4 inches NPT Coupling powered by heavy-duty Honda GX series gas engine
- Cast Iron impeller and volute casing
- Durable Rolled-Steel frame provides maximum protection
- Rubber mounts on the pump and the frame
| Tsurumi Pump TE Series Centrifugal Gas Pumps |
| Model |
Discharge Size |
Motor Output |
Diameter |
Height |
Engine |
Weight |
| TE2-25HA |
1″ |
1.1 HP |
14″ |
13″ |
Honda GX25 |
16 lbs. |
| TE3-50HA |
2″ |
4 HP |
14-5/8″ |
17-1/8″ |
Honda GX120 |
55 lbs. |
| TE3-50V |
2″ |
4 HP |
15-11/16″ |
17-15/16″ |
Vanguard 160 |
54 lbs. |
| TE3-80V |
3″ |
5 HP |
15-11/16″ |
17-15/16″ |
Vanguard 160 |
64 lbs. |
| TE3-80HA |
3″ |
5.5 HP |
16-1/2″ |
18-1/8″ |
Honda GX160 |
64 lbs. |
| TE2-100HA |
4″ |
8 HP |
18″ |
12-1/2″ |
Honda GX240 |
109 lbs. |
