Wacker Neuson Hybrid Vibrator Heads for SMS Shafts
The electrically driven HMS system is extremely versatile. These high frequency flex-shaft internal vibrators can be adapted to every type of application. Heads and shafts can be easily combined and rapidly exchanged to match the right equipment to the job. Unique hybrid heads offer optimum concrete consolidation and movement. Wacker Neuson HMS systems provide reliable performance and quality concrete.
Features
- Quick and easy flex-shaft replacement with the quick disconnect coupling. Shafts and vibrator heads can be arranged in many desired combinations
- The exclusive shape of the high amplitude hybrid heads provides excellent consolidation and movement of concrete
Specifications
- H 25HA, 0610058, Hybrid vibrator head, 1″, 25 mm diameter. length = 15″, 381 mm. 2.6 lbs. Only compatible with the SME Flexible Pencil Vibrator Shaft
- Any vibrator heads larger than 1″ must use the SMS Internal Concrete Vibrator Shafts

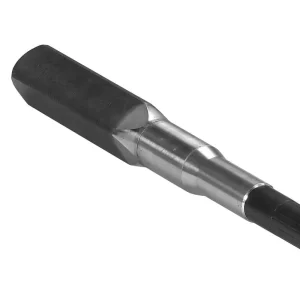

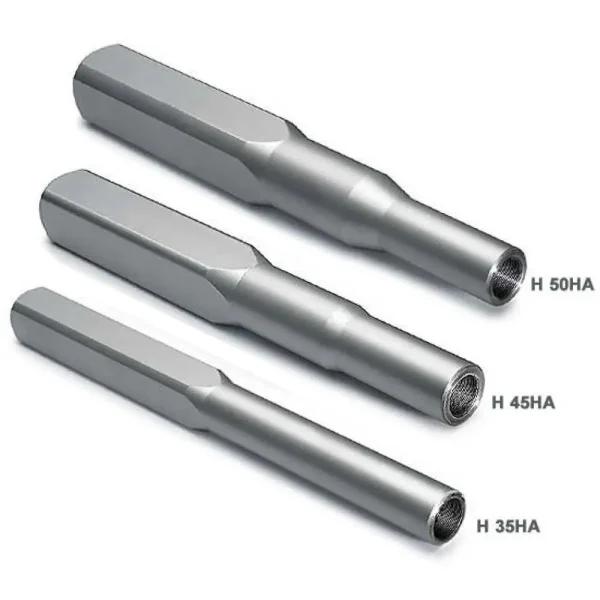

- H 35HA, 0610059, Hybrid vibrator head, 1-3/8″, 35 mm diameter. length = 15.9″, 405 mm. 4.4 lbs
- H 45HA, 0610060, Hybrid vibrator head,1-3/4″, 45 mm diameter. length = 15.4″, 390 mm. 6.8 lbs
- H 50HA, 0610061, Hybrid vibrator head, 2″, 50 mm diameter. length = 15.6″, 400 mm. 8 lbs
