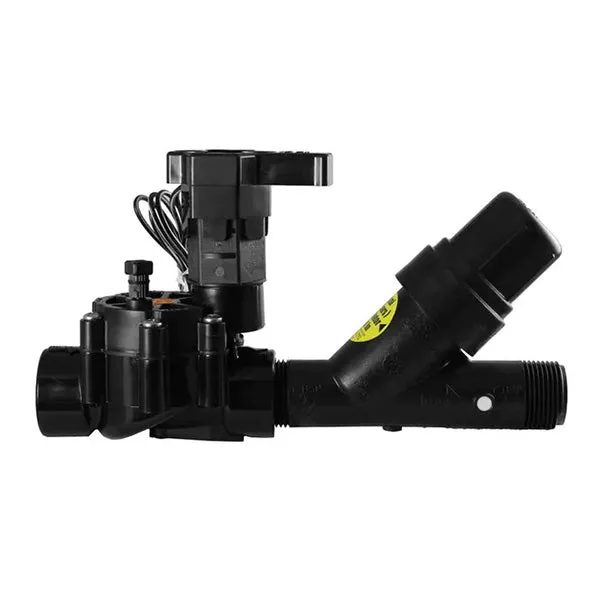

XCZLF-100-PRF – Low Flow Control Zone Kit with 1 in. Low Flow Valve and 1 in. Pressure Regulating Filter (Assembled)

Low Flow Residential Control Zone Kits

Optimized for Low Flow: Includes the field-proven Low Flow Valve, the only valve on the market that can handle low flows (below 3 gpm) without weeping

Compact Solution: Shorter kits with only two components (valve plus pressure-regulating filter) mean that you can fit more Control Zone Kits in a valve box, saving time and money.

Long-term Reliability: These preassembled kits with PR Filters provide on/off control, filtration, and pressure regulation with only two parts; so there is less chance of leakage at the connections, both at installation and over the life of the system

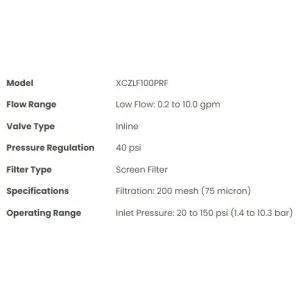

Features

• Flow Range:
  • XCZ-075-PRF: 0.2 to 5.0 gpm; (0.8 to 18.91 l/m)
  • ICZ-075-9V: 0.2 to 5.0 gpm; (0.8 to 18.91 l/m)
  • XCZ-LF-100-PRF: 0.2 to 10.0 gpm; (0.8 to 37.85 l/m)
• Inlet Pressure: 20 to 150 psi: (1.4 to 10.3 bar)
• Regulated Pressure:
  • XCZ-075-PRF: 30psi (2.1 bar)
  • ICZ-075-9V: 30psi (2.1 bar)
  • XCZ-LF-100-PRF: 40 psi (2.8 bar)

Specifications

• Filter Type: Stainless steel screen filter; 200 mesh (75 micron)
• Flow Rate Capability: 13 to 300 ft (4 to 91m) of dripline
• Valve Box: Mini-Standard or 10” Round
• Inlet Size:
  • XCZ-075-PRF: 3/4” x 3/4” NPT
  • ICZ-075-9V: 3/4” x 3/4” NPT/BSP
  • XCZ-LF-100-PRF: 1” x 1” NPT
• Warranty: 3 years
