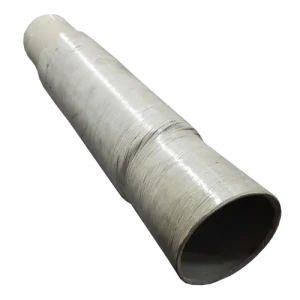

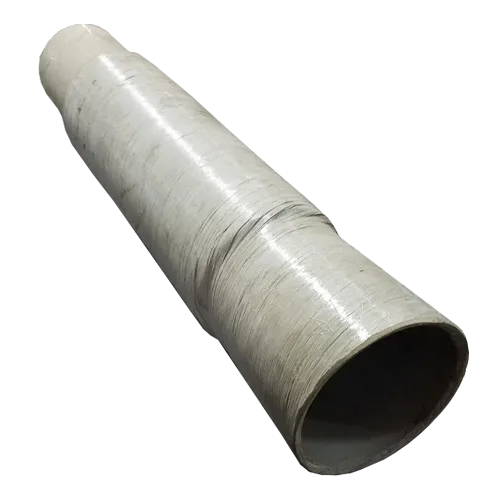

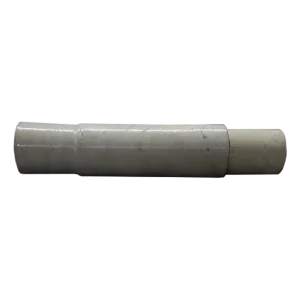

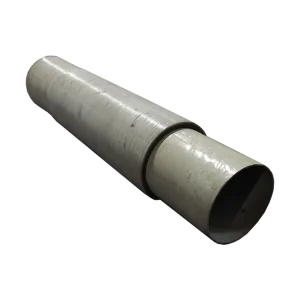

4″ ID Heavy Wall O-Ring Expansion Joint Non TriSeal – F 22-4017NTGR

4″ ID HW O-RING EXPANSION JOINT

Above Ground Conduit System

Fiberglass Reinforced Epoxy Conduit

Manufactured from E or E-CR glass and epoxy resin with no fillers.

Unlike PVC which is extremely brittle in cold temperature and malleable in heat, FRE® Conduit maintains its unique characteristics through -40°F to 230°F (-40°C to 110°C).

Non TriSeal = No gaskets

Inside Diameter Series, Heavy Wall recommended for use in non-hazardous locations and applications which an be subject to physical damage. Heavy Wall for Enhanced Mechanical Properties.

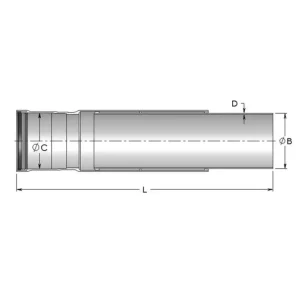

Specs

Size = 4 in (103mm)

ØB = 4.190 in (106.4mm)

ØC = 4.23 in (107.4mm)

D = 0.095 in (2.4mm)

L min = 24 in (609.6mm)

L max = 36 in (914.4mm)
