Ardex FLEXBONE Heat 240V Cable | 248 sq. ft

Ardex FLEXBONE Heat 240V Cable

FLEXBONE Heat cables are engineered with aluminum tubing and FEP cable insulation, which provides maximum heat spreading on stone or tile floors while minimizing the amount of wattage used. The cables work with the FLEXBONE In-Floor Heating Membrane to provide radiant heat in wet or dry areas with tile or stone flooring. The FLEXBONE floor heating cable system can only work with wood, laminate vinyl tile, or carpet flooring when using K 60 ARDITEX Rapid Setting Latex Smoothing and Leveling Compound. ​​​​​​​​​​

Features

• Cold/Hot junction self-contained within the cable; no bulky connection box to cut and bury

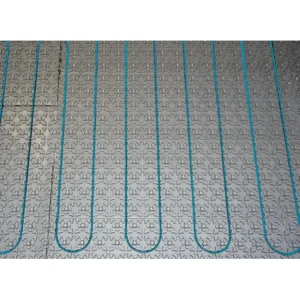

• The heating cable must be spaced so that at least two crossbones patterns are between the cables (approx. 3.88” / 9.8 cm) – see image 3
• It can also be installed in a “comfort” setup with at least 3 crossbones patterns between cables
• Heating cables may not cross, overlap, or touch each other
• Provided with 2-floor sensors – one with heat cable, one with thermostat
• 11% less wattage required per sq. ft.
• Less cable required per sq. ft.
• Heat resistant up to 401°F (205°C)
• Aluminum tubing guarantees ZERO electromagnetic fields
• All cables are the same diameter, allowing a secure fit in the membrane no matter the length
• Must use SK-175 Waterproofing Seam Tape on seams between adjacent mats
• Ideal for large-format tile and stone installations
