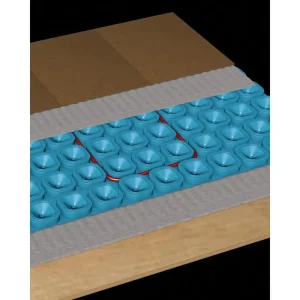

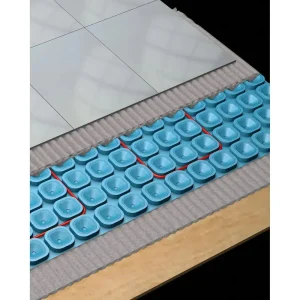

Mapeheat partnered with Nuheat and brought you a cable that offers flexible spacing for varying watt density, allowing installers flexibility on the job site. The coverage in the chart below is estimated based on a square area with an unheated border of 2″ (5 cm). Actual coverage will vary depending on the number of turns in the cable path (with more turns resulting in slightly less coverage).

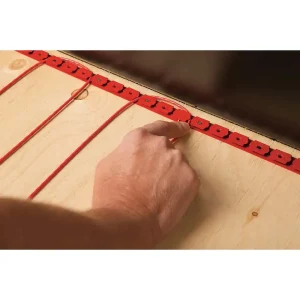

Note: A professional tile setter or licensed electrician must install the Mapeheat Cable onto the subfloor and connect a Mapeheat floor-heating system to household wiring.
| Mapeheat 120V Heating Cable Specifications | ||||||
| Model | Heating Cable Length | Currency | Total Power | Coverage for 3-pillar spacing (Low Output) |
Coverage for 2/3/2-Pillar spacing (Standard Output) |
Coverage for 2-pillar spacing (High Output) |
| 2855101 | 29 ft. (8.8 m) | 0.7 amps | 80 W | 9 sq. ft. (0.8 m²) | 8 sq. ft. (0.7 m²) | 6 sq. ft. (0.6 m²) |
| 2858101 | 47 ft. (14.3 m) | 1.2 amps | 138 W | 14 sq. ft. (1.3 m²) | 12 sq. ft. (1.1 m²) | 10 sq. ft. (0.9 m²) |
| 2858201 | 57 ft. (17.4 m) | 1.4 amps | 170 W | 17 sq. ft. (1.6 m²) | 15 sq. ft. (1.4 m²) | 12 sq. ft. (1.1 m²) |
| 2858301 | 98 ft. (29.9 m) | 2.5 amps | 299 W | 30 sq. ft. (2.8 m²) | 25 sq. ft. (2.3 m²) | 21 sq. ft. (2.0 m²) |
| 2858401 | 120 ft. (36.6 m) | 2.9 amps | 343 W | 36 sq. ft. (3.3 m²) | 31 sq. ft. (2.9 m²) | 25 sq. ft. (2.3 m²) |
| 2858501 | 148 ft. (45.1 m) | 3.7 amps | 442 W | 45 sq. ft. (4.2 m²) | 38 sq. ft. (3.5 m²) | 31 sq. ft. (2.9 m²) |
| 2858601 | 188 ft. (57.3 m) | 4.7 amps | 562 W | 57 sq. ft. (5.3 m²) | 48 sq. ft. (4.5 m²) | 39 sq. ft. (3.6 m²) |
| 2858701 | 234 ft. (71.3 m) | 6 amps | 719 W | 71 sq. ft. (6.6 m²) | 60 sq. ft. (5.6 m²) | 49 sq. ft. (4.6 m²) |
| 2858801 | 265 ft. (80.8 m) | 6.8 amps | 810 W | 81 sq. ft. (7.5 m²) | 68 sq. ft. (6.3 m²) | 55 sq. ft. (5.1 m²) |
| 2858901 | 318 ft. (96.9 m) | 7.9 amps | 947 W | 97 sq. ft. (9 m²) | 82 sq. ft. (7.6 m²) | 66 sq. ft. (6.1 m²) |
| 2859101 | 334 ft. (101.8 m) | 8.5 amps | 1,021 W | 102 sq. ft. (9.5 m²) | 86 sq. ft. (8 m²) | 69 sq. ft. (6.4 m²) |
| 2859201 | 377 ft. (114.9 m) | 9.7 amps | 1,161 W | 115 sq. ft. (10.7 m²) | 97 sq. ft. (9 m²) | 78 sq. ft. (7.2 m²) |
| 2859301 | 423 ft. (128.9 m) | 10.8 amps | 1,299 W | 129 sq. ft. (12 m²) | 109 sq. ft. (10.1 m²) | 88 sq. ft. (8.2 m²) |
| 2859401 | 474 ft. (144.5 m) | 12.2 amps | 1,461 W | 145 sq. ft. (13.5 m²) | 122 sq. ft. (11.3 m²) | 98 sq. ft. (9.1 m²) |
