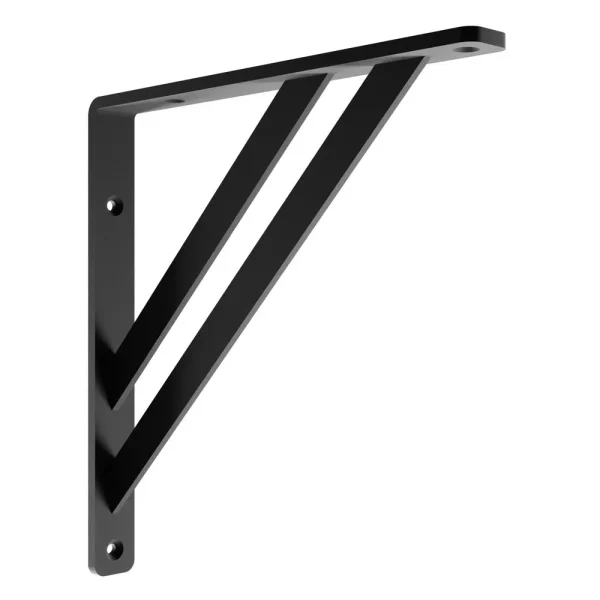

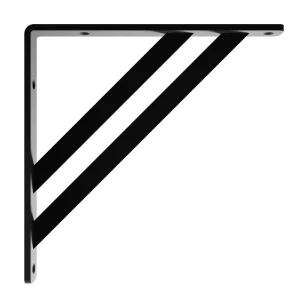

Balin Designs Beam Bracket
With its sleek, parallel lines, this bracket not only provides strong support but also gives a touch of modern beauty to your space.
Features
- Made with Premium Hot Rolled Steel with powder coated finish
- A sleek and sturdy solution for your shelving needs
- Each set of brackets is designed for shelves up to 48 inches wide (It’s recommended to install an extra bracket for every 24 inches of shelf)
- It is recommended to have a shelf depth overhead of 2 inches but no more than 4 inches
- Maximum Weight Load of 300 pounds per pair
| Beam Bracket Specifications |
| Size |
Medium |
Large |
X-Large |
| Depth |
7.75″ |
9.75″ |
11.75″ |
| Height |
7.75″ |
9.75″ |
11.75″ |
| Width |
1″ |
1″ |
1.25″ |
| Thickness |
6mm |
6mm |
6mm |
| Weight |
1.39 lbs |
1.90 lbs |
2.82 lbs |
