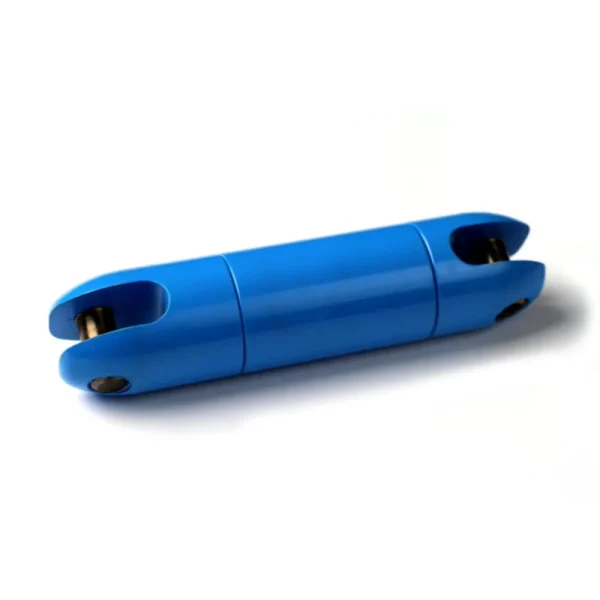

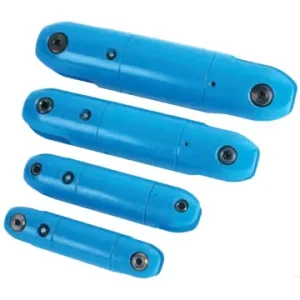

Condux 400 D.Drill Directional Drilling Swivel
The Condux 400 D.Drill Directional Drilling Swivel is engineered for use in directional drilling, ensuring that the rotational torque from drilling equipment does not affect the product being pulled, such as cable or conduit. These swivels are greasable and feature double seals to protect against contamination.
CAUTION: To be used for directional drilling and underground cable installation only.
CAUTION: Condux requires the use of a calcium based lubricant only. Other lubricants may have adverse reactions when exposed to bentonite products. Condux requires that the swivels be flushed with grease after each use to purge any contaminants that may have penetrated past the seals into the swivel while boring.
| Working Load | A | B | C | D | E | F | ||
| Tension | Compression | |||||||
| Part Number | (LBS) | (LBS) | (IN) | (IN) | (IN) | (IN) | (IN) | (IN) |
| 08190408 | 1,800 | 595 | 7/8 | .38 | 4.83 | 1.03 | .31 | .53 |
| 08190412 | 4,000 | 1,300 | 1-1/4 | .56 | 6.57 | 1.34 | .37 | .59 |
| 08190416 | 8,500 | 2,800 | 1-5/8 | .63 | 7.22 | 1.59 | .56 | .78 |
| 08190420 | 10,000 | 3,300 | 2 | .75 | 8.29 | 1.77 | .63 | .71 |
| 08190425 | 20,000 | 6,600 | 2-1/2 | 1.00 | 11.44 | 2.79 | .88 | 1.23 |
| 08190430 | 30,000 | 10,000 | 3 | 1.31 | 13.27 | 3.56 | 1.13 | 1.37 |
