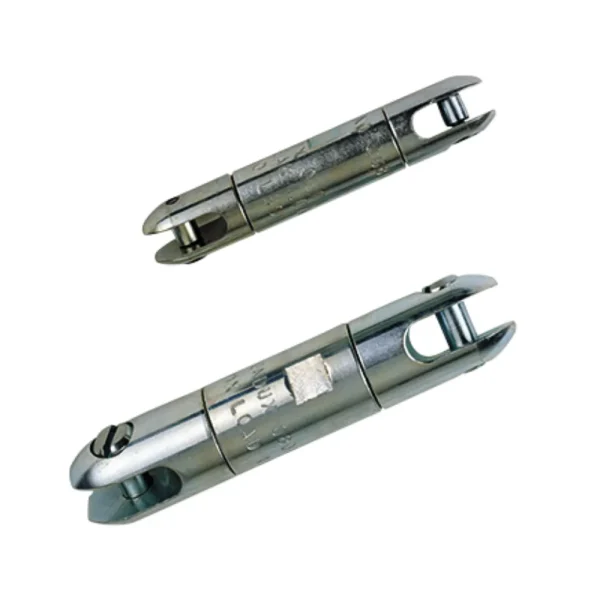

Condux Break-Away Swivel
Designed for fiber optic and coaxial cable pulling, these swivels feature a break load capacity ranging from 150 to 1,800 pounds (667 to 8,006 N). They are engineered to disconnect at approximately ±10% of their rated break load. If the load exceeds the limit, the internal break pin will fracture, causing the swivel to separate, while keeping the cable safe and undamaged.
Break-Away Swivel Dimensions:
NOTE: Swivels are not designed to run around bullwheels.
|
A |
B |
C |
D |
E |
F |
||||||
|
(lbs) |
(N) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
|
5/8″ |
16 |
.28 |
7 |
3.56 |
90 |
.79 |
20 |
.25 |
6 |
.37 |
9 |
|
7/8″ |
22 |
.38 |
10 |
4.51 |
115 |
1.06 |
27 |
.31 |
8 |
.53 |
13 |
|
Part |
Break |
Load |
|||||||||
|
Number |
(lbs) |
(N) |
|||||||||
|
5/8″ Swivel (16 mm) |
|||||||||||
|
08017300 |
200 |
890 |
|||||||||
|
08017400 |
250 |
1,112 |
|||||||||
|
08017800 |
300 |
1,334 |
|||||||||
|
08016900 |
450 |
2,002 |
|||||||||
|
08017200 |
600 |
2,669 |
|||||||||
|
08017500 |
650 |
2,891 |
|||||||||
|
08017900 |
750 |
3,336 |
|||||||||
|
7/8″ Swivel (22 mm) |
|||||||||||
|
08018100 |
150 |
667 |
|||||||||
|
08018300 |
200 |
890 |
|||||||||
|
08018000 |
250 |
1,112 |
|||||||||
|
08017600 |
300 |
1,334 |
|||||||||
|
08018400 |
350 |
1,557 |
|||||||||
|
08075300 |
400 |
1,779 |
|||||||||
|
08015800 |
450 |
2,002 |
|||||||||
|
08076500 |
500 |
2,224 |
|||||||||
|
08018500 |
550 |
2,446 |
|||||||||
|
08015000 |
600 |
2,669 |
|||||||||
|
08018600 |
650 |
2,891 |
|||||||||
|
08076000 |
700 |
3,114 |
|||||||||
|
08075500 |
750 |
3,336 |
|||||||||
|
08018700 |
800 |
3,558 |
|||||||||
|
08018800 |
850 |
3,781 |
|||||||||
|
08076600 |
900 |
4,003 |
|||||||||
|
08015700 |
1,000 |
4,448 |
|||||||||
|
08018900 |
1,100 |
4,893 |
|||||||||
|
08015200 |
1,200 |
5,338 |
|||||||||
|
08019100 |
1,300 |
5,782 |
|||||||||
|
08074600 |
1,400 |
6,227 |
|||||||||
|
08076900 |
1,500 |
6,672 |
|||||||||
|
08019200 |
1,600 |
7,117 |
|||||||||
|
08019300 |
1,700 |
7,562 |
|||||||||
|
08017700 |
1,800 |
8,006 |
| PULLING EYE SIZE RANGE | PULLING HARNESS | |||||
| Swivel Part Number | Swivel Size (in) (mm) | Standard Head Reusable Power Pulling Eyes Cable Size (Page 75) | Fixed Head Innerduct Pulling Eyes Part Number (Page 72) | Eye To Eye Connectors Size Part Number (Page 53) | Seperate Leg Ends (Page 53) | Large Front Link Size Part Number (Page 53) |
| 08017000 | 5/8 (16) | – | – | – | 1/8, 1/4 | – |
| 08016000 | 7/8 (22) | 1/0-4/0 AWG | – | – | 1/8, 1/4 | – |
| 08080912 | 1 1/4 (32) | All | 08914110, 08914120, 08914130, 08914140 | (3/8″) 08050300 (1/2″) 08050500 | All | (1/8″ – 08549200) (1/4″ – 08549230, 08549325, 08569910, 08549326) (1/2″ – 08549331) |
| 08080913 | 1 3/8 (35) | All | 08914110, 08914120, 08914130, 08914140 | (3/8″) 08050300 | All | (1/8″ – 08549200) (1/4″ – 08549230, 08549325, 08569910, 08549326) (1/2″ – 08549331) |
| 08080916 | 1 5/8 (41) | 250 – 2,500 kcmil | – | (3/8″) 08050300 (1/2″) 08050500 | All | (1/8″ – 08549200) (1/4″ – 08549230, 08549325, 08569910, 08549326) (1/2″ – 08549331) |
| 08080920 | 2 (51) | 250 – 2,500 kcmil | – | All | All | (1/8″ – 08549200) (1/4″ – 08549230, 08549325, 08569910, 08549326) (1/2″ – 08549331) |
| 08080925 | 2 1/2 (64) | – | – | (1/2″) 08050500 (5/8″) 08050501 | All Cables | All |
| 08080930 | 3 (76) | – | – | (1/2″) 08050500 (5/8″) 08050501 | All Cables | All |
| 08210007 | 7/8 (22) | – | – | – | 1/8, 1/4 | – |
| 08210012 | 1 1/4 (32) | All | All | 3/8″) 08050300 (1/2″) 08050500 | All | (1/8″ – 08549200) (1/4″ – 08549230, 08549325, 08569910, 08549326) (1/2″ – 08549331) |
| 08210014 | 1 7/16 (37) | All | 08914110, 08914120, 08914130, 08914140, 08914150, 08914160 | (3/8″) 08050300 (1/2″) 08050500 | All | (1/8″ – 08549200) (1/4″ – 08549230, 08549325, 08569910, 08549326) (1/2″ – 08549331) |
| 08210018 | 1 7/8 (48) | 250 – 2,500 kcmil | – | All | All | (1/8″ – 08549200) (1/4″ – 08549230, 08549325, 08569910, 08549326) (3/8″ – 08549333, 08549329) (1/2″ – 08549331) |
The 10% tolerance zone for pins used in 5/8″ (16mm) and 7/8″ (22mm) diameter break away swivels is +/- 5% of the nominal break load, called out along with the swivel diameter, in the description of the pin. For pins used in 1-1/4″ (32mm) diameter or larger break away swivels, this zone shits to +8% / -2%.
NOTE: Swivels are not designed to run around bullwheels.
