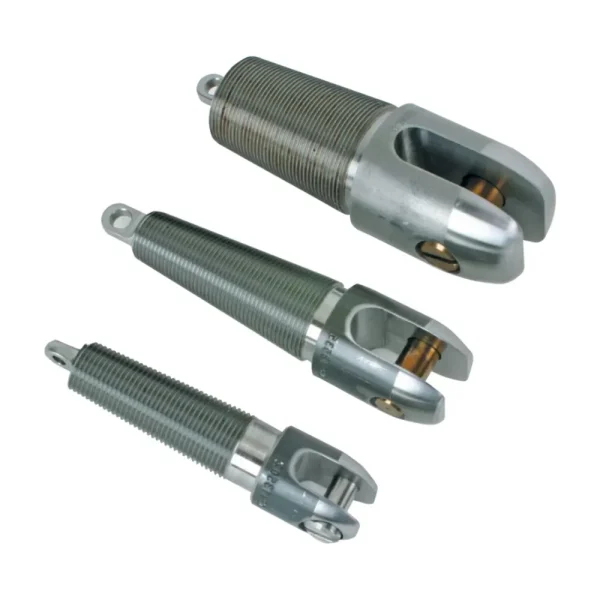

Condux Clevis Head Innerduct Pulling Eye
The Condux Clevis Head Innerduct Pulling Eye features tapered threads similar to standard innerduct pulling eyes, with a slotted head and clevis pin for direct attachment to any Condux multiple pulling harness leg ends. When correctly sized and installed, these pulling eyes provide secure attachment to the innerduct, preventing pullout until pulling tensions far exceed the recommended limits by the innerduct manufacturers.
Replacement Clevis Pins for Clevis Head Innerduct Pulling Eyes:
|
Part Number |
Replace Part Number |
| 08914310 | 08081046 |
| 08914320 | 08081036 |
| 08914330 | 08210135 |
| 08914340 | 08081016 |
| 08914350 | 08081016 |
| 08914360 | 08081006 |
To determine correct pulling eye size, obtain the actual innerduct inside diameter (I.D.) The I.D. measurement must be greater than dimension A and smaller than dimension B.
| Part Number | Nominal Size | Innerduct I.D. Range | Max O.D. | Hole Dia. | Slot Width | Slot Depth | Pin Dia. | Pin Center | ||||||||
| C | D | E | F | G | H | |||||||||||
| (in) | (mm) | A-B (in) | A-B (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | |
| 08914310* | 3/4 | 19 | .71-.87 | 18-22 | 1.25 |
32 |
.25 | 6 | .56 | 14 | 1.34 | 34 | .38 | 10 | .59 | 15 |
| 08914320* | 1 | 25 | .93-1.06 | 24-27 | 1.38 | 35 | .25 | 6 | .56 | 14 | 1.34 | 34 | .44 | 11 | .56 | 14 |
| 08914330* | 1 1/4 | 32 | 1.06-1.43 | 27-37 | 1.75 | 44 | .38 | 10 | .75 | 19 | 1.78 | 45 | .63 | 16 | .81 | 21 |
| 08914340* | 1 1/2 | 38 | 1.37-1.68 | 35-43 | 2.00 | 51 | .38 | 10 | .75 | 19 | 1.78 | 45 | .63 | 16 | .72 | 18 |
| 08914350* | 1 3/4 | 44 | 1.68-1.81 | 43-46 | 2.25 | 57 | .38 | 10 | .75 | 19 | 1.78 | 45 | .63 | 16 | .72 | 18 |
| 08914360** | 2 | 51 | 1.93-2.12 | 49-54 | 2.50 | 62 | .38 | 10 | .75 | 19 | 2.50 | 62 | .88 | 22 | 1.23 | 31 |
*Will fit all Condux pulling harnesses.
**Will fit the Condux 3/8″ and 1/2″ cable pulling harnesses.
Compatibility Chart:
Use the chart to determine what innerduct pulling eyes work with the different size innerduct ranges, innerduct SDR ratings, swivels, pulling harnesses and threaded chain connectors.
| Innerduct Range | Compatibility | ||||||||
| Innerduct Eye Part No. | Innerduct I.D. Range |
3/4″ Rating |
1.00″ Rating |
1.25″ Rating |
1.50″ Rating |
2.00″ Rating |
Swivel Part No. | Pulling Harness Legs | Threaded Chain connectors |
| 08914310 | .71-.87 |
SDR11 SDR13.5 |
ALL | ||||||
| 08914320 | .93-1.06 |
SDR7 SDR9 |
ALL | ||||||
| 08914330 | 1.06-1.43 |
SDR13.5 SDR17 SDR21 |
SDR7 SDR9 SDR11 SDR13.5 |
SDR7 | ALL | ||||
| 08914340 | 1.37-1.68 |
SDR13.5 SDR15.5 SDR17 SDR21 |
SDR9 SDR11 SDR13.5 SDR15.5 |
ALL | |||||
| 08914350 | 1.68-1.81 | SDR21 | SDR7 | ALL | |||||
| 18914360 | 1.93-2.12 |
SDR11 SDR13.5 SDR15.5 SDR17 |
ALL | ||||||
