Availability: 8 in stock

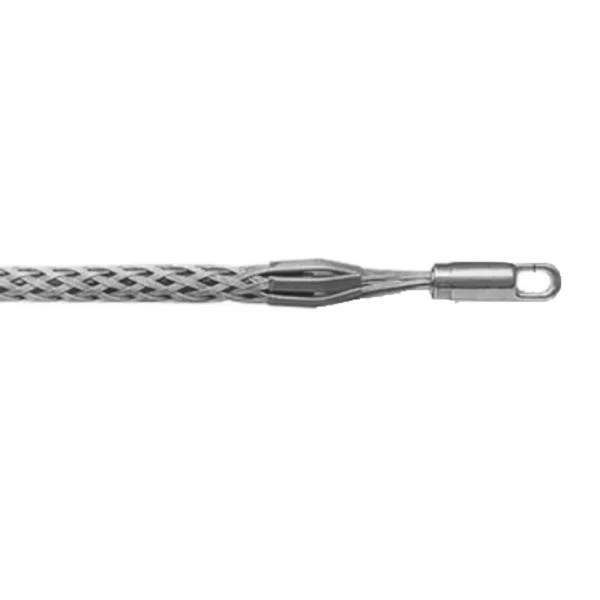

The Condux Multiple Strength Cable Grip with Rotating Eye is designed for use in pulling ACSR, aluminum, copper bare conductor, ground wires, messenger strands, wire rope, and insulated cables. These grips are ideal for overhead transmission and distribution line stringing, where moderate loads are expected. They provide a cost-effective solution for attaching conductors to pulling lines and can also be used for double socking conductor-to-conductor connections.
| Part # | Description | Color |
Cable Diameter (in) |
Approximate Breaking Strength (lbs) |
E (in) |
M (in) |
OD Rotate Eye (in) |
Thickness of Eye (in) |
| CX08641813 | 033-02-016 | Dark Green | .25-.49 | 6,800 | 5 | 26 | 7/8 | .315 |
| CX08641822 | 033-02-018 | Brown | .50-.74 | 10,000 | 5 | 25 | 1 | .524 |
| CX08641831 | 033-02-020 | Light Blue | .75-.99 | 14,400 | 6 | 25 | 1 | .513 |
*Rotating Eye is not a swivel. It will not turn while under tension, but it can turn to relieve pulling torque when the tension is relaxed.
