Availability: 5 in stock

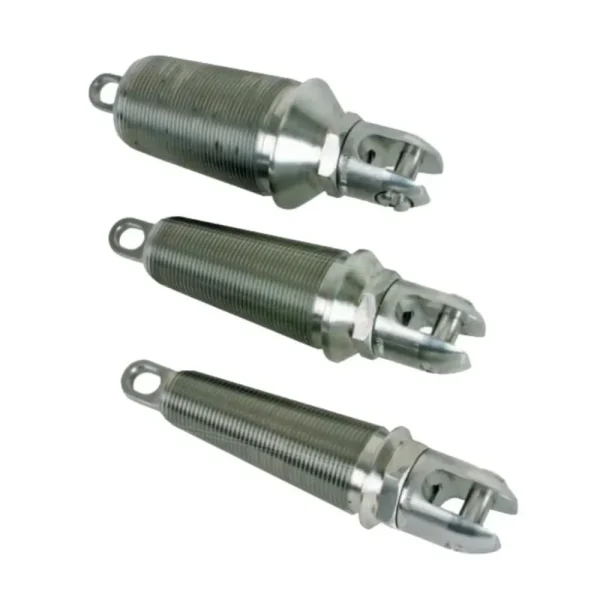

Condux Swivel Head Innerduct Pulling Eye

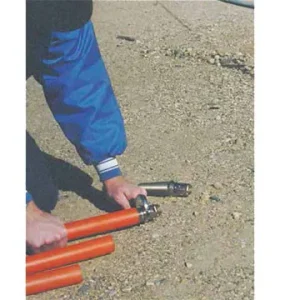

The Condux Swivel Head Innerduct Pulling Eye is a versatile tool that combines the functionality of both innerduct pulling eyes and swivels. Its swivel head reduces twisting and binding during installation, making it ideal for installing single or multiple innerducts into conduits. By integrating the swivel directly into the pulling eye, it eliminates the need for separate swivels, providing a streamlined solution. The compact design offers an advantage in tight bends, compared to using separate tools. Installation is quick and easy with a 13⁄8″ deep socket or adjustable wrench.
Note: To determine correct pulling eye size, obtain the actual innerduct inside diameter (I.D.) The I.D. measurement must be greater than dimension A and smaller than dimension B.
Replacement Clevis Pins for Swivel Head Innerduct Pulling Eyes:
| Part Number | Replacement Part Number |
| 08960712 | 08081036 |
| 08960715 | 08081036 |
| 08960720 | 08081036 |
|
Part Number |
Nominal Size |
Innerduct I.D. Range | Max O.D. | Hole Dia | Slot Width | Slot Depth | Pin Dia. | Pin Center | ||||||||
| A-B | A-B | C | D | E | F | G | H | |||||||||
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | |
| 08960712* | 1 – 1/4 | 25-32 | 1.06 – 1.43 | 27-37 | 1.75 | 44 | .44 | 11 | .56 | 14 | 1.31 | .33 | .44 | 11 | .56 | 14 |
| 08960715* | 1 1/5 | 38 | 1.37 – 1.68 | 35-43 | 2.00 | 51 | .44 | 11 | .56 | 14 | 1.31 | .33 | .44 | 11 | .56 | 14 |
| 08960720* | 2 | 51 | 1.93 – 2.12 | 49-54 | 2.44 | 62 | .44 | 11 | .56 | 14 | 1.31 | .33 | .44 | 11 | .56 | 14 |
*Will fit all Condux pulling harnesses
| Innerduct Range | Compatibility | ||||||||
|
Innerduct |
Innerduct |
3/4″ |
1.00″ |
1.25″ |
1.50″ |
2.00″ |
Swivel |
Pulling |
Threaded |
| 08960712 | 1.06-1.43 |
SDR 13.5 |
SDR 7 |
SDR 7 | ALL | ||||
| 08960715 | 1.37-1.68 | SDR 13.5 SDR 15.5 SDR 17 SDR 21 |
SDR 9 |
ALL | |||||
| 08960720 | 1.93-2.12 |
SDR 11 |
ALL | ||||||
