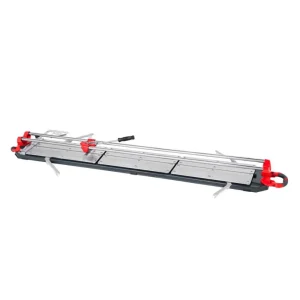

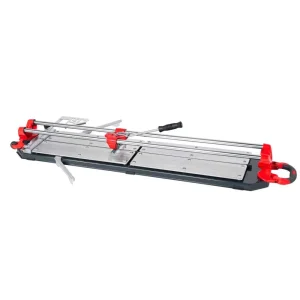

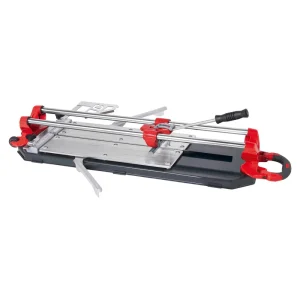

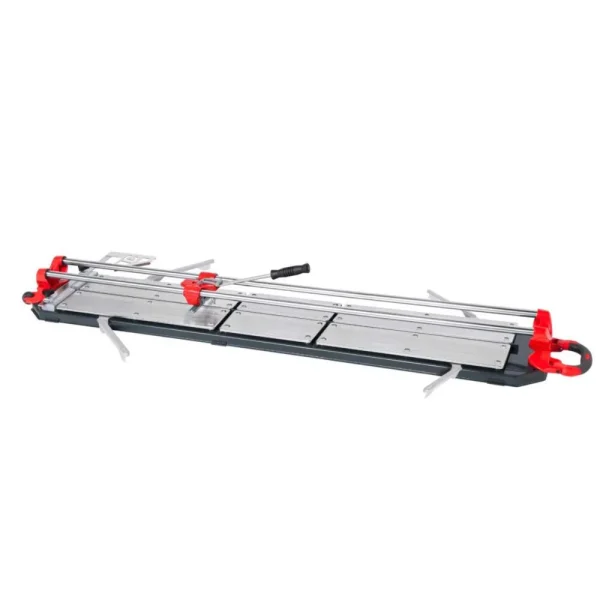

Cortag Mega Manual Tile Cutters
The Mega Manual Tile Cutters line has been designed to meet various cutting demands for ceramic tiles and porcelain.
Features
- Please note that the 70″ model (MPN 62189) must ship LTL Freight
- Cutting capacity: up to 9/16″ thickness and 70″ length
- 1-ton separation force, more comfort and less effort
- One-touch return to the scoring position
- Sturdier guides, screwed onto the support, increasing machine rigidity
- Tungsten carbide cutting wheel with zinc-plated alloy shaft
- Aluminum side support provides greater stability when cutting large-format tiles
- Side limiter for precise straight and diagonal cuts
- Aluminum guide support
- Wheels and handle for easy handling and transportation of the equipment
What’s Included?
- (1) 9/32″x 4″ | 7 x 100 mm Universal Code scoring wheel
- (1) 3/4″ x 3.5/8″ | 18 X 90 mm Universal Titanium scoring wheel
- (1) Cover Bag
- (2) 1″ fully solid thick guide
| Cortag Mega Manual Tile Cutters |
| Model |
62185 |
62186 |
62187 |
62188 |
62189 |
| Length of Cut |
30 in |
36 in |
49 in |
61 in |
70 in |
| Diagonally Cut |
21 x 21 in |
25 x 25 in |
35 x 35 in |
43 x 43 in |
50 x 50 in |
| Max Cutting Thickness |
9/16″ |
9/16″ |
9/16″ |
9/16″ |
9/16″ |
