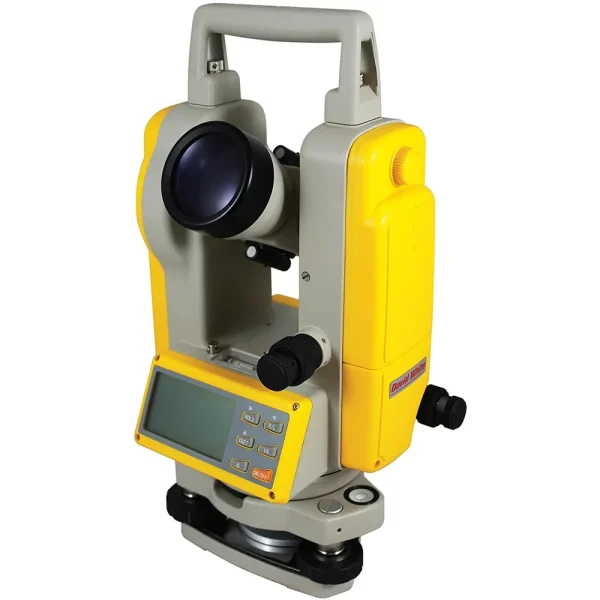

David White 5-Second Optical Sight Digital Theodolite with Laser Plummet (46-D8896)
David White Theodolite Model Number: DT8-05LP
David White 44-8896 Theodolite FEATURES:
- The DT8-05LP has a laser beam built into aperture for easy and accurate alignment. Simple, push button functions gives the user precise LCD digital readouts.
- Incremental encoding detection system with dual digital displays
- Automatic power shut-off
- Laser plummet for centering of point
- Coaxial tangent and clamp screws provide ease of use in sighting and alignment
- Built-in battery pack can be attached and detached by a single action
- Water resistant, sealed construction
David White DT8-05LP SPECIFICATIONS:
- Telescope:
- Objective aperture: 1.77 in (45 mm)
- Magnification: 30X
- Image: Erect
- Field of view: 1° 30′
- Resolution: 3”
- Minimum focus: 53 in (1.3 m)
- Stadia constant: 1
- Electronic Angle Measurement:
- Angle measurement: Absolute Encoding
- Minimum reading: 1” / 5”
- Direction method: H. Both sides, V. Single side
- Accuracy: 5”
- Unit of angle: Deg / mil / gon / V%
- Display: LCD both sides
- Tilt Sensor:
- Automatic Compensation: Yes
- Range of Compensation: +/-3’
- Level Vial Sensitivity:
- Plate vial: 30” per 2 mm
- Circular vial: 8’ per 2 mm
- Other:
- Operating voltage, typical: 4.8 VDC
- Batteries: 4 x 1.5V (AA)/Rechargeable Ni-MH
- Operating Temperature range: -4 °F to +122 °F (-20 °C to +50 °C)
- Waterproof class: IP 54
- Weight: 10.2 lb (4.6 kg)
- Dimensions: 6.5 x 6.1 x 13.4 in (164 x 154 x 340 mm)
David White DT8-05LP Theodolite INCLUDES:
- DT8-05LP Digital Theodolite with Optica Sight and Laser Plummet
- Sunshade
- Tool kit
- Rain cover
- Plumb bob
- Carrying case
- Rechargeable battery pack/charger
- Alkaline battery tray
- User manual
