David White 44-8834-1C 22-Power MERIDIAN TRANSIT-LEVEL PACKAGE

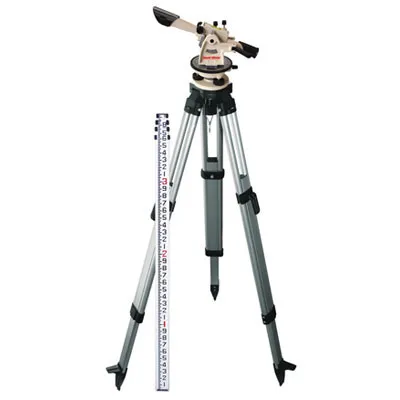

includes: Measuring Rod with measurements in feet, inches and 8ths and Aluminum Tripod
Modestly priced and easy to use, these instruments are designed for light construction work
for leveling, turning angles, and determining vertical angles.
- ± 1/4-inch at 100-feet leveling accuracy
- Up-to 200-foot range
- Horizontal Circle– Graduated to single degrees and reads by vernier direct to 1/4 degree (15 minutes)
- Features a Vertical Arc– Read to degrees (0-45º)
- Horizontal Lock and Tangent Screw– Provides precise movement control
- Built-in Sunshade – For clearer sightings
- Leveling Vial – Top mounted for effortless viewing
|
| David White 44-8834-1C MERIDIAN TRANSIT-LEVEL INCLUDES |

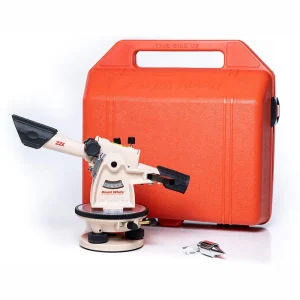

- 44-8834 (LT6-900) Transit-Level Instrument
- Measuring Grade Rod : Aluminum 13-foot with measurements in feet, inches and 8ths
- Aluminum Tripod
- PlumbBob
- Heavy-Duty Hard CarryingCase
- Owners Manual
- 2-Year Warranty
|
| David White 44-8834-1C Transit-Level SPECIFICATIONS |
Accuracy: 1/4 in at 100 ft
Range: Up to 200 ft
Telescope
- Magnification: 22-power
- Length: 10.5-inch
- Minimum Focus: 4 ft (1.2 m)
- Aperture: 0.75-inch
- Field of View: 2-feet @ 100-foot
- No. of Lenses: 6
Horizontal Circle
- Graduation Diameter: 3.62-inch
- Graduations: Each 1°
- Numbers: Each 10°, 0-90-0°
- Vernier: Double direct to 15 min.
Vertical Arc
- Graduations: Each 1°
- Numbers: Each 10°, 45-0-45°
Other
- Center: Planar bearing
- Level Vial: 10 min. per 2 mm
- Weight: 4.5 lbs
|

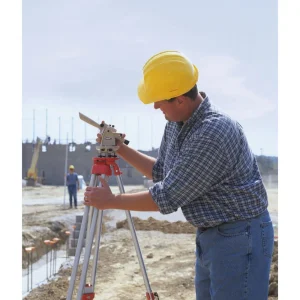

David White 44-8834-2 Transit-Level APPLICATIONS
|
- Short range leveling
- Turning angles, establishing 90° reference lines
- Determine vertical angles, basic grade work
- Checking angles, alignment and plumb
- Anchor bolt alignment
- Gravity flow pipe laser set-up
- Aligning Forms
- Aligning Walls
|
| David White 44-8834-1C Transit-Level TECHNICAL DATA |
| RANGE |
Up to 200 feet |
| ACCURACY |
1⁄4-inch at 100 feet |
| TELESCOPE |
| MAGNIFICATION |
22-POWER |
LENGTH
|
10.5-inch |
MINIMUM FOCUS
|
4-foot
|
| APERTURE |
0.75-inch |
FIELD OF VIEW
|
2-foot at 100 feet |
NUMBER OF LENSES
|
6 |
|
| HORIZONTAL CIRCLE |
| GRADUATION DIAMETER |
3.62-inch |
| GRADUATIONS |
Each 1° |
| NUMBERS |
Each 10°, 0-90-0° |
| VERNIER |
Double direct to 15 min. |
VERTICAL ARC
|
| GRADUATIONS |
Each 1° |
| NUMBERS |
Each 10°, 45-0-45° |
| CENTER |
| TYPE |
Planar bearing
|
LEVEL VIAL
|
| ACCURACY |
10 min. per 2 mm |
| WEIGHT |
| INSTRUMENT ONLY |
4.5 pounds |
| TRIPOD |
| TYPE |
5/8-11 thread |
|

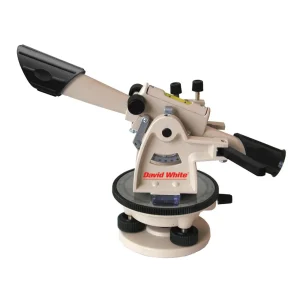

| David White Meridian Level-Transit FEATURES |
- TELESCOPE OBJECTIVE LENS
- EYEPIECE
- FOCUSING KNOBS
- INSTRUMENT LEVEL VIAL
- HORIZONTAL GRADUATED CIRCLE
- HORIZONTAL VERNIER
- HORIZONTAL CLAMP
- HORIZONTAL TANGENT
- TELESCOPE LOCK LEVER
- VERTICAL ARC
- VERTICAL ARC POINTER
- VERTICAL CLAMP
- VERTICAL TANGENT
- THREE LEVELING SCREWS
- 5/8-11 THREADED BASE
- BUBBLE LEVEL ADJUSTMENT SCREW
|
|
