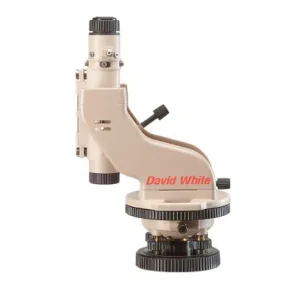

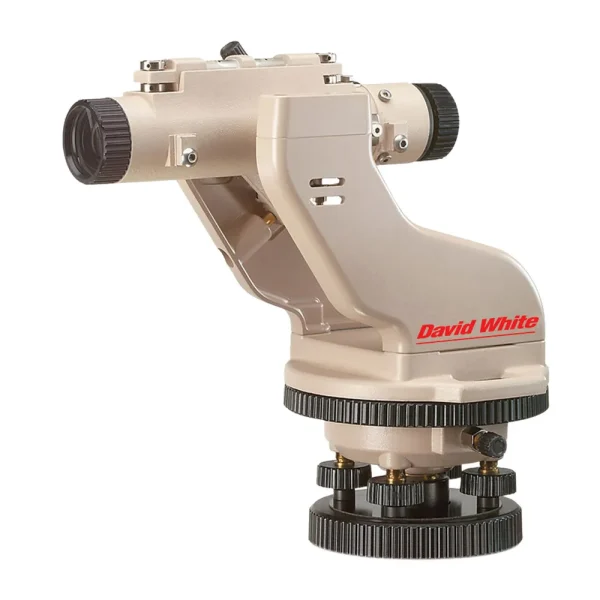

The David White LT8-300LTU is versatile and ideal for use with pipe aligning laser or as a level-transit. The 360 degree telescope design allows direct sight below the instrument for pipe laying applications.
- Powerful 26X Optics
- Accuracy ±3/16-inch at 150-foot
- Range up-to 400-foot
- Laser plummet for quick and easy set-up
- Horizontal Circle with lock
- Glass reticle with stadia lines for measuring distance (ratio 1:100)
- Plate vial for rough leveling and general plummeting requirements
- Solid 3-piece standards are engineered to protect against dirt, damage and costly repairs
- Wide center ball bearing center assures smooth movement and alignment control
- Top mounted level vial makes setup easy and accurate
- Focus knob is easy to reach no matter what angle you are viewing
- Level transit is lined up over a reference point by using a standard plumb bob
|
| David White 46-D8879 Line Transfer Unit INCLUDES |
- 46-D8879 (LT8-300LTU) Line Transfer Instrument with laser plummet
- Rain Hood
- Objective Lens
- Heavy-Duty Hard Carrying Case
- Owners Manual
- 2-Year Warranty
|
| David White 46-D8879 Line Transfer Unit SPECIFICATIONS |
- 26-power magnification
- ±3/16-inch at 150-foot leveling accuracy
- Up to 400-foot range
- Horizontal circle, lock and tangent
- Vertical arc, lock and tangent
- 1:100 stadia with glass reticle
- Weight (Instrument Only): 9.5 lbs
- Warranty: 2-Years
|
David White 46-D8879 Line Transfer Unit APPLICATIONS
|
- Measuring angles, establishing 90° reference lines
- Anchor bolt alignment
- Gravity flow pipe laser set-up
- Aligning forms
- Aligning walls
|
| David White 46-D8879 Line Transfer Unit TECHNICAL DATA |
| RANGE |
Up to 400 feet |
| ACCURACY |
3⁄16-inch at 150 feet |
| TELESCOPE |
| LENGTH |
8-1/2 inches |
| MINIMUM FOCUS |
6-feet |
| APERTURE |
1.257 inch |
| POWER |
26X |
FIELD OF VIEW
|
1 foot 9-inch at 100 feet |
NUMBER OF LENSES
|
8 |
| STADIA RATIO |
1:100 |
| HORIZONTAL CIRCLE |
| GRADUATION DIAMETER |
4-5/8 inch |
| GRADUATIONS |
Each 1° |
| NUMBERS |
Each 10°, 0-90-0° |
| VERNIER |
Double direct to 5 min. |
| CENTER |
| TYPE |
Wide-stance dual row ball bearings |
LEVEL VIAL TELESCOPE
|
| ACCURACY |
120 sec. per 2 mm |
| PLATE VIAL |
| ACCURACY |
360 sec. per 2.5 mm |
| WEIGHT |
| INSTRUMENT ONLY |
9.5 pounds |
| TRIPOD |
| TYPE |
Use a heavy-duty 5/8-11 tripod |
|
| David White Universal Level Transit FEATURES |
- TELESCOPE OBJECTIVE LENS
- SIGHTING NOTCHES
- EYEPIECE
- FOCUS KNOB
- INSTRUMENT LEVEL VIAL LAYERS (2)
- HORIZONTAL CIRCLE
- HORIZONTAL CIRCLE LOCK
- HORIZONTAL VERNIER
- HORIZONTAL CLAMP
- HORIZONTAL TANGENT
- VERTICAL CLAMP
- VERTICAL TANGENT CIRCLE
- SHIFTING CENTER
- FOUR LEVEL SCREWS
- 5/8-11 BASE
- LASER PLUMMET
- PLATE LEVEL VIAL
|
|
