DTA Universal Tile Lippage Leveling System Spacers
Features
Very easy to learn and use at any skill level
Increase the speed of installation
Gun Tensions cap and spacer together
The gun can be used for walls and floors
1/16″ (1.5mm) grout joint
Universal lippage spacer dimensions: 4-1/4″ (108mm) High x 7/16″ (11mm) Wide

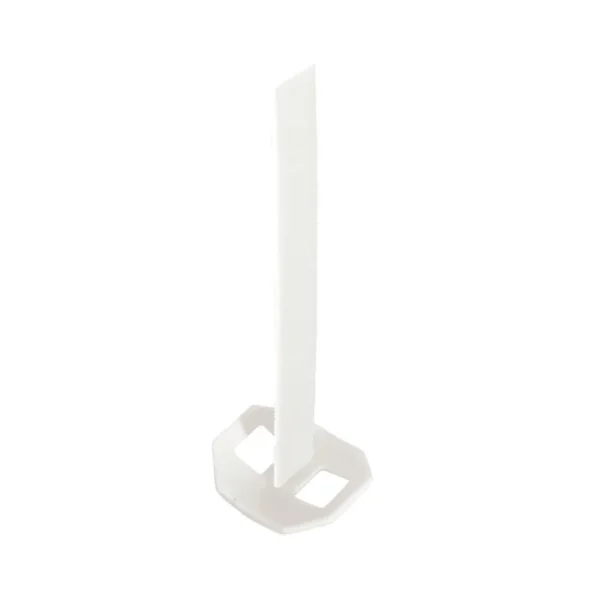

Spacers Features
Serrated on both sides
Longer spacers (pavers)
Curved base to tension different tile thickness
No soaking required
Ideals for floors and walls

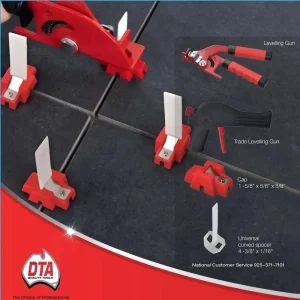

How to use the Lippage System
Place Lippage Spacer between tiles 4″ from both ends of the tile
Once the tile and spacer are in place, fasten the Lippage Cap. There is a cap release lever to allow the cap to be removed if necessary
Clamp the two pieces together, leveling the tiles using the leveling gun holding the tiles in place while the tile adhesive sets
Once the tile adhesive has dried, kick along the grout joint to remove it. Use a white rubber mallet to remove from walls. Grout to finish the tiled area
Remove Cap from Spacer for re-use
The tool is specific to this system only and can not be used on other similar
