Goof Proof Linear Drain by Mark E. Industries

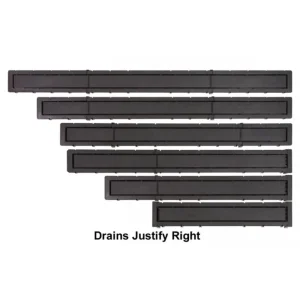

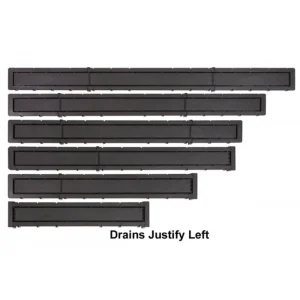

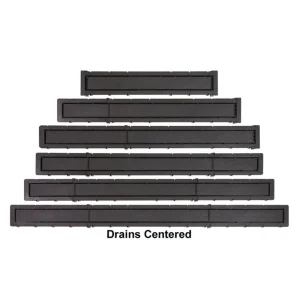

Mark E. Industries has introduced a linear drain that can be customized to 6 lengths and offers center drain or left and right offset drain options. The Goof Proof linear drain length can range from 27″ to 60″ and has a tile-on insert top for receiving matching tile for a sleek, innovative tiled shower.
Features
- It comes complete with all components for linear drain installation
- It can be used with any waterproofing method, including roll-, vinyl, and sheet membrane
- Equipped with slots that can receive the for a pitched shower pan
- It can be installed with or without a curb to create a barrier-free shower
- Linear drain must be recessed into the subfloor for either wood or concrete applications
- Multipurpose sealant cartridge is designed for use with the fabric linear drain collar
- Pipe glue is for gluing all corresponding pieces of the linear drain together and on the drain coupling

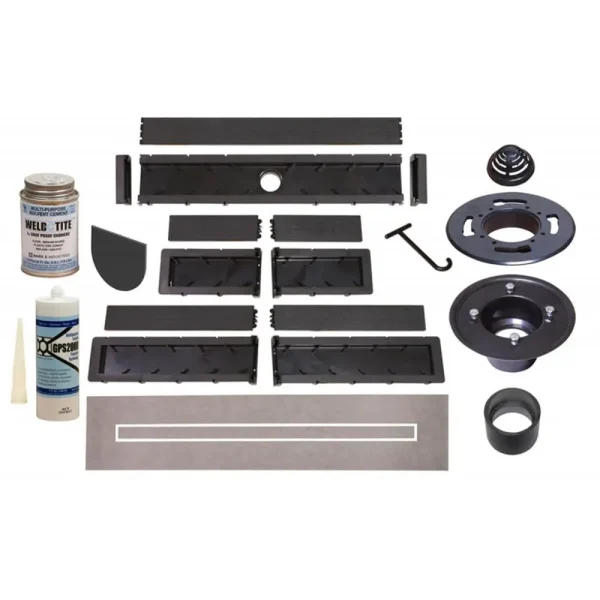

What’s Included?
- (1) Main Drain Section with Insert
- (2) End Caps
- (2) 15-1/2″ Extensions with Inserts
- (2) 9″ Extensions with Inserts
- (1) Drain Flange Assembly with non-threaded Clamping Ring
- (1) Coupling
- (1) Hair Trap
- (1) Insert Removal Tool
- (1) Disposable 1/16″ Square Notched Trowel
- (1) GPLDC-69″ x 15″ Linear Drain Collar
- (1) GPS-2000 Sealant Cartridge
- (1) GPMPSC 4 oz. Can of PVC/ABS Pipe Glue
- Installation Instructions and DVD
| Drain Lengths |
Width |
| Outer Diameter |
Inner Diameter
(Trough) |
Outer Diameter |
Inner Diameter |
| 27-3/4″ |
26″ |
5″ |
3-1/8″ |
| 36-7/8″ |
35″ |
5″ |
3-1/8″ |
| 43-7/16″ |
41-7/16″ |
5″ |
3-1/8″ |
| 46″ |
44″ |
5″ |
3-1/8″ |
| 52-1/2″ |
50-1/2″ |
5″ |
3-1/8″ |
| 59-1/16″ |
57-1/16″ |
5″ |
3-1/8″ |
