Laticrete Strata Heat 240V Spliceless Heating Wire | 83 Ft. (Linear Feet)

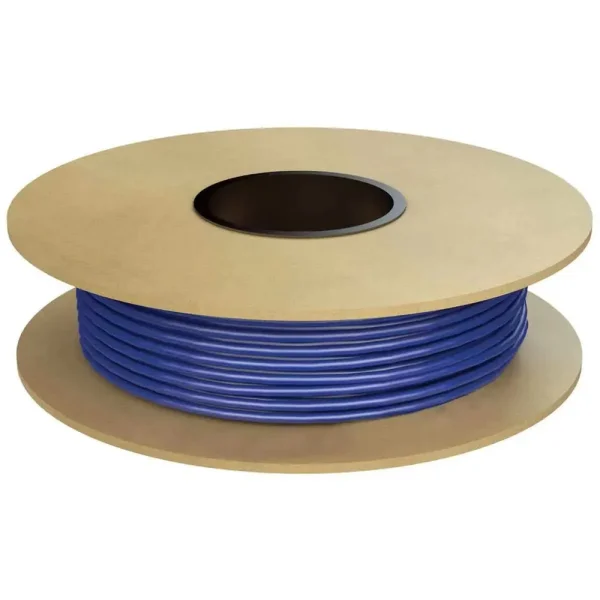

Laticrete Strata Heat 240V Spliceless Heating Wire | 83 Ft. (Linear Feet)

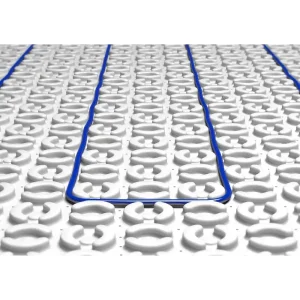

Laticrete Strata Heat 240V Spliceless Heating Wire | 83 Ft. (Linear Feet) - view 2

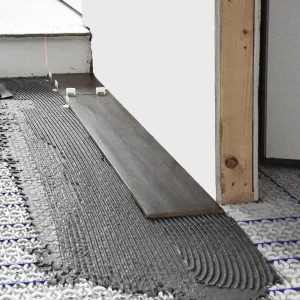

Laticrete Strata Heat 240V Spliceless Heating Wire | 83 Ft. (Linear Feet) - view 3
Underfloor Heating

Laticrete Strata Heat 240V Spliceless Heating Wire | 83 Ft. (Linear Feet)

Original price was: $212.69.Current price is: $63.81.

Availability: 6 in stock

🚚 Free Shipping over $39
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 9030-83 Ft.
CATEGORY: Underfloor Heating
Description

Laticrete Strata Heat 240V High Performance Spliceless Wire

The new and improved STRATA_HEAT System is the most advanced radiant floor heating system available in the world!

Features

  • New, high-performance spliceless wire
  • Spliceless design with ETFE inner jacket for an easier installation
  • Single diameter, burying the cold lead is no longer needed
  • Heavy duty construction, the outer jacket provides exceptional performance and durability
  • There is no minimum on a straight run length like other systems – it is easier to layout
  • Highly conductive copper wiring offers maximum heat transfer
  • Component of the Laticrete system lifetime warranty
  • Different spacing of wire allows for variable heat output that can be spread out or put closer together

Please see the conversion chart for cable in square feet below

Suitable Substrates

  • Interior Horizontal Surfaces Only
  • Hydro Ban Board
  • Concrete
  • Mortar Beds
  • Exterior Glue Plywood (interior only)
  • Existing Ceramic Tile and Stone
  • Cement Terrazzo
  • Cement Backer Board

Limitations

  • Interior floor installations only
  • Adhesives/mastic, mortars, and grouts for ceramic tile, pavers, brick and stone are not replacements for waterproofing membranes

Floor Heating Spacing

Coverage varies based on the cable’s chosen spacing pattern.

  • Standard Coverage – 17 watts per sq ft. with 3/2/3 pillar spacing on uncoupling systems

Returns

***In addition to our normal return policy, please be advised that heating wires are not eligible for return if the seal is broken and the item is not in brand-new condition.

Item Number Cable Length
(ft)		 Uncoupling Systems
3-2-3 pegs
16 W/sqft		 Uncoupling Systems
3 pegs
13 W/sqft		 Uncoupling Systems
4 pegs
10 W/sqft		 Strata_Heat Spacing Strips
3in space
13 W/sqft		 Strata_Heat Spacing Strips
4in space
10 W/sqft		 AMPS
0804-0083-4 83 ft 21 sq ft 25 sq ft 33 sq ft 21 sq ft 28 sq ft 1.4
0804-0100-4 100 ft 25 sq ft 30 sq ft 40 sq ft 25 sq ft 33 sq ft 1.6
0804-0133-4 133 ft 33.5 sq ft 40 sq ft 53 sq ft 33 sq ft 44 sq ft 2.2
0804-0166-4 166 ft 41.5 sq ft 50 sq ft 67 sq ft 42 sq ft 55 sq ft 2.7
0804-0200-4 200 ft 50 sq ft 60 sq ft 80 sq ft 50 sq ft 66 sq ft 3.3
0804-0233-4 233 ft 58.5 sq ft 70 sq ft 93 sq ft 58 sq ft 77 sq ft 3.8
0804-0266-4 266 ft 66.5 sq ft 80 sq ft 107 sq ft 66 sq ft 88 sq ft 4.4
0804-0299-4 299 ft 75 sq ft 90 sq ft 120 sq ft 75 sq ft 100 sq ft 4.9
0804-0332-4 332 ft 83.5 sq ft 100 sq ft 133 sq ft 83 sq ft 111 sq ft 5.5
0804-0415-4 415 ft 104 sq ft 125 sq ft 167 sq ft 104 sq ft 138 sq ft 6.8
0804-0498-4 498 ft 125 sq ft 150 sq ft 200 sq ft 124 sq ft 166 sq ft 8.2
0804-0581-4 581 ft 146 sq ft 175 sq ft 233 sq ft 145 sq ft 194 sq ft 9.6
0804-0664-4 664 ft 166.5 sq ft 200 sq ft 266 sq ft 166 sq ft 221 sq ft 11
0804-0747-4 747 ft 187.5 sq ft 225 sq ft 300 sq ft 187 sq ft 249 sq ft 12.3
0804-0830-4 830 ft 208.5 sq ft 250 sq ft 333 sq ft 207 sq ft 276 sq ft 13.5
